Transmission (e-CVT) Removal and Installation: Installation
The power cables carry high voltage when the electric powertrain system is energized. To avoid serious injury from electrical shock, do not turn on the system with the power cables disconnected.
The electric powertrain components are located in this area. The electric powertrain is a high-voltage system. You must be familiar with the electric powertrain system before working on or around it. Make sure you have read the electric powertrain service precautions before doing repairs or service .
NOTE:
- How to read the torque specifications .
- Use fender covers to avoid damaging painted surfaces.
- Special tool engine support hanger AAR-T-1256-J00 must be used with the side engine mount installed.
- Keep all foreign particles out of the transmission (e-CVT).
- Transfer Assembly - Install (If Necessary)

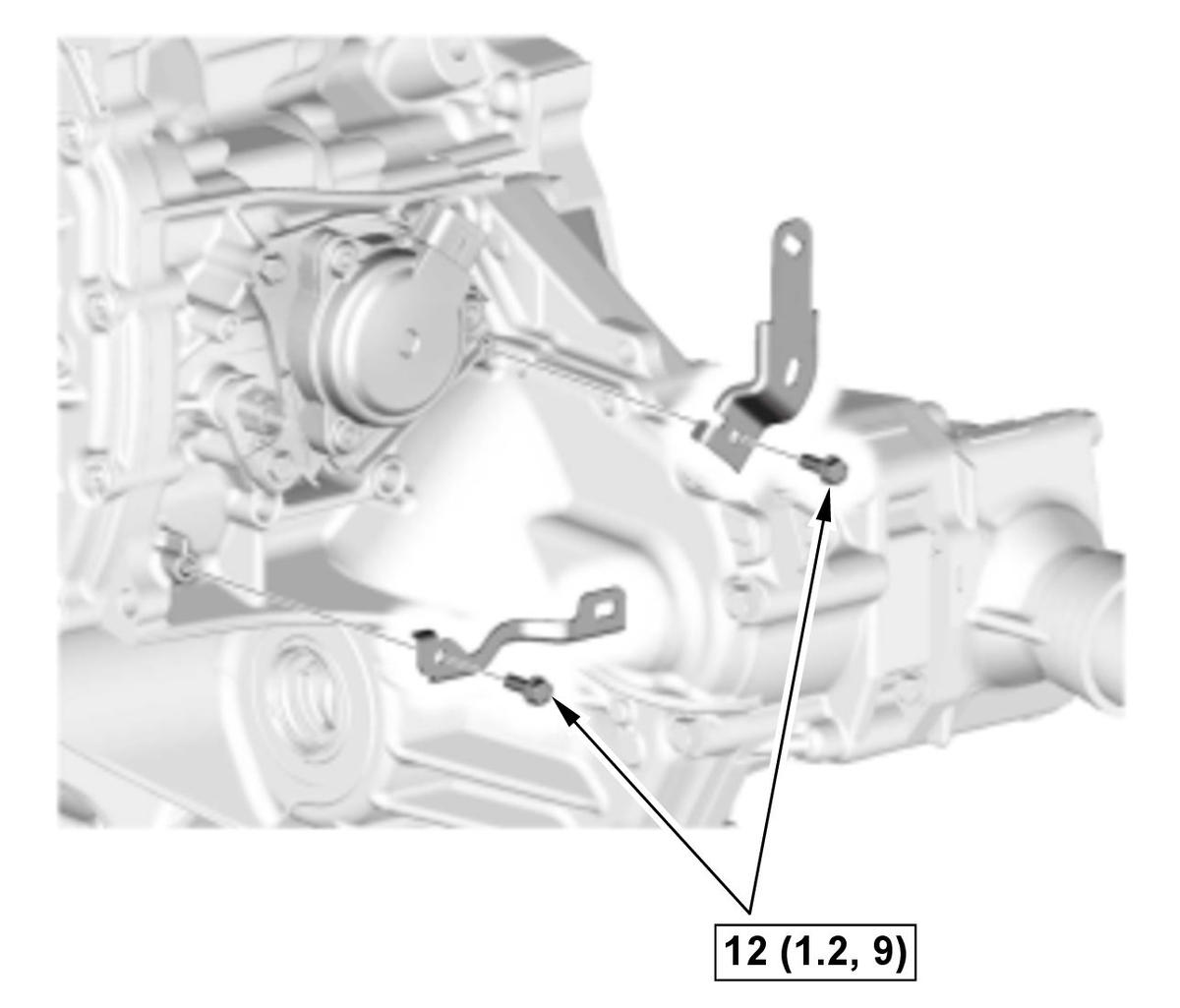

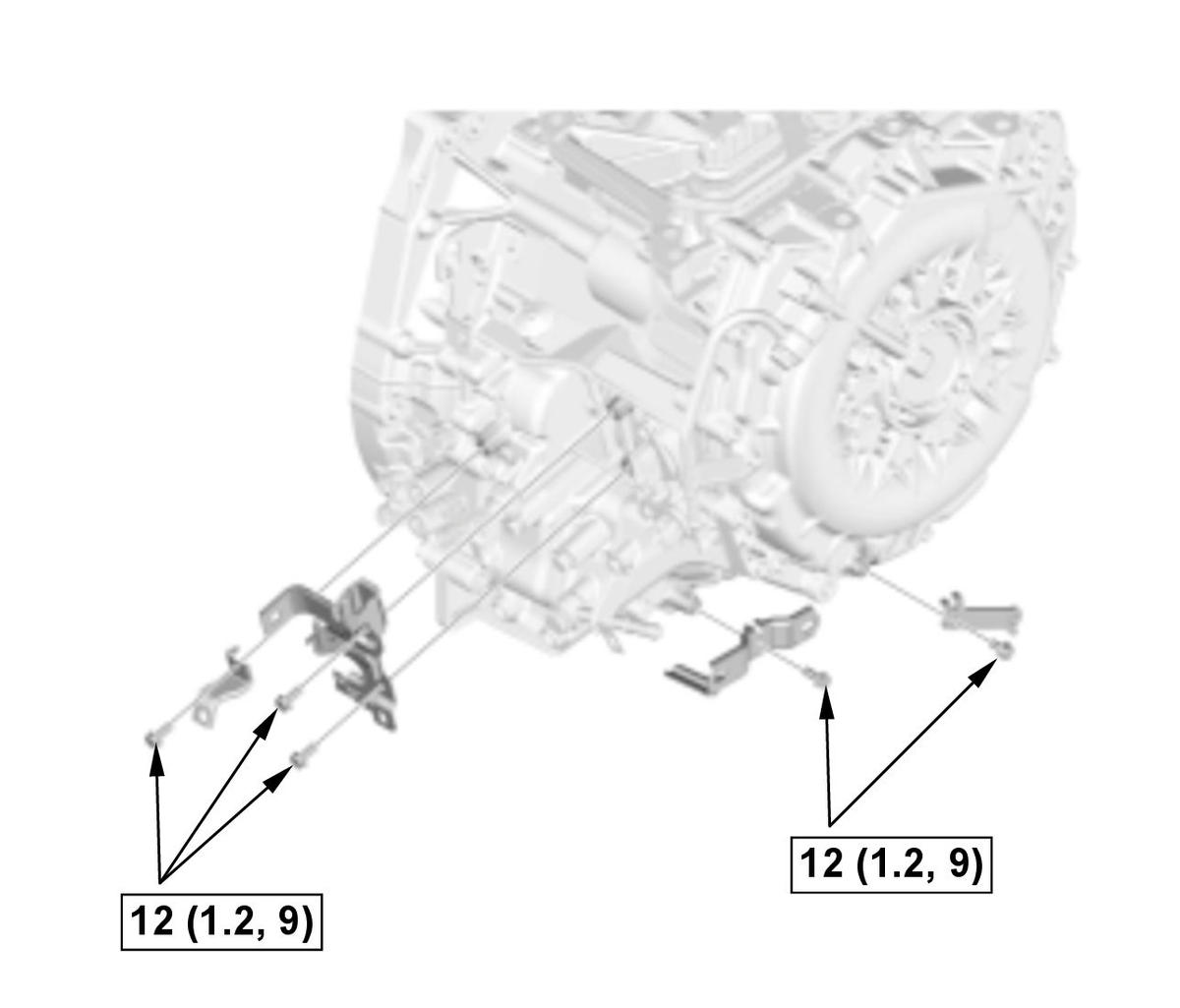

- Bracket - Install
- Dowel Pin - Install
NOTE: Refer to the Exploded View as needed during this procedure.
- Flywheel - Install

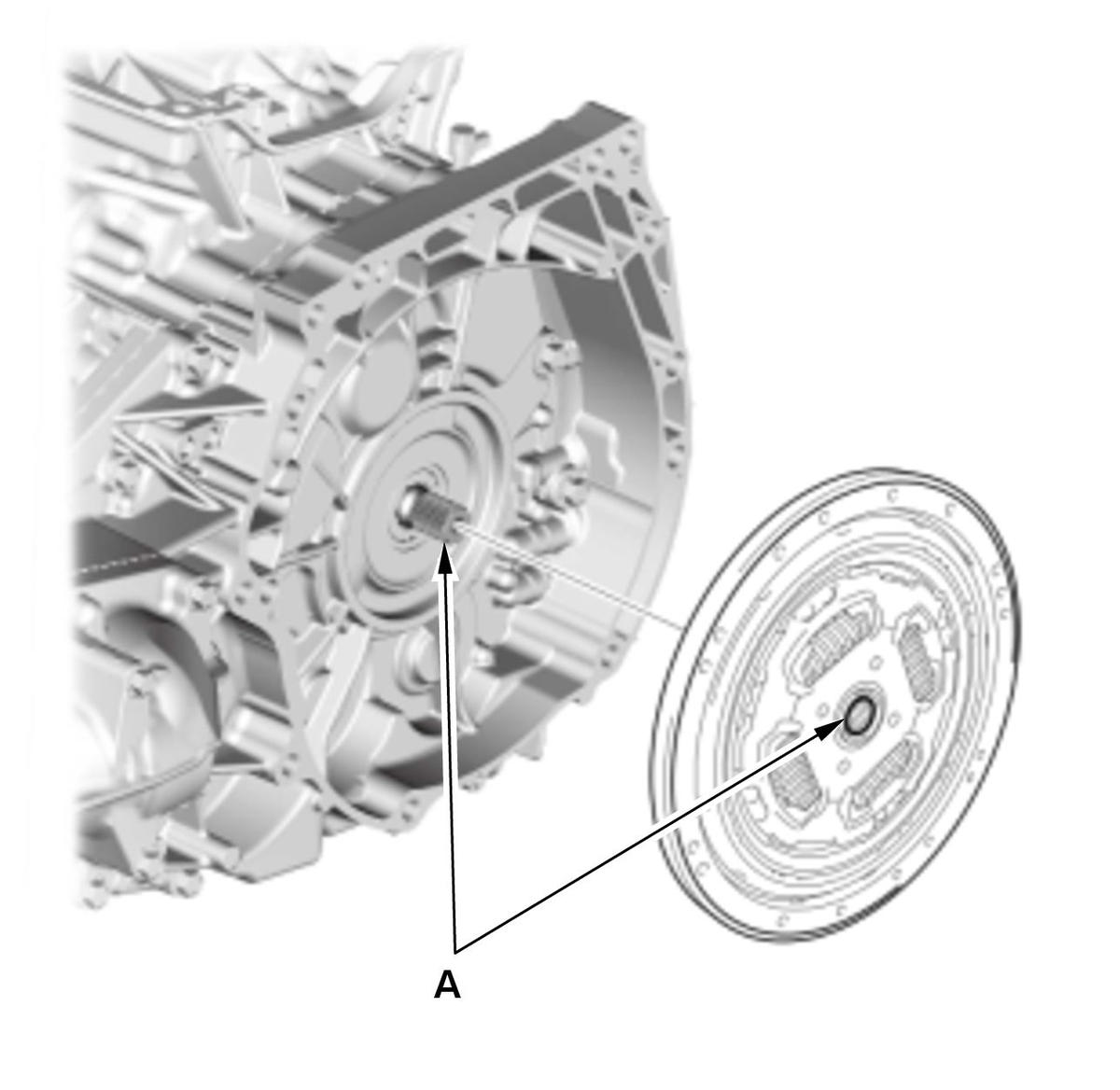

NOTE: Do not wipe off the special grease applied to the spline (A).
- Transmission (e-CVT) - Install

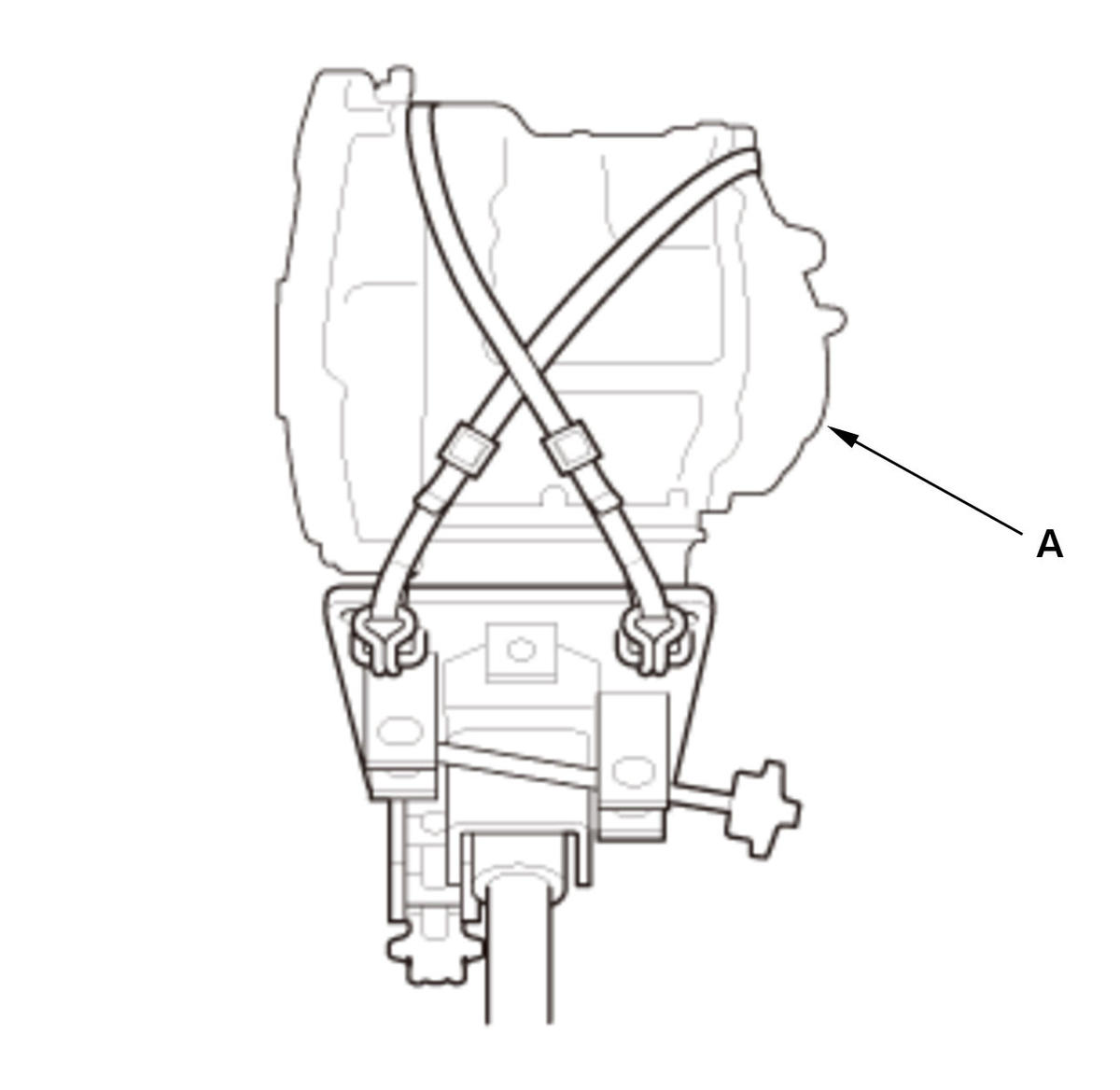

1. Place the transmission (e-CVT) (A) on a transmission jack, then raise it to the engine level. NOTE: Be careful not to drop the flywheel.
2. Attach the transmission (e-CVT) to the engine.
- Lower Transmission (e-CVT) Mounting Bolt - Install
NOTE: Refer to the Exploded View as needed during this procedure.
- Radiator Inlet Pipe A - Install
- ATF Hose (Transmission Side) - Connect

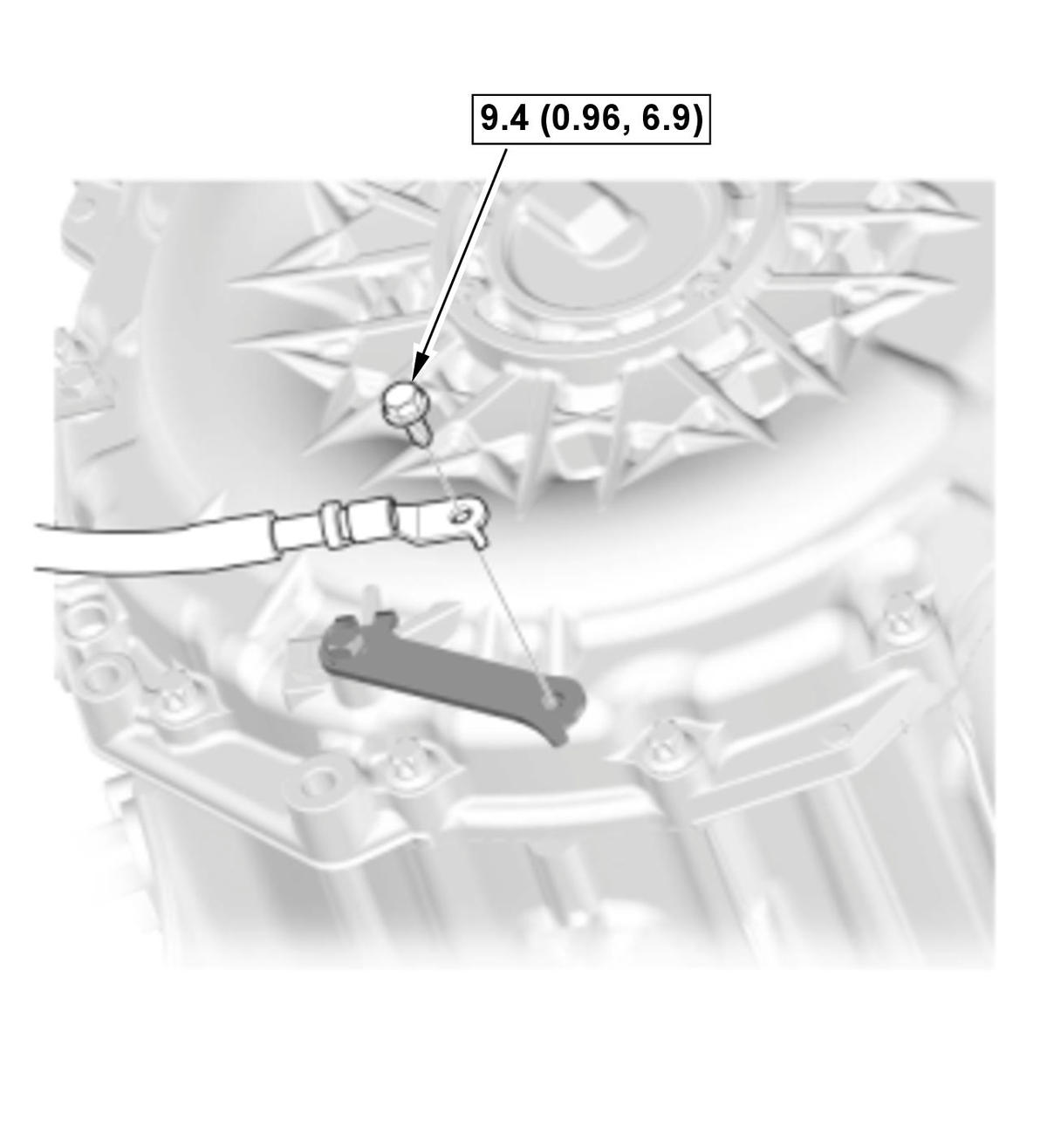

- Ground Cable - Connect
- Propeller Shaft - Install
- Intermediate Shaft - Install
- Driveshaft Inboard Joint - Connect (Both Sides)
- Front Subframe - Support

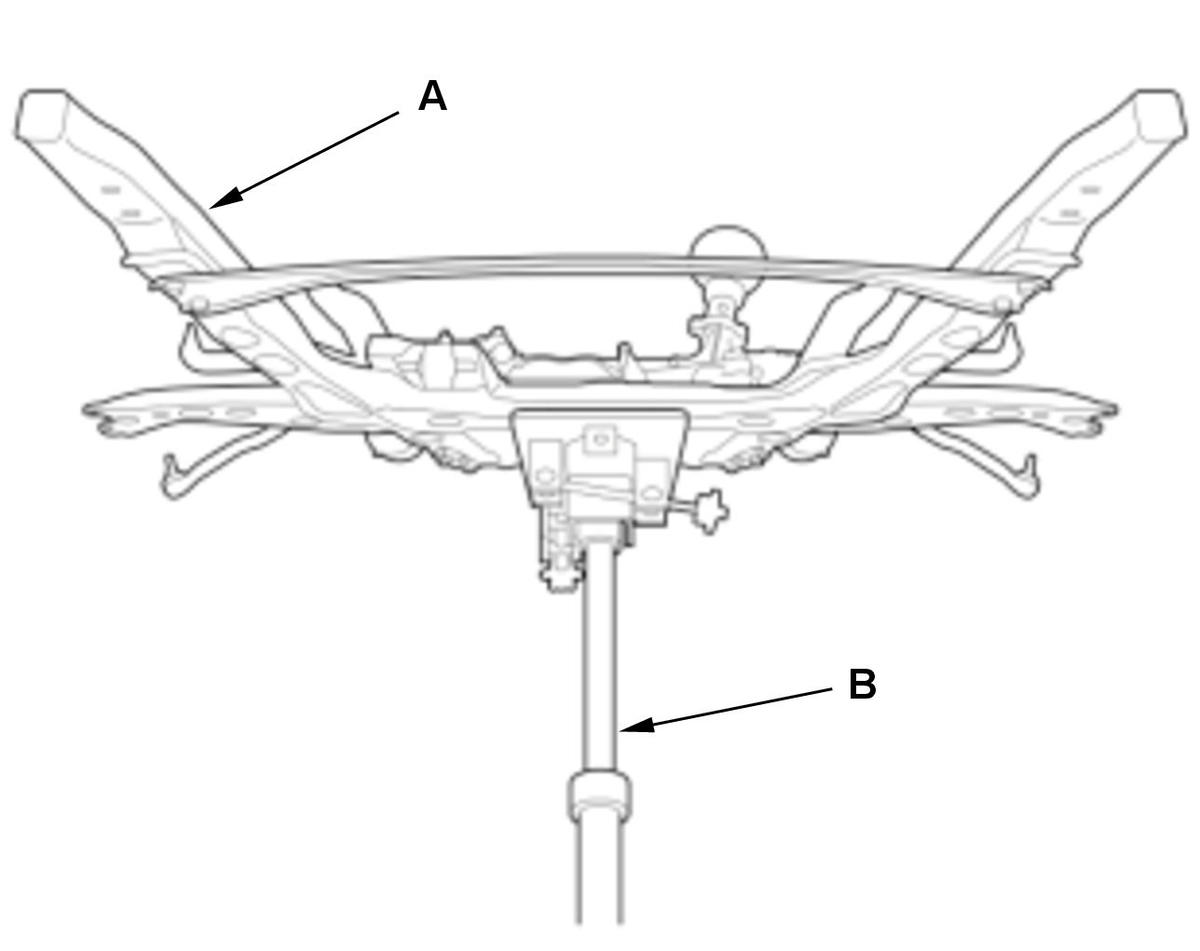

1. Support the front subframe (A) with a transmission jack (B). - Front Subframe - Install
- Front Stabilizer Link Ball Joint - Connect (Both Sides)
- Tie-Rod End Ball Joint - Connect (Both Sides)
- Lower Arm Mounting Bolt - Install (Both Sides)

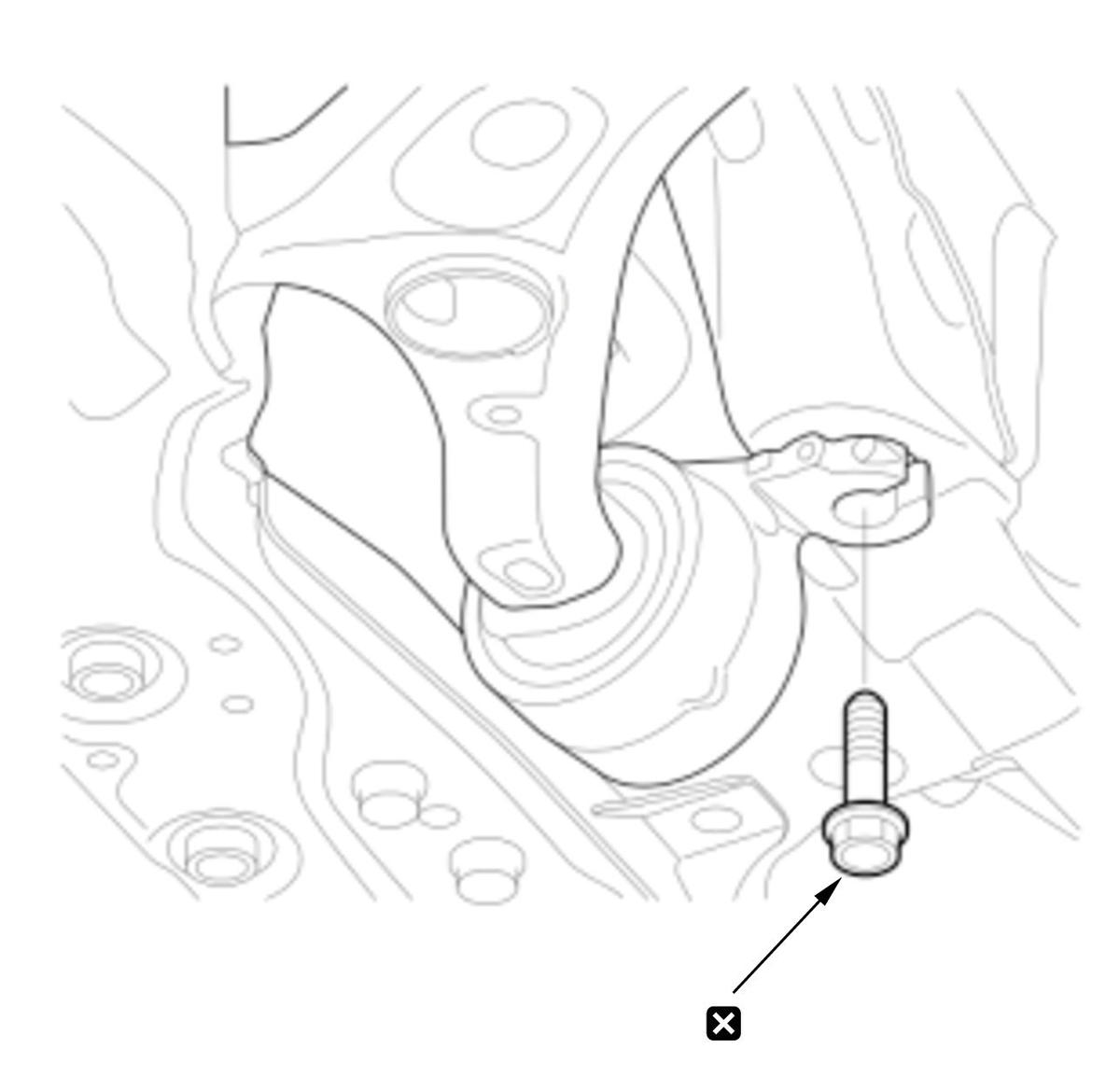

1. Install both sides of the front lower arm mounting bolt to the body . - Lower Arm - Connect (Both Sides)
- Lower Torque Rod Mounting Bolt - Loosely Install
- Connectors (EPS Motor/Control Unit) - Connect
- Drive Plate - Connect
1. Attach the drive plate (A) to the flywheel with eight flywheel bolts (B). NOTE: There are eight flywheel bolts.
2. Rotate the crankshaft pulley as necessary to tighten the bolt to half of the specified torque, then to the final torque, in a crisscross pattern.
3. Check that the crankshaft rotates freely.

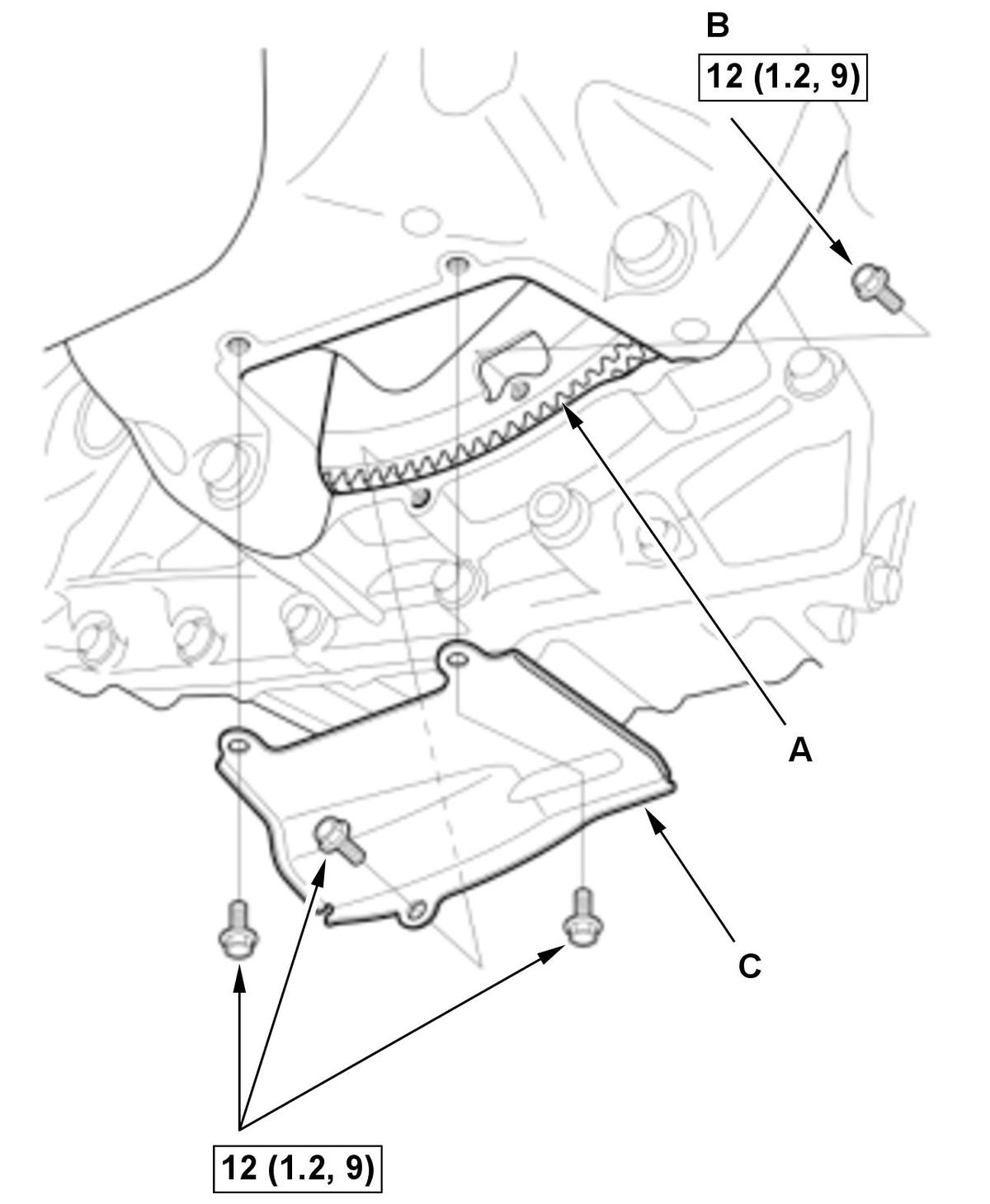

4. Install the torque converter cover (C).
- Exhaust Pipe A - Install
- Vehicle - Lower
- Upper Transmission (e-CVT) Mounting Bolt - Install
NOTE: Refer to the Exploded View as needed during this procedure.

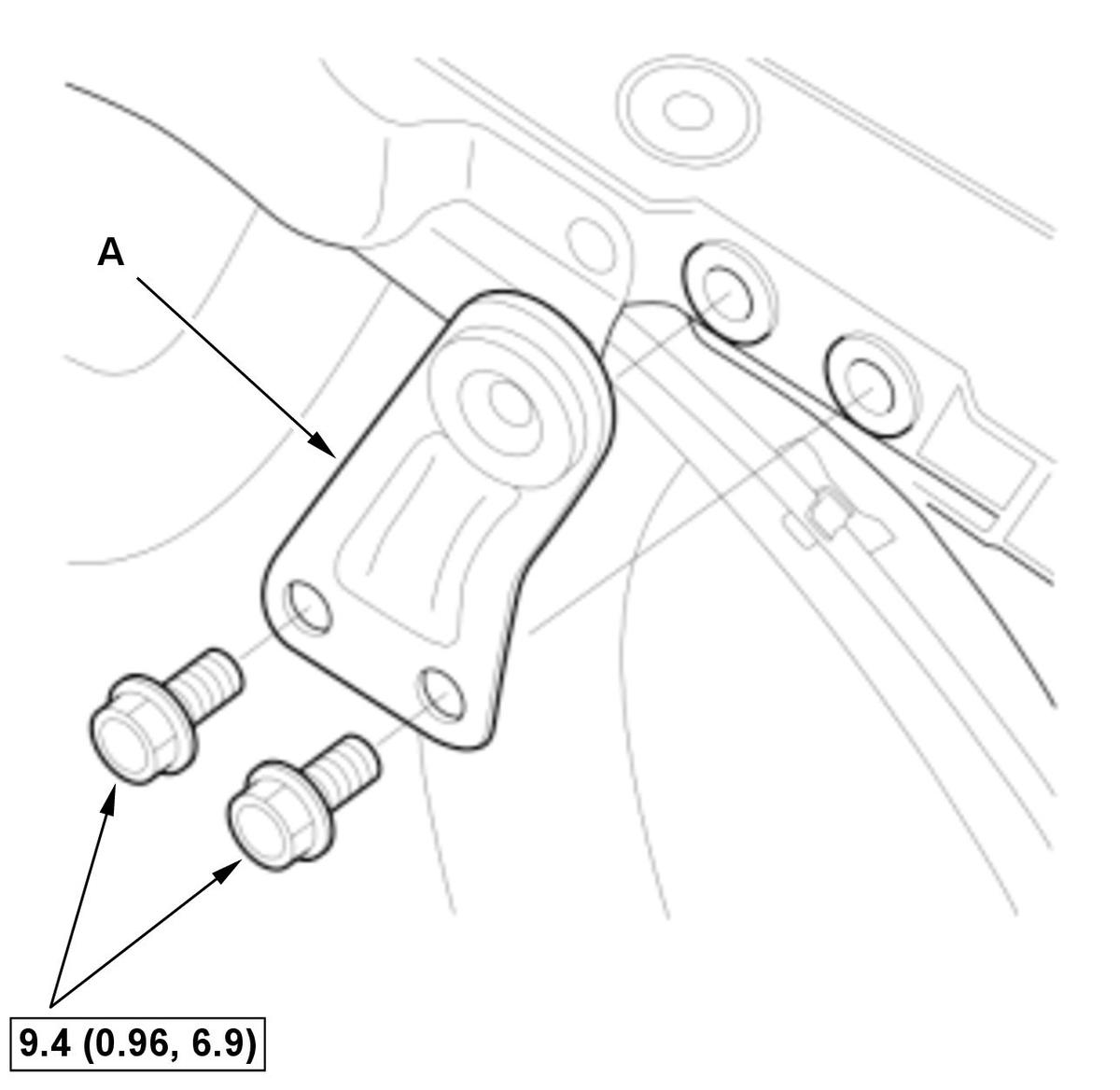

- Transmission Mount - Loosely Install
- Engine Support Hanger - Remove
1. Remove the engine support hanger and the sub hanger stay. 2. Install the hood open stay bracket (A).
3. Install the radiator cap base .
4. Install the front damper caps.
- Engine/Transmission Mount/Torque Rod - Tightening Procedure
- CMP Sensor A - Install
- Harness Cover - Install

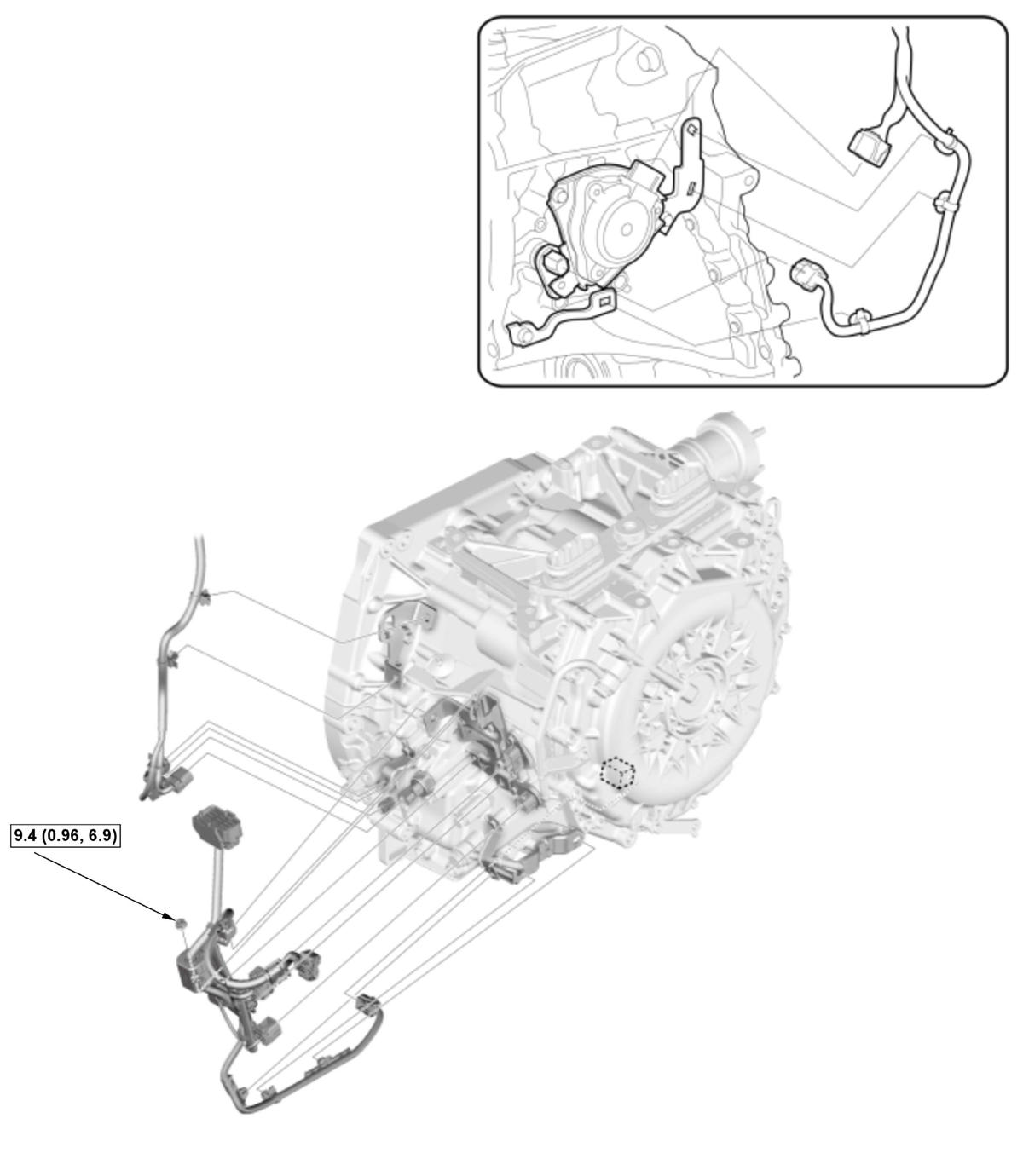

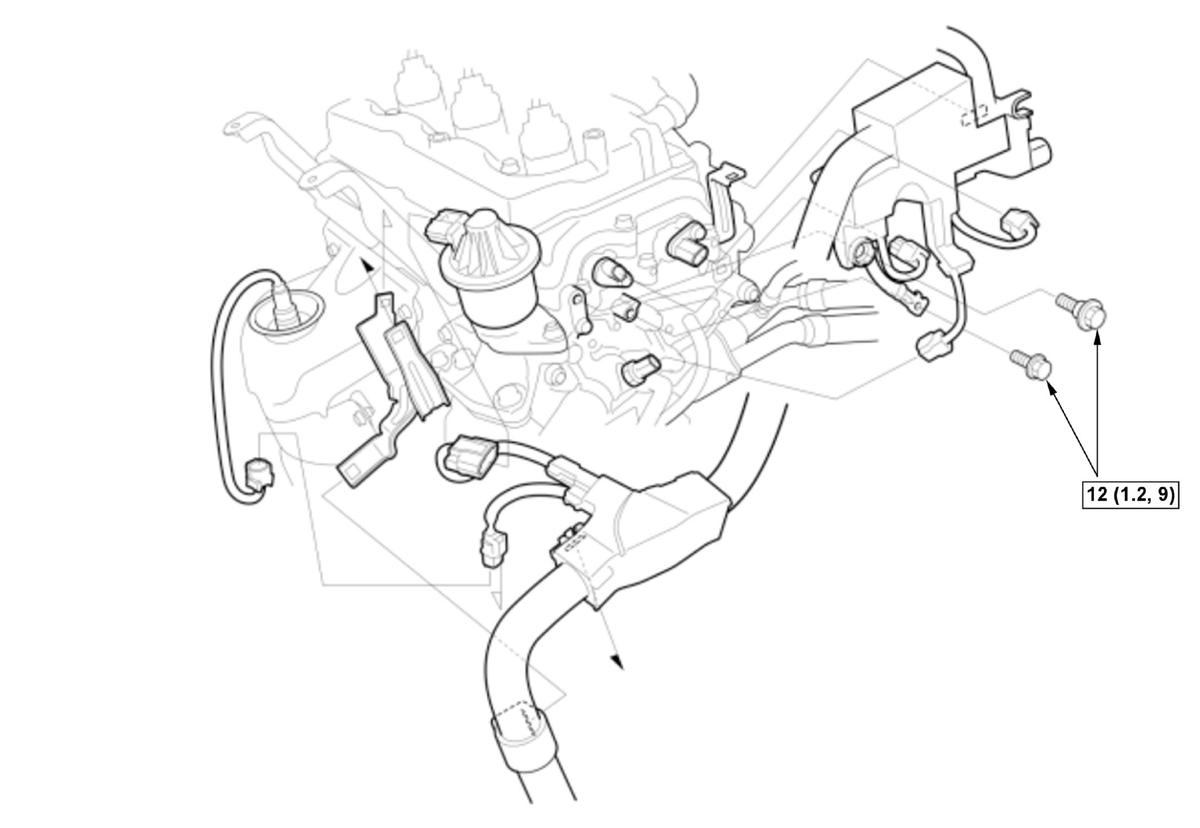

- Engine Wire Harness - Install
- Steering Joint - Connect
- PCU - Install
- Center Cowl Cover - Install
- Windshield Wiper Arm - Install
- Front Bulkhead Cover - Install
- Service Plug - Turn On
- 12 Volt Battery Base - Install
- 12 Volt Battery - Install
- PCU Coolant - Refill
- ATF - Refill
- Engine Undercover - Install
- Front Wheel - Install (Both Sides)
- Wheel Alignment - Check
- VSA Sensor Neutral Position - Memorize
- Motor Rotor Position - Calibrate
- Vehicle - Test-Drive
NOTE: Before test drive, turn the vehicle to the ON mode and shift the transmission to each shift position/mode, and wait for at least 1 seconds to each position/mode. Make sure to be able to select each shift position.
