Auto High-Beam (High-Beam Support System) Description - System Diagram

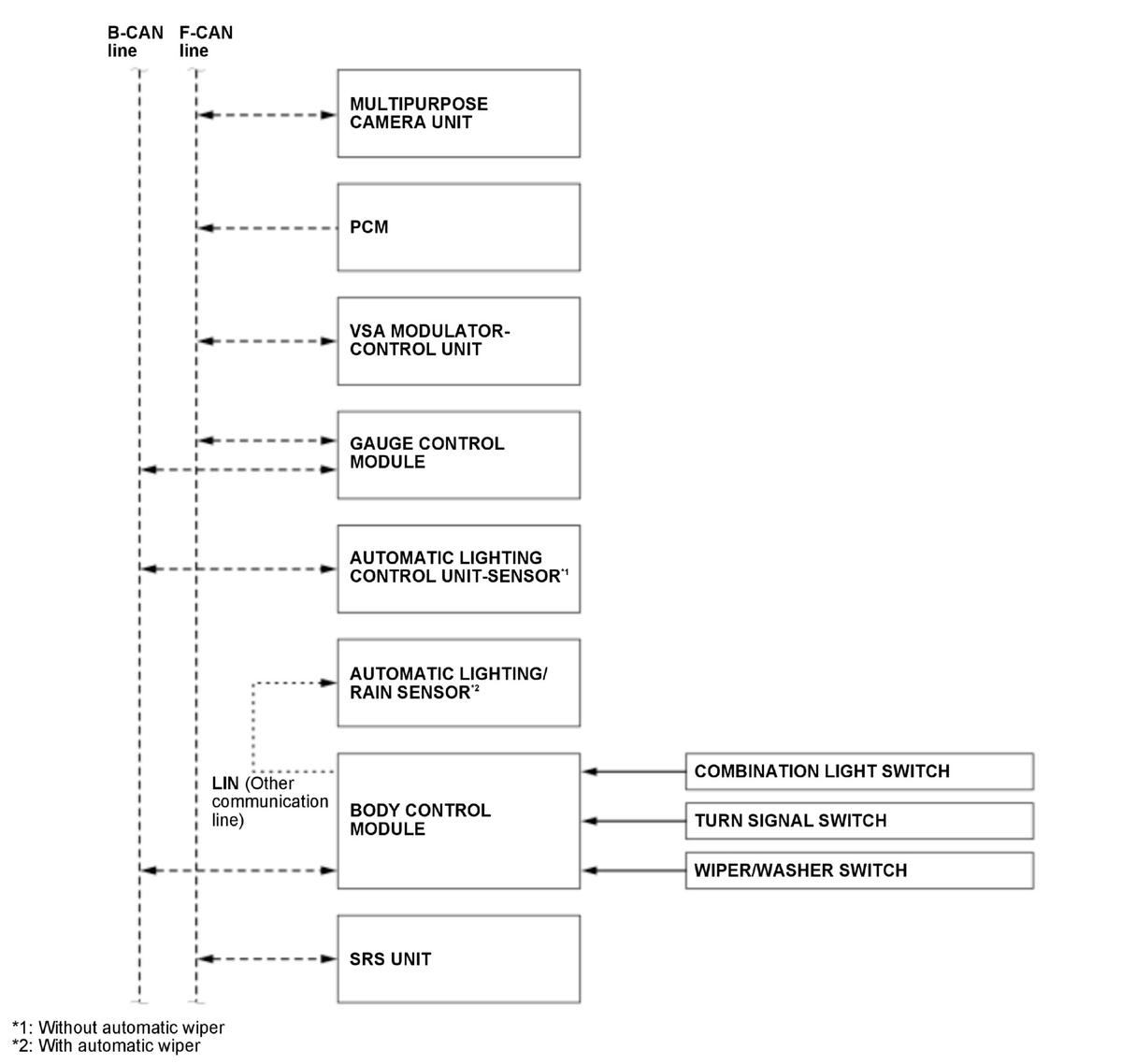

The system diagram of the Auto High-Beam is shown below.

For locations of each component on vehicle, refer to Component Location Index:

• Multipurpose camera unit
• PCM
• VSA modulator-control unit
• Gauge control module
• Without automatic wiper: Automatic lighting control unit-sensor
• With automatic wiper: Automatic lighting/rain sensor
• Body control module
• SRS unit

Courtesy of HONDA, U.S.A., INC.
