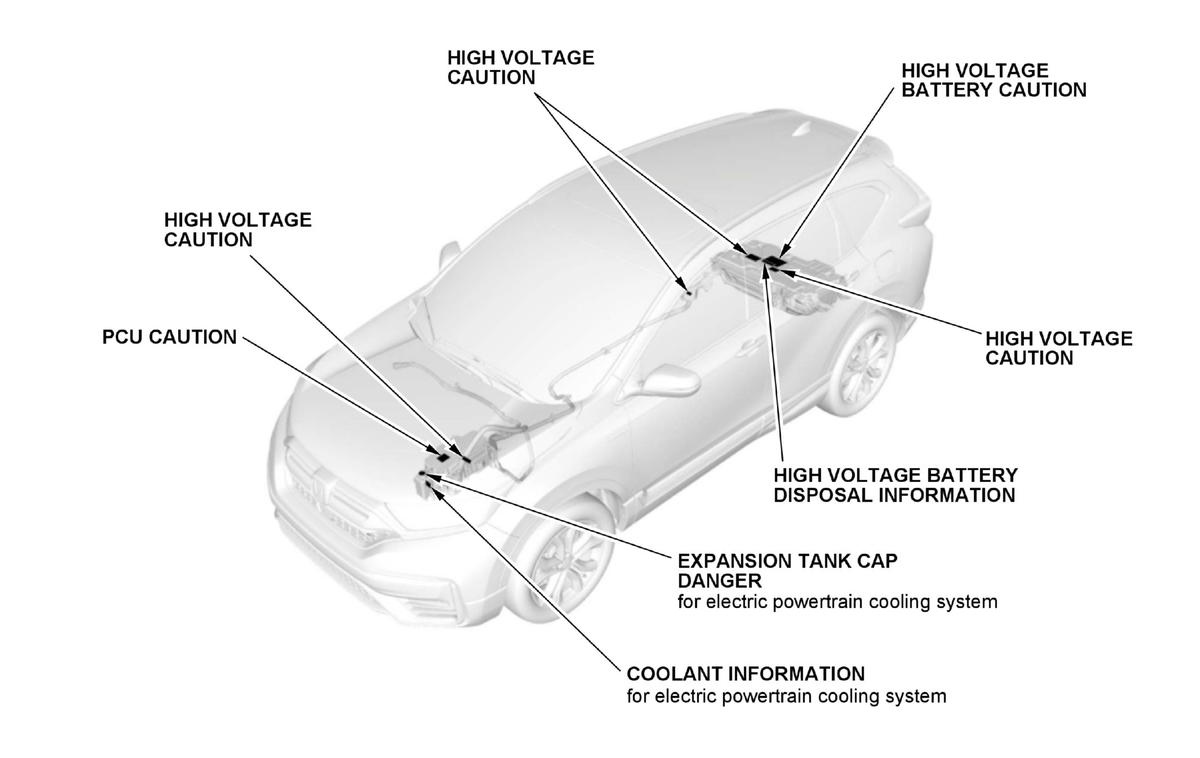

Danger/Warning/Caution Label Locations
WARNING: This page is about a different variant/trim than selected.
NOTE:
The following illustrations do not show all of the DANGER/WARNING/CAUTION labels for the hybrid systems. Refer to Service Precautions
for more details.

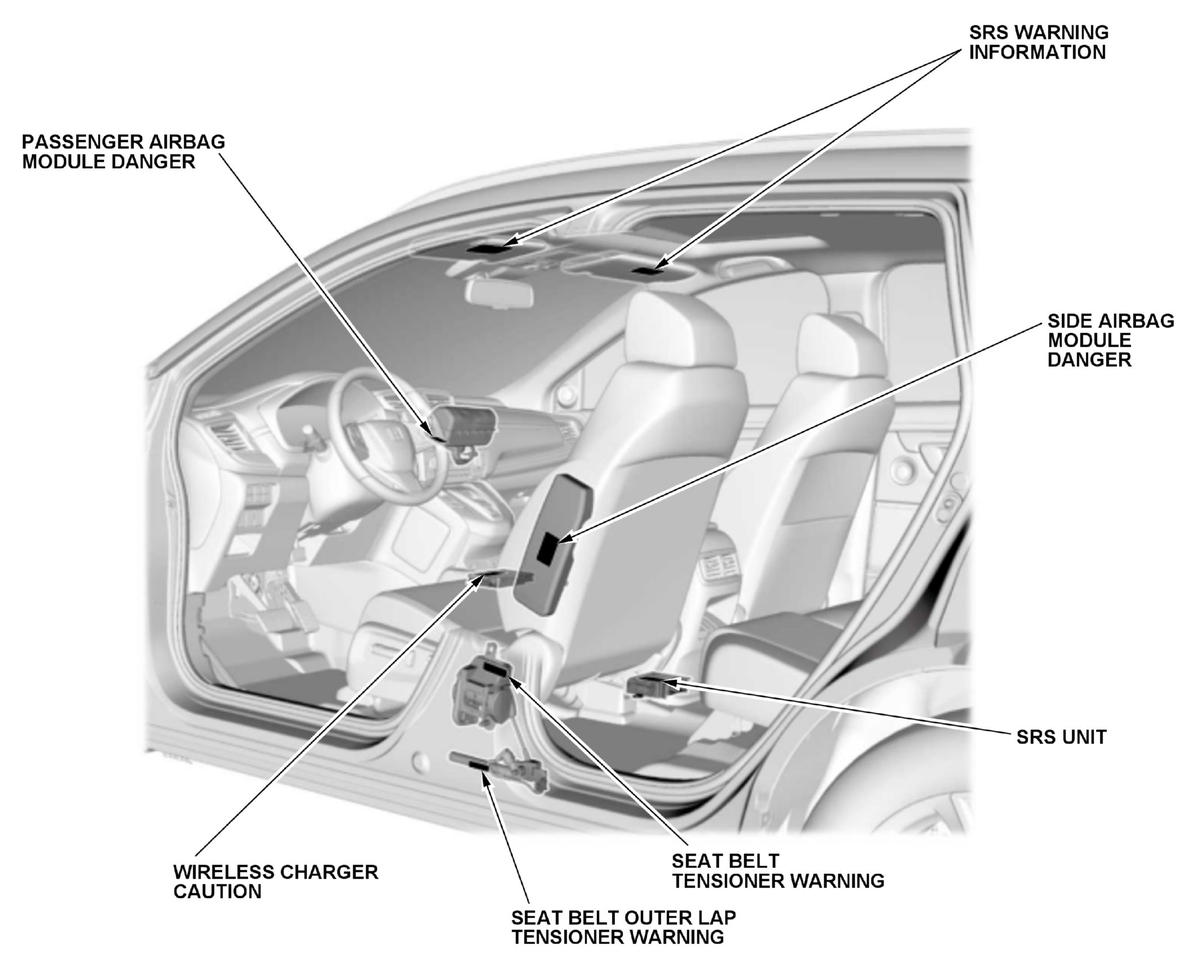

Front Passenger's Compartment:
 Courtesy of HONDA, U.S.A., INC.
|

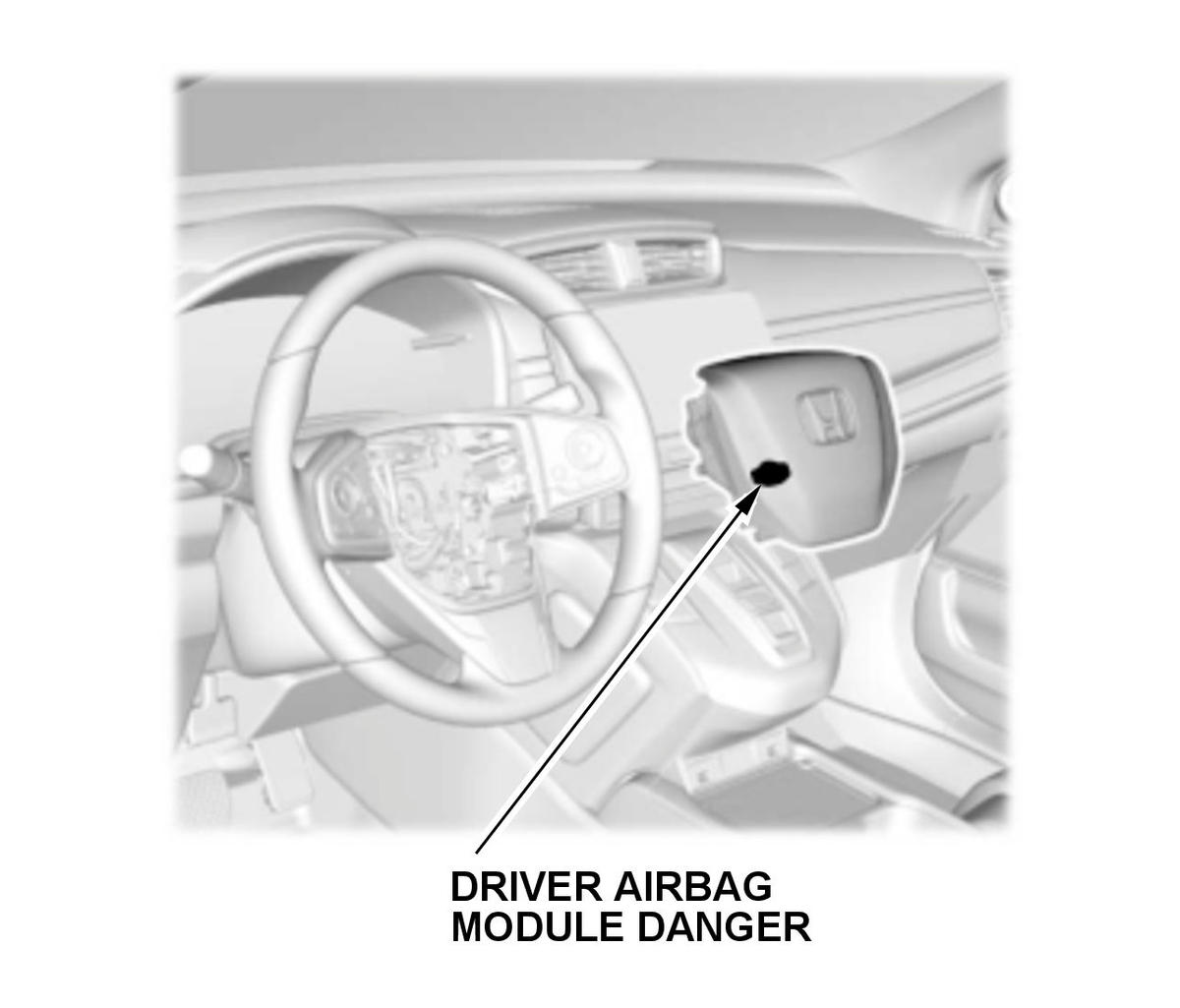

Steering Wheel:
 Courtesy of HONDA, U.S.A., INC.
|

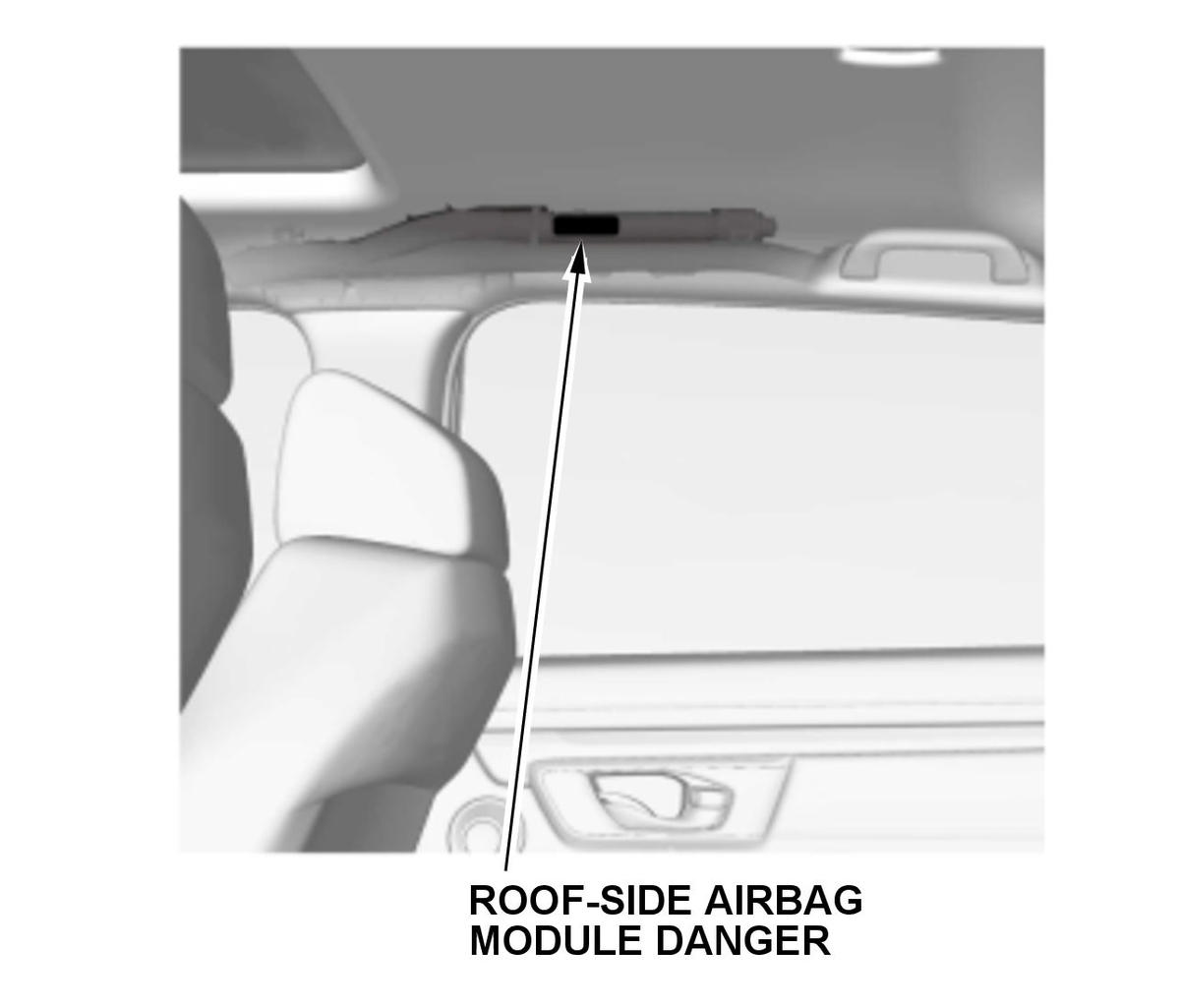

Rear Passenger's Compartment:
 Courtesy of HONDA, U.S.A., INC.
|

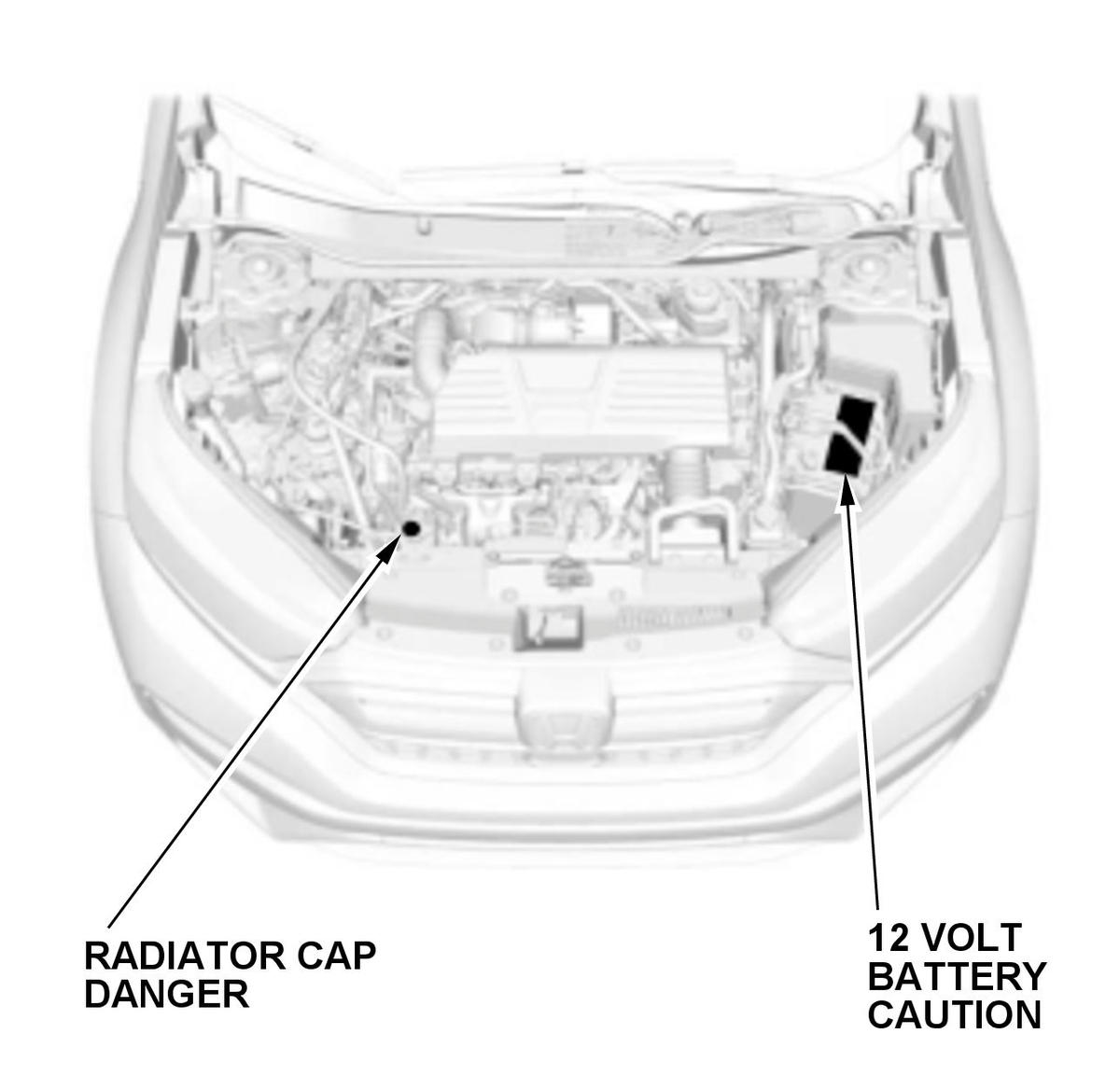

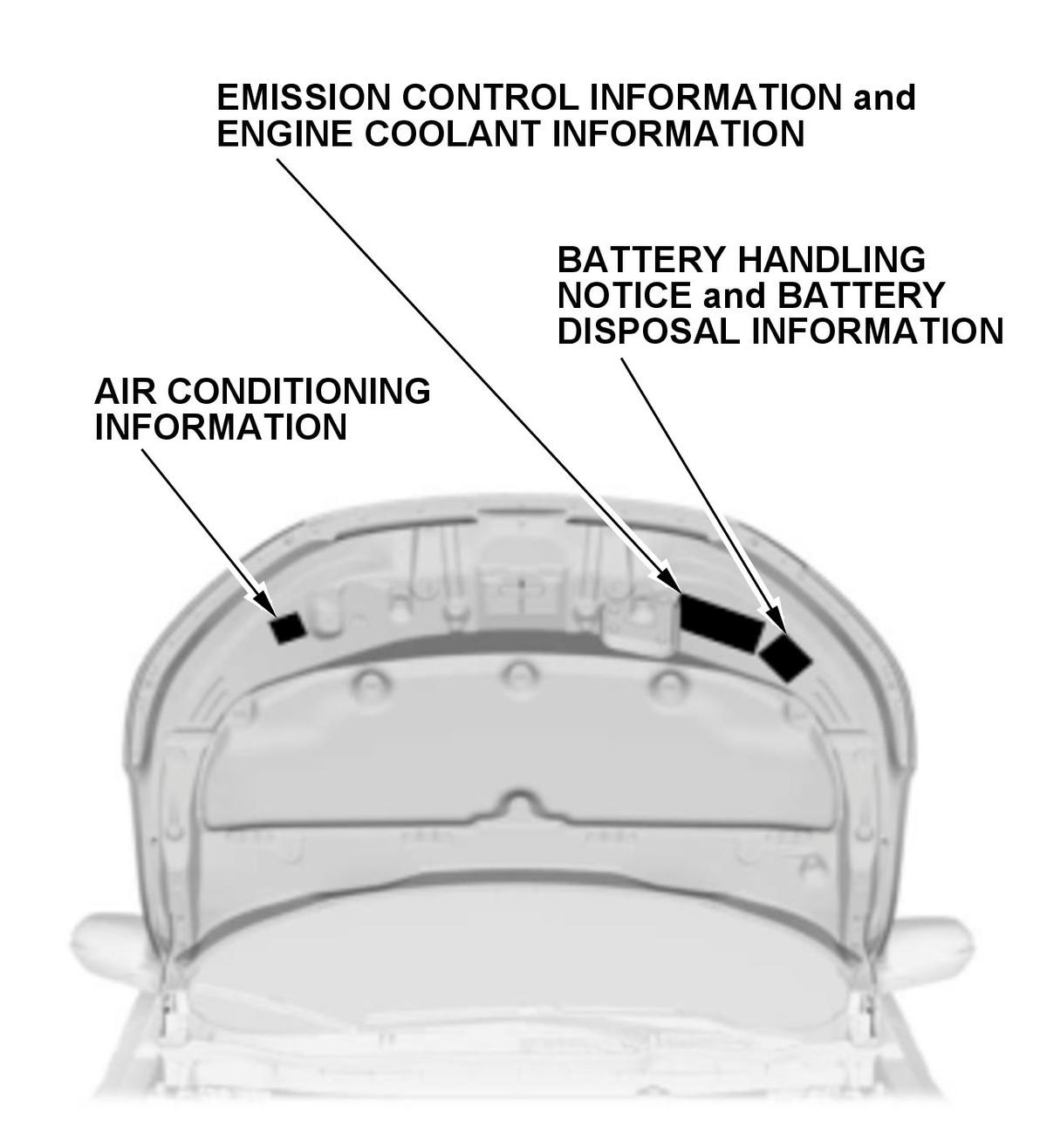

Engine Compartment:
 Courtesy of HONDA, U.S.A., INC.
|
|
 Courtesy of HONDA, U.S.A., INC.
|
|

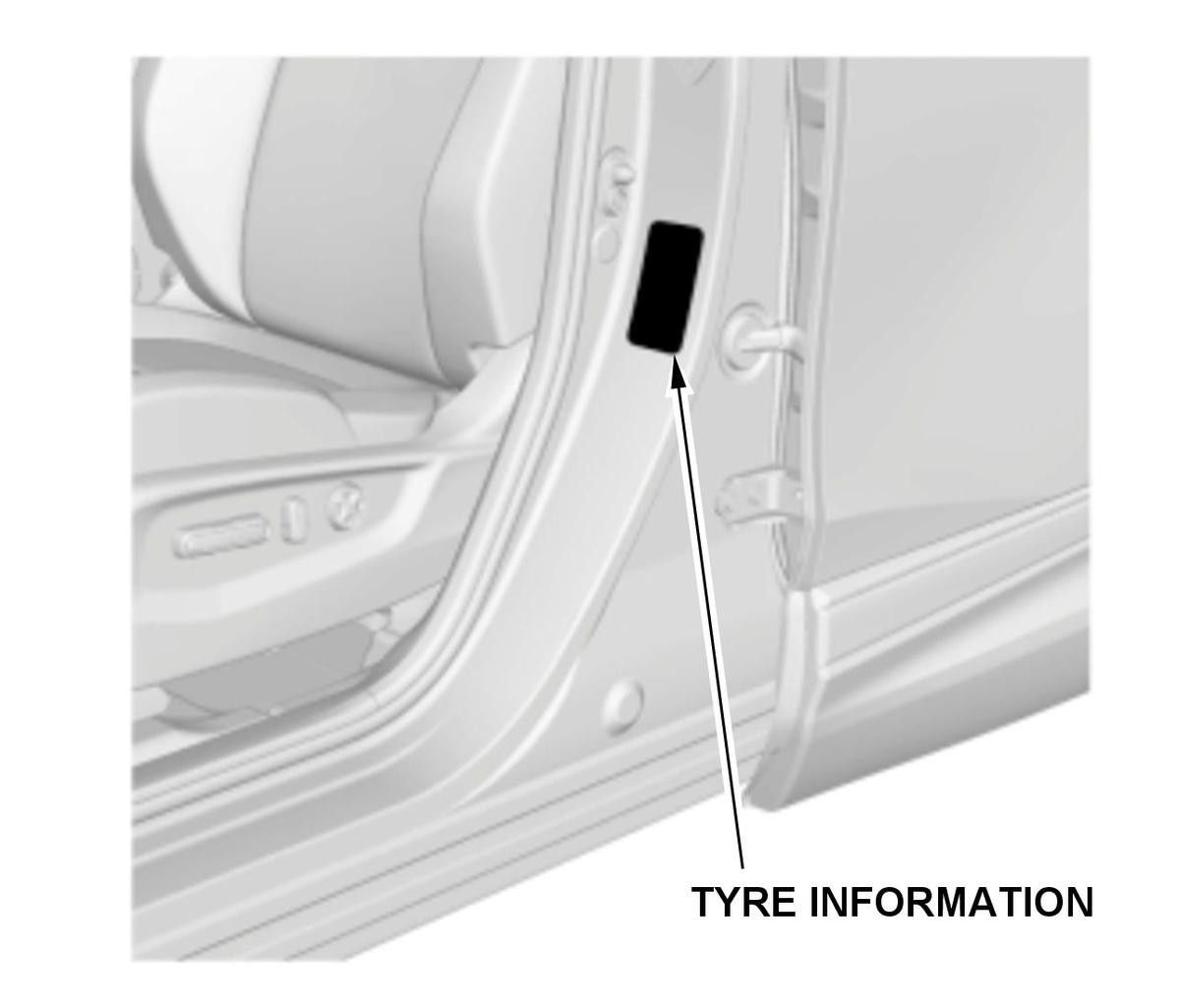

Driver's Doorjamb:
 Courtesy of HONDA, U.S.A., INC.
|

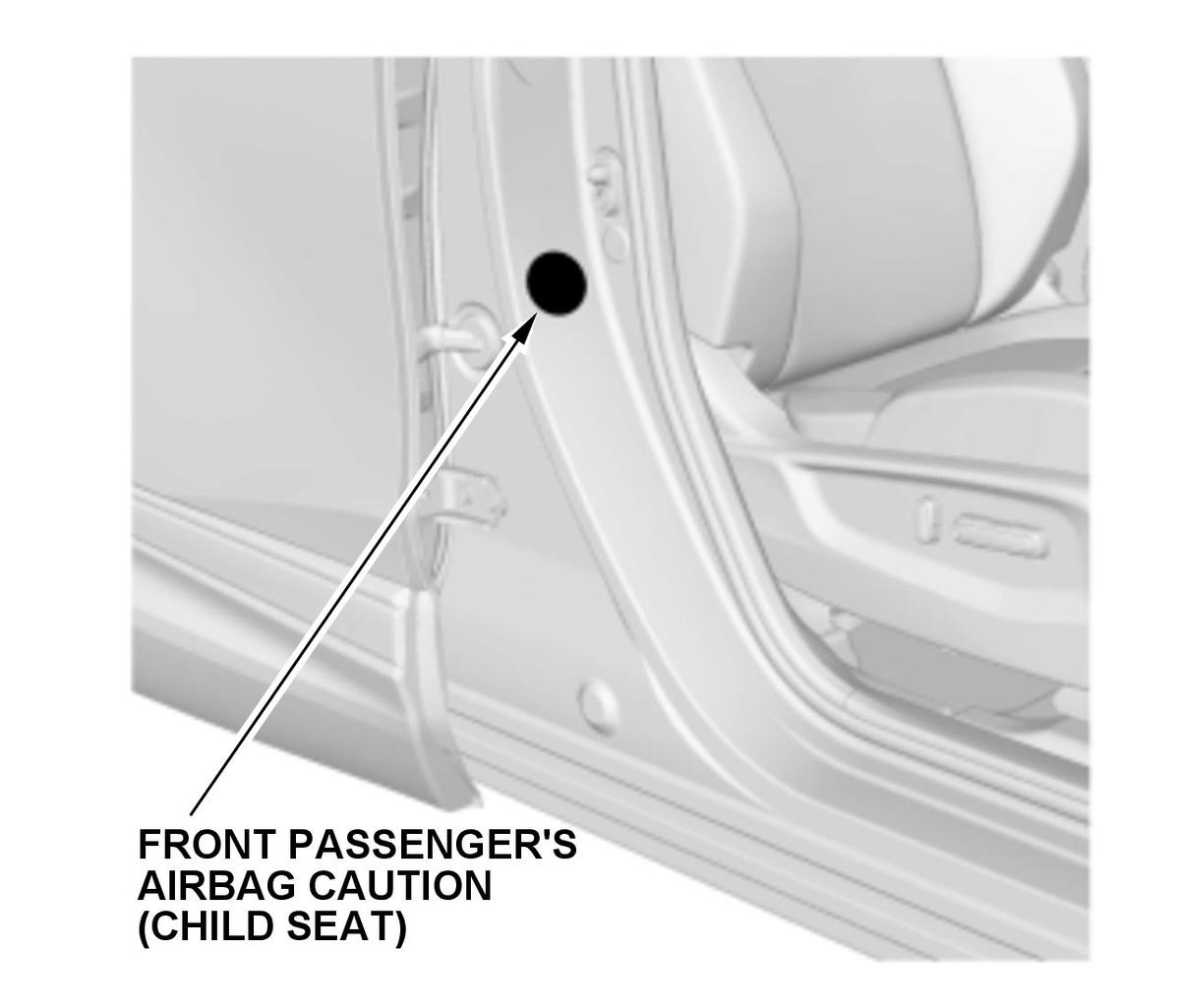

Front Passenger's Doorjamb:
 Courtesy of HONDA, U.S.A., INC.
|
Passenger's Compartment:
 Courtesy of HONDA, U.S.A., INC.
|
