Visual Index - Engine Compartment

WARNING: This page is about a different variant/trim than selected.
Location Index
Engine Compartment 1
Engine Compartment 2
Engine Compartment 3

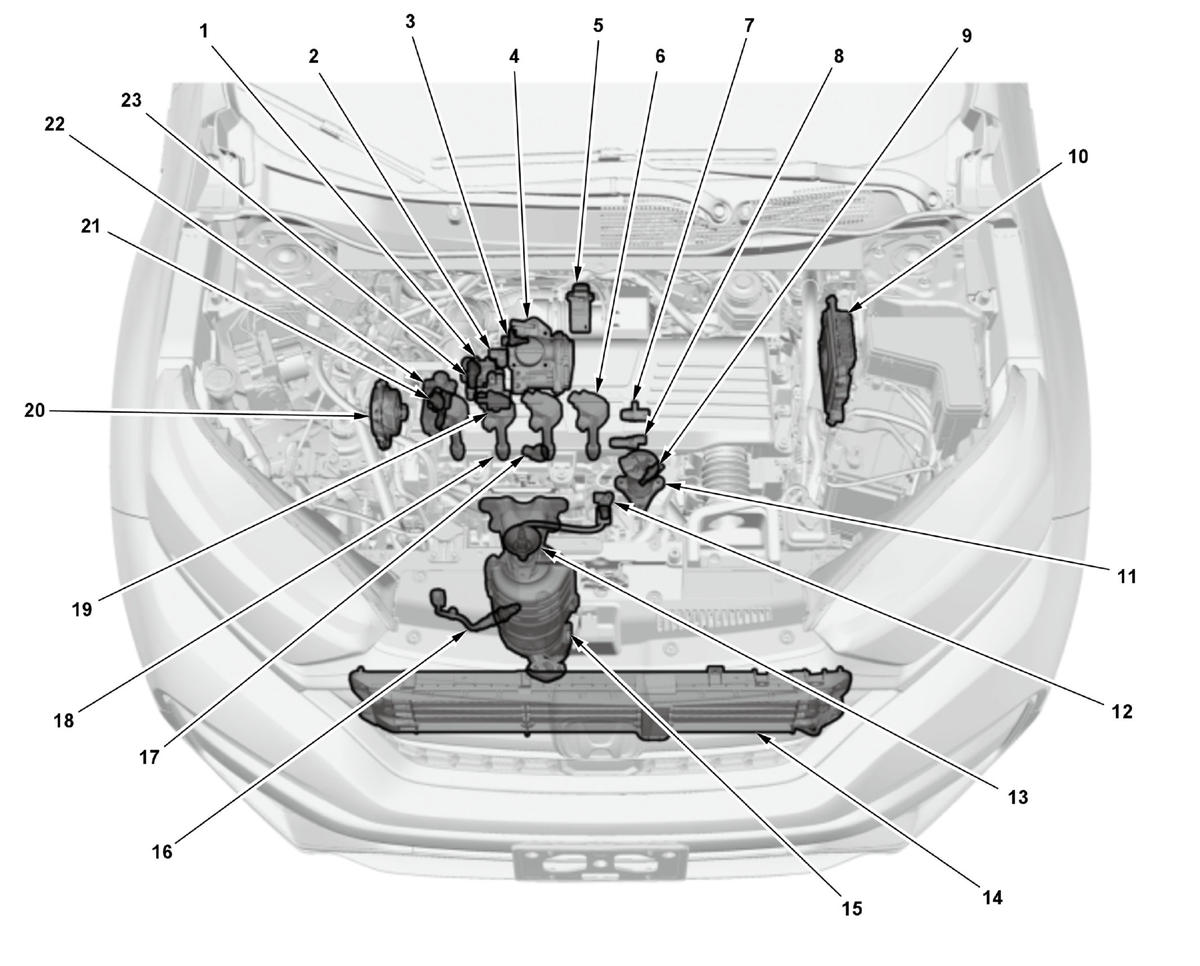

Engine Compartment 1

GHH379166Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 Evaporative emission (EVAP) canister purge valve 1 Fuel and Emissions Systems
2 Manifold absolute pressure (MAP) sensor Fuel and Emissions Systems
3 Intake air temperature (IAT) sensor 2 Fuel and Emissions Systems
4 Throttle body Fuel and Emissions Systems
5 Mass air flow (MAF) sensor/intake air temperature (IAT) sensor 1 Fuel and Emissions Systems
6 Ignition coils Ignition System
7 Camshaft position (CMP) sensor A Fuel and Emissions Systems
8 Camshaft position (CMP) sensor B Fuel and Emissions Systems
9 Engine coolant temperature (ECT) sensor 1 Fuel and Emissions Systems
10 Powertrain control module (PCM)
11 Exhaust gas recirculation (EGR) valve Fuel and Emissions Systems
12 Crankshaft position (CKP) sensor Fuel and Emissions Systems
13 Air fuel ratio (A/F) sensor (sensor 1) Fuel and Emissions Systems
14 Shutter grille Fuel and Emissions Systems
15 Three way catalytic converter (TWC) Fuel and Emissions Systems
16 Secondary heated oxygen sensor (secondary HO2S) (sensor 2) Fuel and Emissions Systems
17 Knock sensor Fuel and Emissions Systems
18 Spark plugs Ignition System
19 Evaporative emission (EVAP) canister purge valve 2 Fuel and Emissions Systems
20 Electric VTC motor Fuel and Emissions Systems
21 Rocker arm oil pressure sensor
22 Rocker arm oil control valve Fuel and Emissions Systems
23 PCV valve Fuel and Emissions Systems

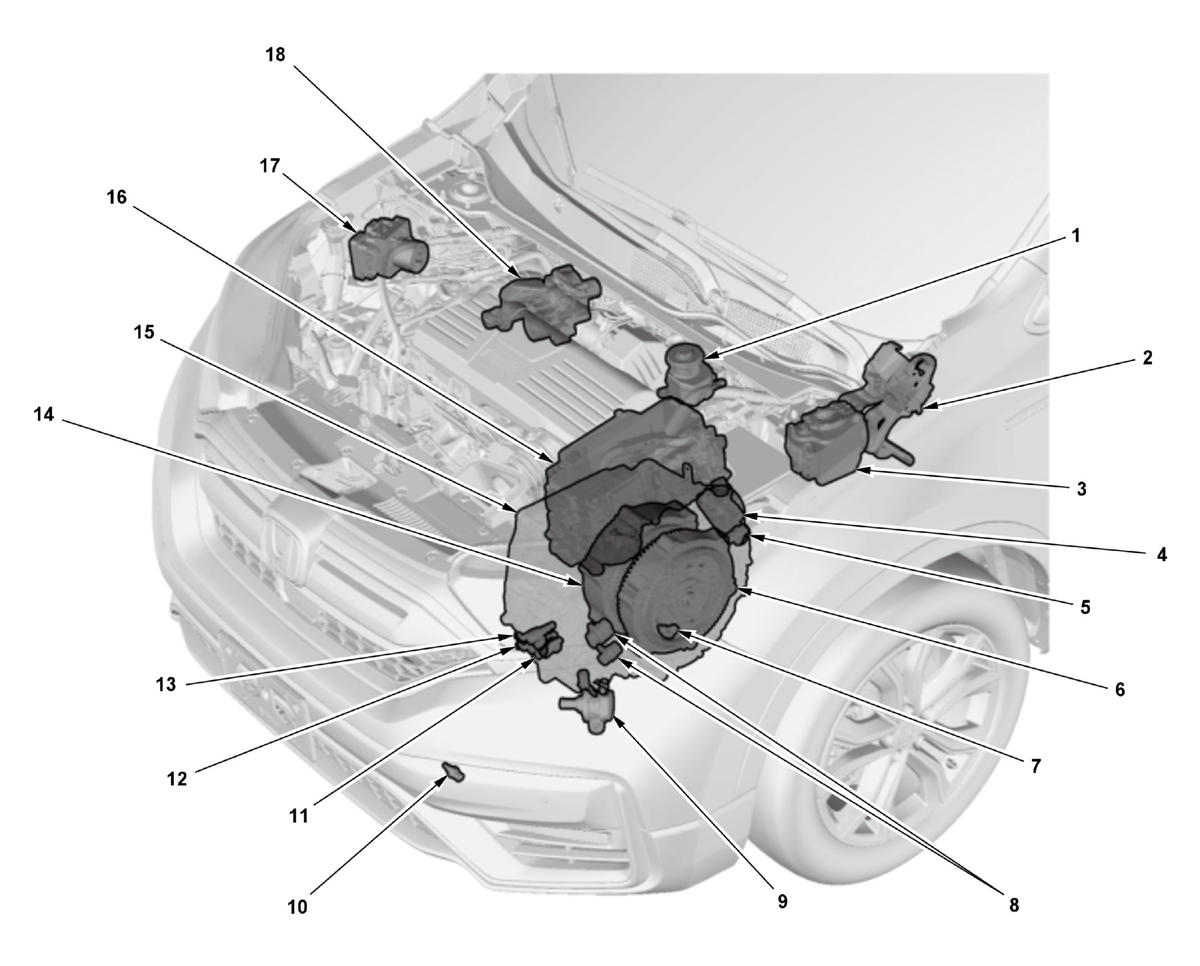

Engine Compartment 2

GHH379167Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 Brake fluid level switch
2 Brake pedal stroke sensor Electric Servo Brake System
3 Electric servo brake control unit/pedal feel simulator
4 Park pawl actuator Gear Unit
5 Park position sensor
6 Generator motor (built into the transmission (e-CVT)) Electric Powertrain
7 Transmission fluid temperature sensor Electric Powertrain
8 Motor rotor position sensors Electric Powertrain
9 PCU electric coolant pump Electric Powertrain
10 PCU coolant temperature sensor Electric Powertrain
11 Transmission fluid pressure sensor Gear Unit
12 Shift solenoid valve B Gear Unit
13 Shift solenoid valve A Gear Unit
14 Traction motor (built into the transmission (e-CVT)) Electric Powertrain
15 Transmission (e-CVT) Gear Unit
16 Power control unit (PCU)
  • -

    Motor control module

 Electric Powertrain
17 VSA modulator-control unit
18 Tandem motor cylinder Electric Servo Brake System

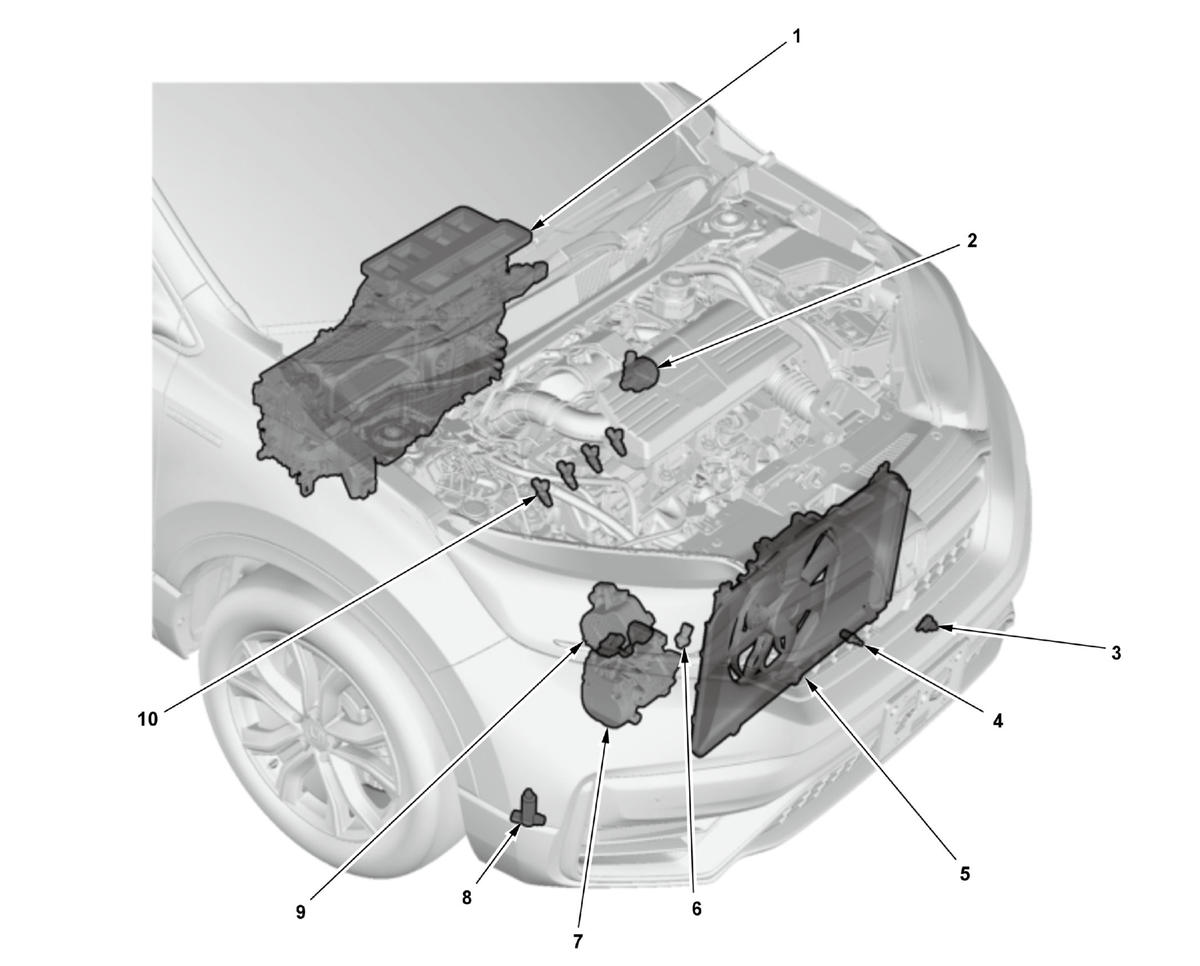

Engine Compartment 3

GHH379168Courtesy of HONDA, U.S.A., INC.
No. Component Related System
1 HVAC unit
  • Evaporator core
  • Heater unit/core
  • Mode control motor
  • Blower unit
  • Blower motor
  • Recirculation control motor
  • Air mix control motor
  • Power transistor
  • Evaporator temperature sensor
  • Driver's air mix control motor
  • Passenger's air mix control motor
  • PTC heater core
 Climate Control System
2 Electric heater coolant pump
3 Outside air temperature sensor
4 Engine coolant temperature (ECT) sensor 2
5 Fan shroud assembly
6 A/C pressure sensor Climate Control System
7 Electric A/C compressor Climate Control System
8 Windshield/rear window washer motor Wipers/Washers
9 Electric engine coolant pump Cooling System
10 Injectors Fuel and Emissions Systems
