Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

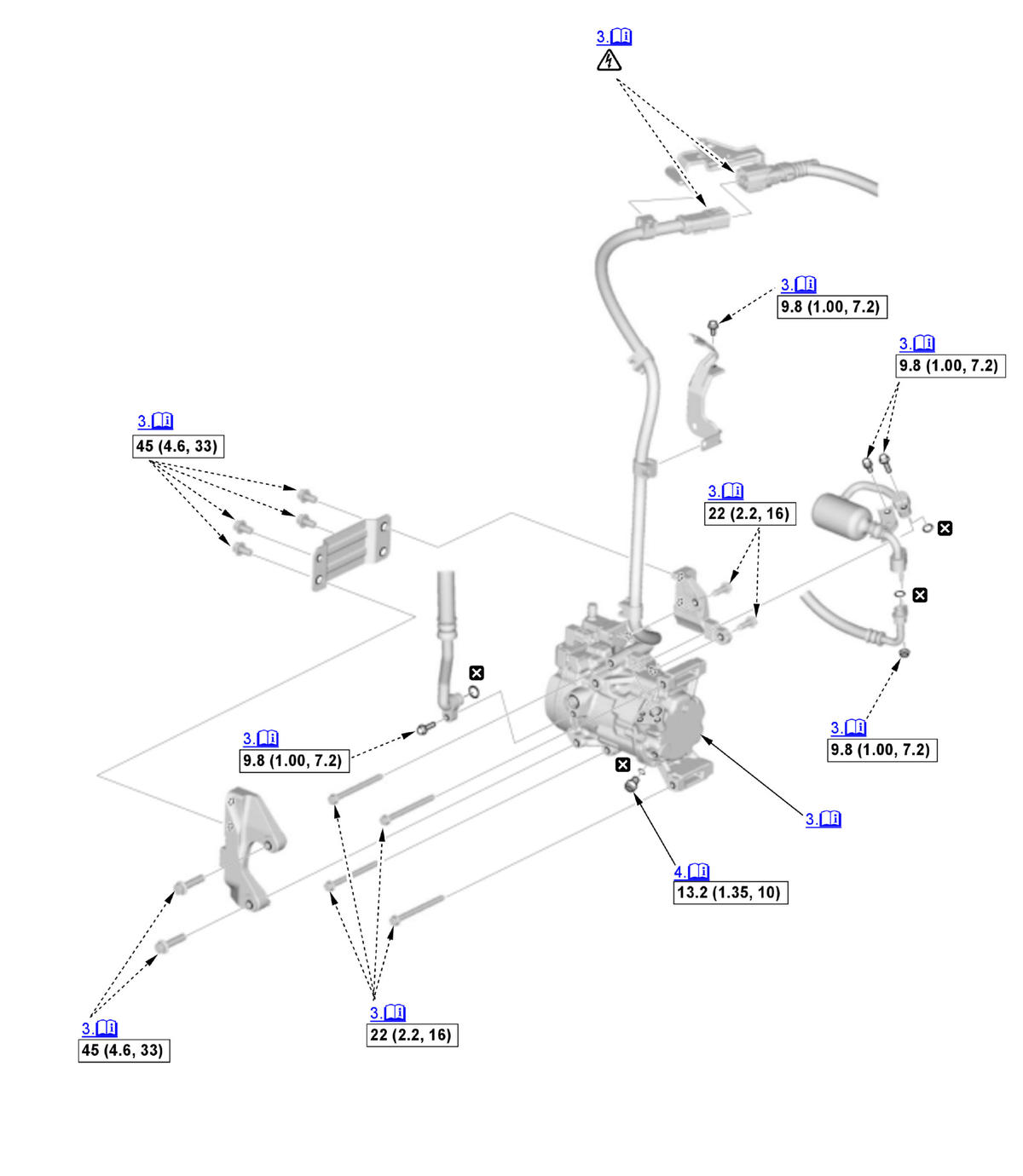

Fig 1: Exploded View Of Climate Control System (Under-Hood) Components With Torque Specifications (1 Of 3)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

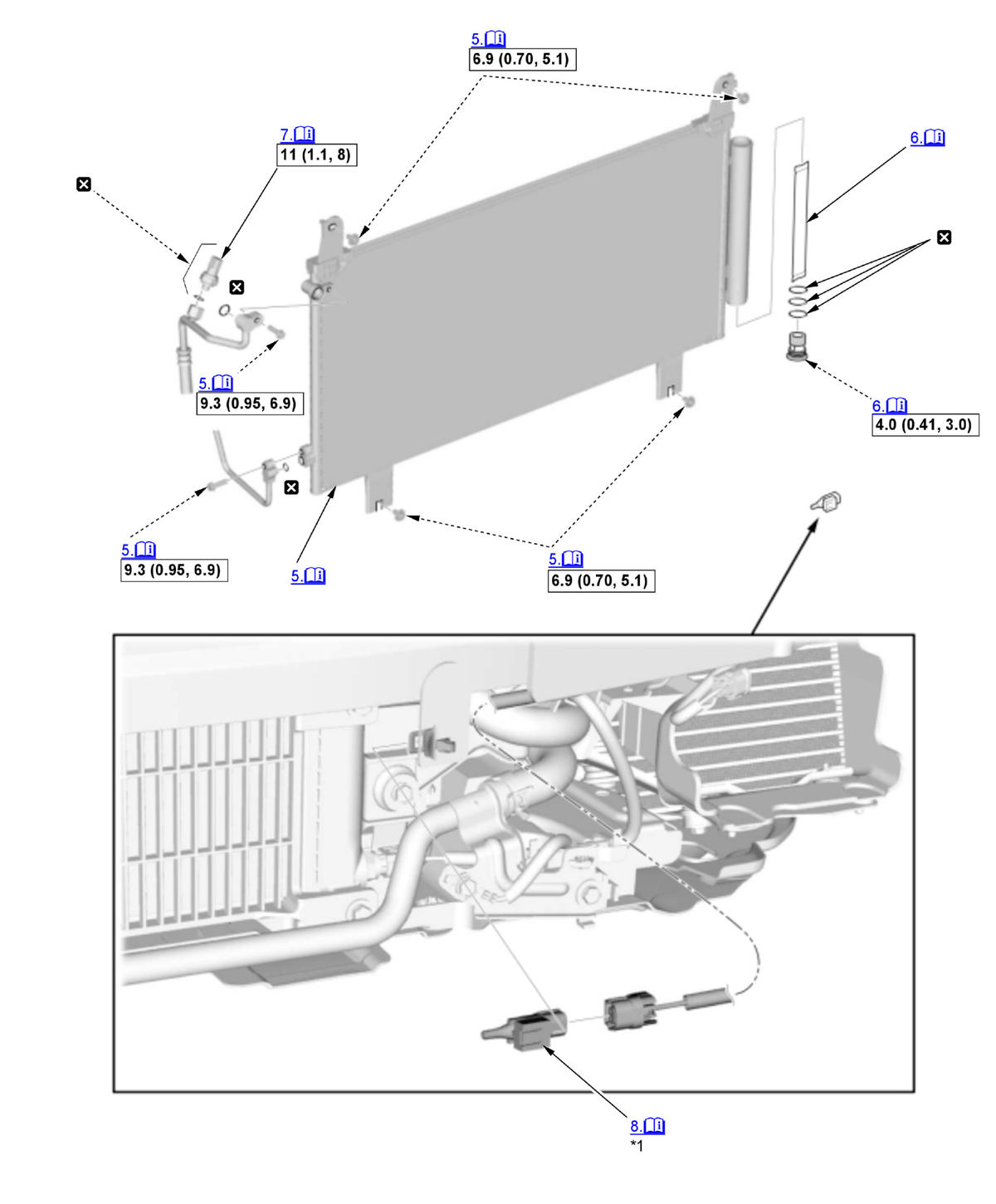

Fig 2: Exploded View Of Climate Control System (Under-Hood) Components With Torque Specifications (2 Of 3)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

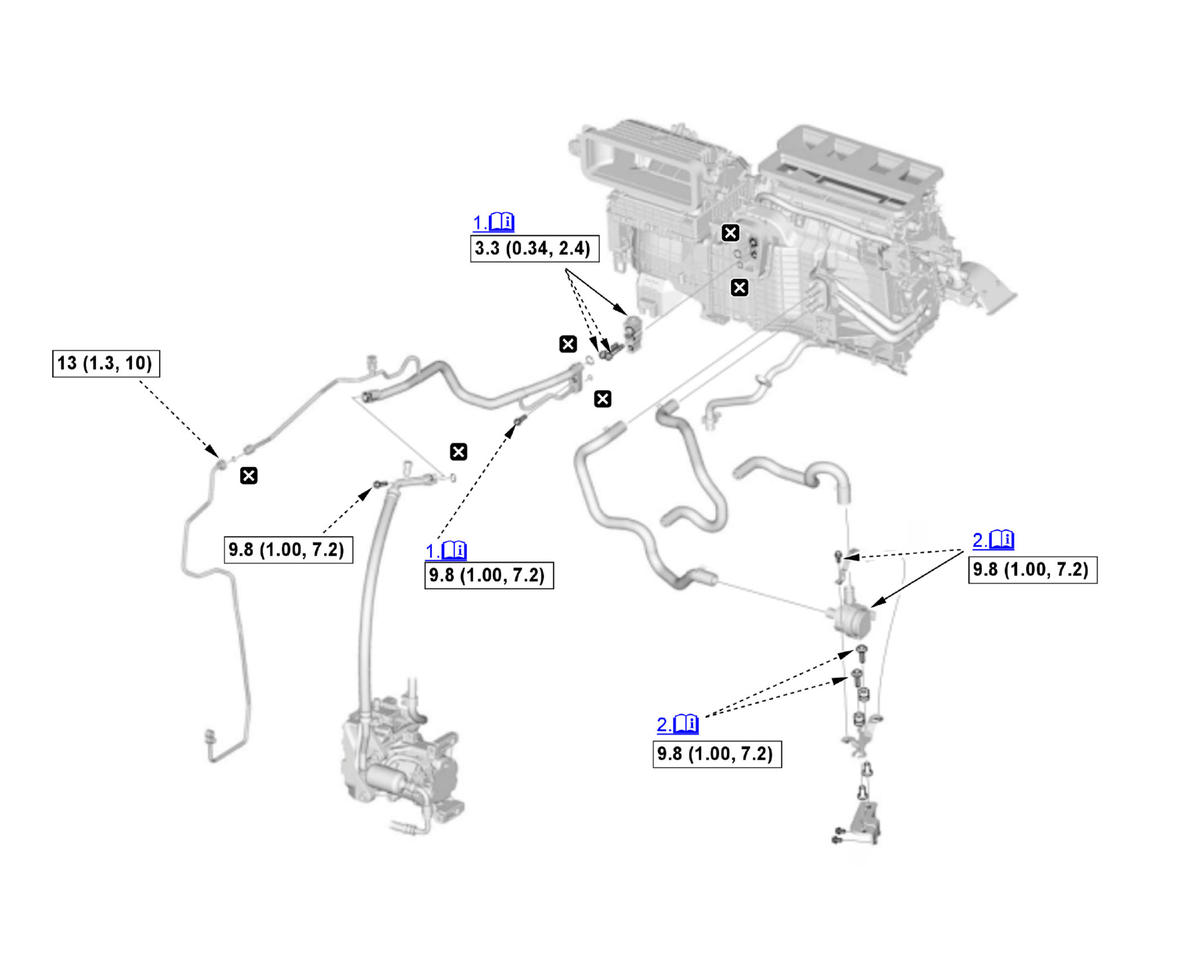

Fig 3: Exploded View Of Climate Control System (Under-Hood) Components With Torque Specifications (3 Of 3)

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	Test item

Expansion Valve - Remove
1. Recover the refrigerant from the A/C system .

2. Remove the expansion valve.
Electric Heater Coolant Pump - Remove
1. Drain the engine coolant .

2. Remove the engine undercover .

3. Remove the electric heater coolant pump.

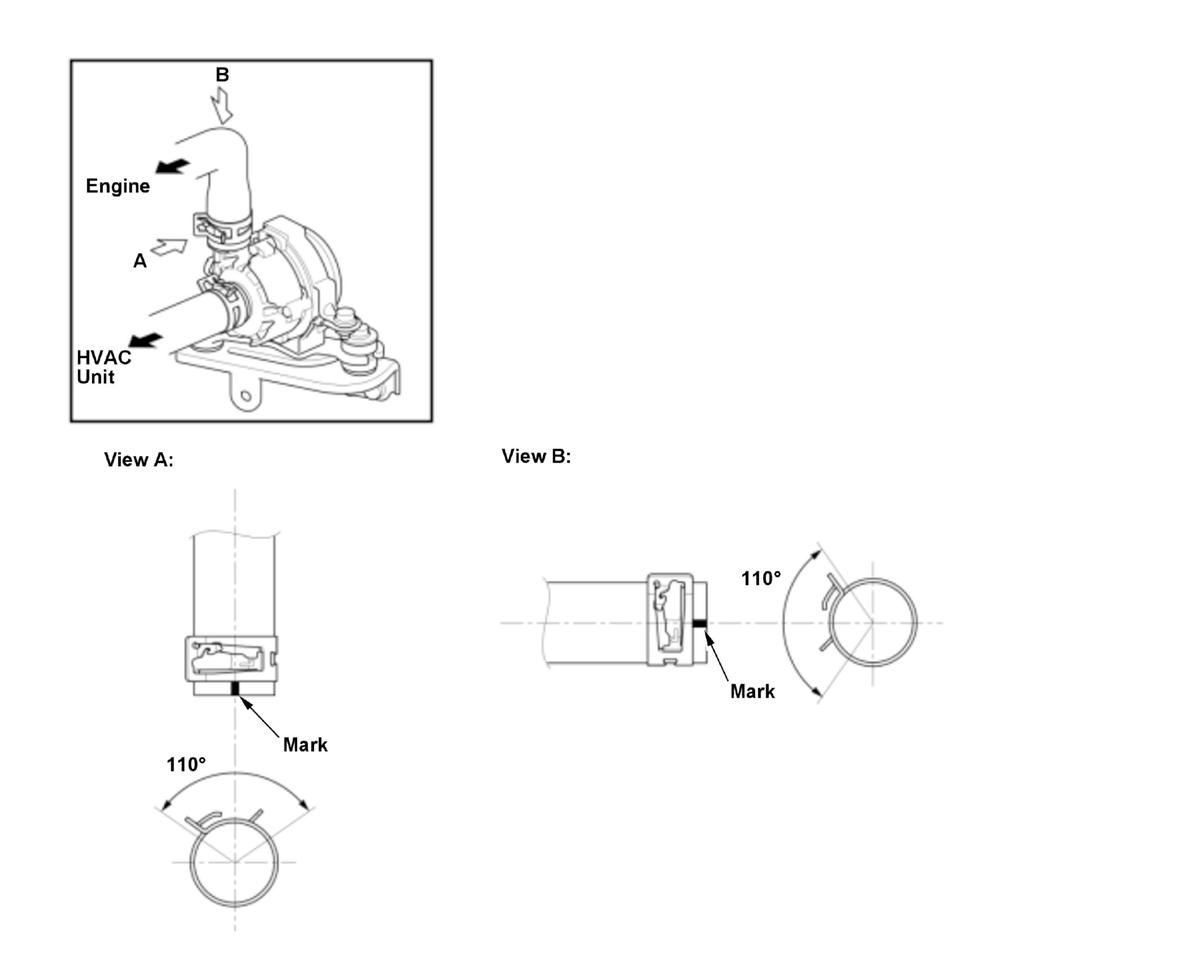

Note for installation
- Make sure the hose clamp is positioned as shown.
- Make sure the hose clamp is in the position of its range shown.
- Make sure that there is no engine coolant leakage.
Heater hose

Courtesy of HONDA, U.S.A., INC.
Electric A/C Compressor - Remove
1. Before removing the electric A/C compressor, do the following procedures:
- Turning off the service plug .
- Recover the refrigerant .
2. Remove the front engine undercover .

3. Remove the electric A/C compressor.

Note for installation
- Do not install the electric A/C compressor into a system unless you are completely sure that the system is free of contamination. Installing the electric A/C compressor into a contaminated system can result in premature electric A/C compressor failure. Refer to A/C System Contamination Inspection .
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- If you are installing a new electric A/C compressor, you must calculate the amount of refrigerant oil to be removed from it . A new electric A/C compressor comes with a full charge of oil.
Electric A/C Compressor Relief Valve - Remove
1. Recover the refrigerant from the A/C system .

2. Remove the front engine undercover lid .

3. Remove the electric A/C compressor relief valve.
A/C Condenser - Remove
1. Recover the refrigerant from the A/C system .

2. Remove the shutter grille .

3. Remove the A/C condenser.

Note for installation If you are installing a new A/C condenser, add the appropriate refrigerant oil for the electric A/C compressor which installed to the vehicle .
Desiccant - Remove
1. Recover the refrigerant from the A/C system

2. Remove the A/C condenser.

3. Remove the desiccant.

Note for installation
- Install the desiccant as quickly as possible to prevent the system from absorbing moisture from the air.
- If you are installing a new desiccant, add the appropriate refrigerant oil for the electric A/C compressor which installed to the vehicle .
- Install the cap to the specified torque. It is made of resin and can be easily stripped.
A/C Pressure Sensor - Remove
1. Recover the refrigerant from the A/C system .

2. Remove the A/C pressure sensor.

NOTE: Hold the A/C pressure sensor block with a wrench to prevent damaging the discharge hose, then remove and install the A/C pressure sensor.
Outside Air Temperature Sensor - Remove
1. Remove the front bumper .

2. Remove the outside air temperature sensor.
