DTC B1237 (B-A5)

DTC B1237 or DTC screen B-A5  : A Short in the Passenger's Air Mix Control Motor Circuit

NOTE:  If other short circuit DTCs are indicated at the same time, there may be an open or short to body ground in the power S5V circuit.

DTC (AC)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Do the Self-Diagnostic Function with the HDS or the climate control unit .

   -4. Check for DTCs.

   DTC Description	DTC
   B1237 A short in the passenger's air mix control motor circuit

   Is DTC B1237 or Error on the DTC screen B-A5 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure. Check for loose wires or poor connections on the passenger's air mix control motor circuit.

2. Determine possible failure area (S5V line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Passenger's air mix control motor 5P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Passenger's air mix control motor 5P connector: disconnected

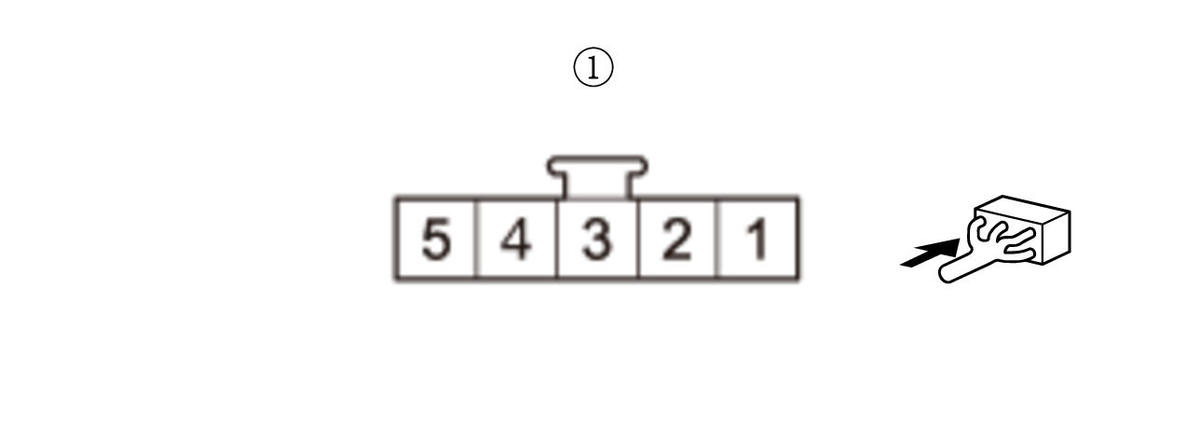

   Test point 1	Passenger's air mix control motor 5P connector (female terminals) No. 3:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The S5V wire is OK. Go to step 3.

   NO

   Go to step 6.

3. Determine possible failure area (passenger's air mix control motor, AMD-P-AS line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Passenger's air mix control motor 5P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the passenger's air mix control motor .

   NO

   Go to step 4.

4. Shorted wire check (AMD-P-AS line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Climate control unit connector B (24P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 3
   Test point 2	Body ground

   Is there 1 MΩ or more?

   YES

   The AMD-P-AS wire is not shorted to body ground. Go to step 5.

   NO

   Repair a short to body ground in the AMD-P-AS wire.

5. Shorted wire check (AMD-P-AS line to SENS-COM line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Passenger's air mix control motor 5P connector (female terminals) No. 1:
   Test point 2	Passenger's air mix control motor 5P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Replace the climate control unit .

   NO

   Repair a short in the AMD-P-AS wire to SENS-COM wire.

6. Open wire check (S5V line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 1
   Test point 2	Body ground

   Is there about 5 V?

   YES

   Repair an open in the S5V wire.

   NO

   The S5V wire is not open. Go to step 7.

7. Shorted wire check (S5V line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Climate control unit connector B (24P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   	Passenger's air mix control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 1
   Test point 2	Body ground

   Is there 1 MΩ or more?

   YES

   Replace the climate control unit .

   NO

   Repair a short to body ground in the S5V wire.
