Climate Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.
| Connector Index |
|---|
| Climate Control Unit Connector A (32P) |
| Climate Control Unit Connector B (24P) |

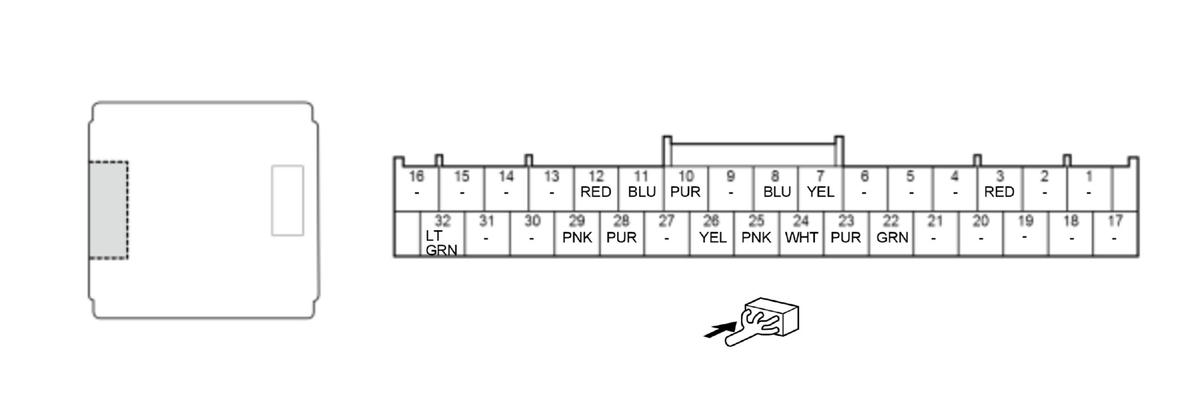

Climate Control Unit Connector A (32P) (female terminals)
| Cavity | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | ---- | ---- |
| 2 | Not used | ---- | ---- |
| 3 | EWP_PWM | Electric heater coolant pump communication signal | With vehicle in ON mode: pulses |
| 4 | Not used | ---- | ---- |
| 5 | Not used | ---- | ---- |
| 6 | Not used | ---- | ---- |
| 7 | HUM_DATA | Humidity/in-car temperature sensor communication signal | With vehicle in ON mode: pulses |
| 8 | B-CAN_L | B-CAN communication signal | With vehicle in ON mode: pulses |
| 9 | Not used | ---- | ---- |
| 10 *1 | TSUN | Detects sunlight sensor signal | With vehicle in ON mode, and no sunlight or the sensor covered up: 3.56 V With vehicle in ON mode, and sunlight on the sensor: less than 3.56 V |
| 11 | TAM | Detects outside air temperature sensor signal | With vehicle in ON mode: about 1.0-4.0 V (depending on outside air temperature) |
| 12 | SENSOR_ COM | Sensor ground | With vehicle in ON mode: less than 0.2 V |
| 13 | Not used | ---- | ---- |
| 14 | Not used | ---- | ---- |
| 15 | Not used | ---- | ---- |
| 16 | Not used | ---- | ---- |
| 17 | Not used | ---- | ---- |
| 18 | Not used | ---- | ---- |
| 19 | Not used | ---- | ---- |
| 20 | Not used | ---- | ---- |
| 21 | Not used | ---- | ---- |
| 22 | A/C_PTC2_RLY_CL- | Signal for PTC heater B relay | With vehicle in ON mode and PTC heater D relay ON: less than 0.2 V With vehicle in ON mode and PTC heater B relay OFF: battery voltage |
| 23 | A/C_PTC4_RLY_CL- | Signal for PTC heater D relay | With vehicle in ON mode and PTC heater D relay ON: less than 0.2 V With vehicle in ON mode and PTC heater D relay OFF: battery voltage |
| 24 | HUM_CLK | Humidity/in-car temperature sensor communication signal | With vehicle in ON mode: pulses |
*1: With automatic wiper
| Cavity | Terminal name | Description | Signal |
|---|---|---|---|
| 25 | B-CAN_H | B-CAN communication signal | With vehicle in ON mode: pulses |
| 26 | S 5V | Outputs sensor 5 V | With vehicle in ON mode: about 5.0 V |
| 27 | Not used | ---- | ---- |
| 28 | GND | Ground for climate control unit (G403) | With vehicle in ON mode: less than 0.2 V |
| 29 | BUS-DATA | BUS-DATA communication signal | ---- |
| 30 | Not used | ---- | ---- |
| 31 | Not used | ---- | ---- |
| 32 | IG2_A/C | IG2 power source | With vehicle in ON mode: battery voltage |
*1: With automatic wiper

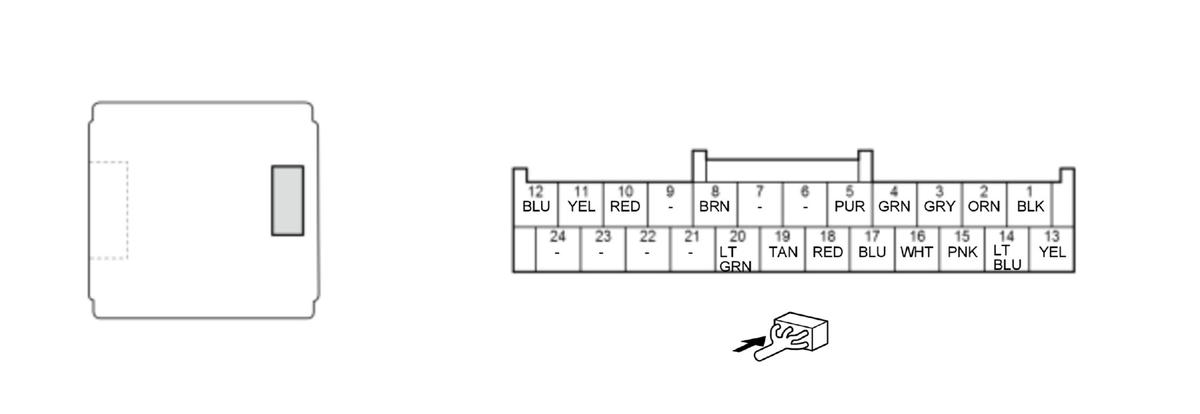

Climate Control Unit Connector B (24P) (female terminals)
| Cavity | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | S5V | Outputs sensor 5 V | With vehicle in ON mode: about 5.0 V |
| 2 | AMD-P-DR | Detects potentiometer signal of air mix control motor (door position) *1 | With vehicle in ON mode: about 0.5-4.5 V (depending on air mix control motor position) *1 |
| Detects potentiometer signal of driver's air mix control motor (door position) *2 | With vehicle in ON mode: about 0.5-4.5 V (depending on driver's air mix control motor position) *2 | ||
| 3 *2 | AMD-P-AS | Detects potentiometer signal of passenger's air mix control motor (door position) | With vehicle in ON mode: about 0.5-4.5 V (depending on passenger's air mix control motor position) |
| 4 | RFD-P | Detects potentiometer signal of recirculation control motor (door position) | With vehicle in ON mode: about 1.0-4.0 V (depending on recirculation control motor position |
| 5 | MDD-P | Detects potentiometer signal of mode control motor (door position) | With vehicle in ON mode: about 0.5-4.5 V (depending on mode control motor position) |
| 6 | Not used | ---- | ---- |
| 7 | Not used | ---- | ---- |
| 8 | TEVA | Detects evaporator temperature sensor signal | With vehicle in ON mode: about 1.0-4.0 V (depending on evaporator temperature) |
| 9 | Not used | ---- | ---- |
| 10 | SENS-COM | Sensor ground | With vehicle in ON mode: less than 0.2 V |
| 11 | BLW-G | Outputs power transistor gate voltage | With vehicle in ON mode and fan control dial *4, fan control icon *3, or fan control button *3 OFF: less than 0.2 V With vehicle in ON mode and fan control dial *4, fan control icon *3, or fan control button *3 ON: about 4.0 V-battery voltage (depending on blower motor control) |
*1: Without dual zone climate control
*2: With dual zone climate control
*3: Climate control panel without display
*4: Climate control panel with display
| Cavity | Terminal name | Description | Signal |
|---|---|---|---|
| 12 | BLW-V | Feedback signal of power transistor drain voltage | With vehicle in ON mode: about 0 V-battery voltage (depending on blower motor speed) |
| 13 | M-HOT-DR | Outputs to drive air mix control motor to HOT side *1 | With vehicle in ON mode and air mix control motor moving to HOT: battery voltage *1 |
| Outputs to drive driver's air mix control motor to HOT side *2 | With vehicle in ON mode and driver's air mix control motor moving to HOT: battery voltage *2 | ||
| 14 | M-COOL-DR | Outputs to drive air mix control motor to COOL side *1 | With vehicle in ON mode and air mix control motor moving to COOL: battery voltage *1 |
| Outputs to drive driver's air mix control motor to COOL side *2 | With vehicle in ON mode and driver's air mix control motor moving to COOL: battery voltage *2 | ||
| 15 *2 | M-HOT-AS | Outputs to drive passenger's air mix control motor to HOT side | With vehicle in ON mode and passenger's air mix control motor moving to HOT: battery voltage |
| 16 *2 | M-COOL-AS | Outputs to drive passenger's air mix control motor to COOL side | With vehicle in ON mode and passenger's air mix control motor moving to COOL: battery voltage |
| 17 | M-REC | Outputs to drive recirculation control motor to RECIRCULATE side | With vehicle in ON mode and recirculation control motor moving to RECIRCULATE: battery voltage |
| 18 | M-FRS | Outputs to drive recirculation control motor to FRESH side | With vehicle in ON mode and recirculation control motor moving to FRESH: battery voltage |
| 19 | M-VENT | Outputs to drive mode control motor to VENT side | With vehicle in ON mode and mode control motor moving to VENT: battery voltage |
| 20 | M-DEF | Outputs to drive mode control motor to DEF side | With vehicle in ON mode and mode control motor moving to DEF: battery voltage |
| 21 | Not used | ---- | ---- |
| 22 | Not used | ---- | ---- |
| 23 | Not used | ---- | ---- |
| 24 | Not used | ---- | ---- |
*1: Without dual zone climate control
*2: With dual zone climate control
*3: Climate control panel without display
*4: Climate control panel with display
