DTC B1220 (B-B5), B1220 (56)

DTC B1220, DTC screen B-B5, or DTC screen 56  : A Short in the recirculation control motor circuit

NOTE:  If other short circuit DTCs are indicated at the same time, there may be an open or short to body ground in the power S5V circuit.

DTC (AC)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Do the Self-Diagnostic Function with the HDS or the climate control unit .

   -4. Check for DTCs.

   DTC Description	DTC
   B1220 A Short in the recirculation control motor circuit

   Is DTC B1220, Error on the DTC screen B-B5 (climate control panel without display), or DTC screen 56 (climate control panel with display) indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure. Check for loose wires or poor connections on the recirculation control motor circuit.

2. Determine possible failure area (S5V line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Recirculation control motor 5P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Recirculation control motor 5P connector: disconnected

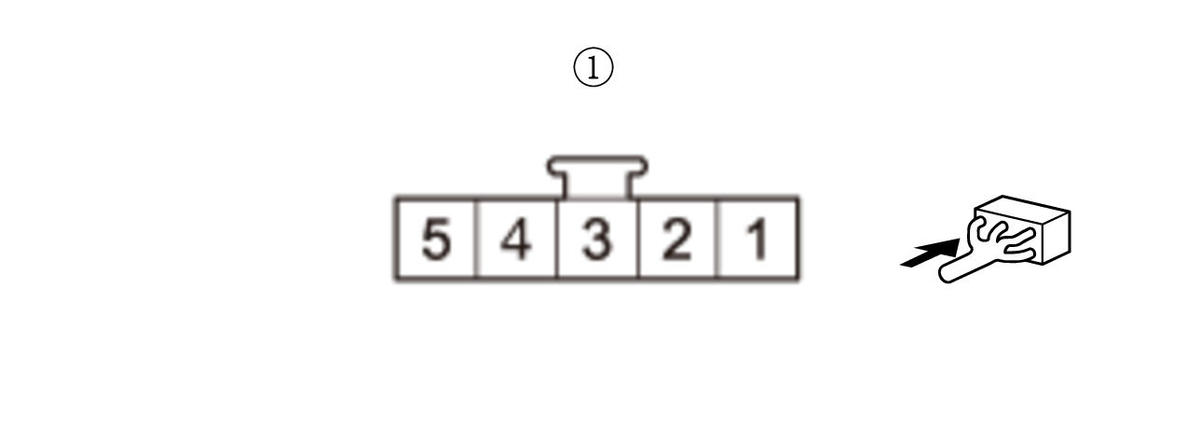

   Test point 1	Recirculation control motor 5P connector (female terminals) No. 3:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The S5V wire is OK. Go to step 3.

   NO

   Go to step 6.

3. Determine possible failure area (recirculation control motor, RFD-P line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Recirculation control motor 5P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the recirculation control motor .

   NO

   Go to step 4.

4. Shorted wire check (RFD-P line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Climate control unit connector B (24P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 4
   Test point 2	Body ground

   Is there 1 MΩ or more?

   YES

   The RFD-P wire is not shorted to body ground. Go to step 5.

   NO

   Repair a short to body ground in the RFD-P wire.

5. Shorted wire check (RFD-P line to SENS-COM line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Recirculation control motor 5P connector (female terminals) No. 1:
   Test point 2	Recirculation control motor 5P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Replace the climate control unit .

   NO

   Repair a short in the RFD-P wire to SENS-COM wire.

6. Open wire check (S5V line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 1
   Test point 2	Body ground

   Is there about 5 V?

   YES

   Repair an open in the S5V wire.

   NO

   The S5V wire is not open. Go to step 7.

7. Shorted wire check (S5V line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Climate control unit connector B (24P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   	Recirculation control motor 5P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 1
   Test point 2	Body ground

   Is there 1 MΩ or more?

   YES

   Replace the climate control unit .

   NO

   Repair a short to body ground in the S5V wire.
