DTC B121D (A-B6), B121D (89)

DTC B121D, DTC screen A-B6, or DTC indicator 89  : Humidity/In-Car Temperature Sensor Communication Error

DTC (AC)

1. Problem verification

   -1. Clear the DTC with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Do the Self-Diagnostic Function with the HDS or the climate control unit .

   -4. Check for DTCs.

   DTC Description	DTC
   B121D Humidity/in-car temperature sensor communication error

   Is DTC B121D, Error on the DTC screen A-B6 (climate control panel without display), or DTC indicator 89 (climate control panel with display) indicated?

   YES: Climate control panel without display

   The failure is duplicated. Go to step 2.

   YES: Climate control panel with display

   The failure is duplicated. Go to step 4.

   NO

   Intermittent failure. Check for loose wires or poor connections on the humidity/in-car temperature sensor circuit.

2. Climate control unit check 1

   -1. Turn the vehicle to the OFF (LOCK) mode after confirming the A/C system is OFF.

   -2. Disconnect the following connector.

   Humidity/in-car temperature sensor 4P connector

   -3. Turn the vehicle to the ON mode.

   -4. While pressing the WINDSHIELD DEFROST button, press and hold the ON/OFF button for 10 seconds or more.

   Is Normal on the DTC screen A-B7 indicated?

   YES

   Go to step 7.

   NO

   Go to step 3.

3. Climate control unit check 2

   -1. Turn the vehicle to the OFF (LOCK) mode after confirming the A/C system is OFF.

   -2. Connect terminals A and B with a jumper wire.

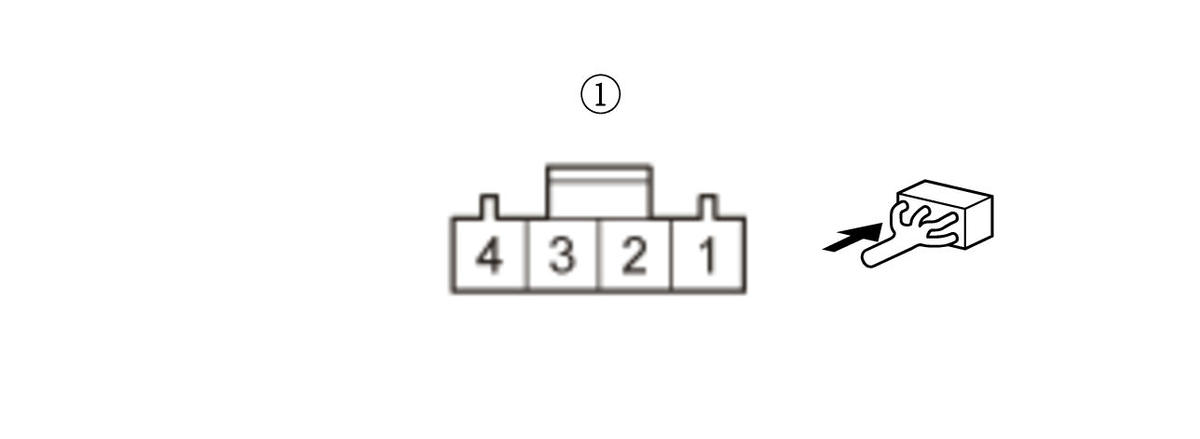

   Terminal A	Humidity/in-car temperature sensor 4P connector (female terminals) No. 2:
   Terminal B	Humidity/in-car temperature sensor 4P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   -3. Turn the vehicle to the ON mode.

   -4. While pressing the WINDSHIELD DEFROST button, press and hold the ON/OFF button for 10 seconds or more.

   Is Normal on the DTC screen A-B7 indicated?

   YES

   Go to step 6.

   NO

   Go to step 8.

4. Climate control unit check 1

   -1. Turn the vehicle to the OFF (LOCK) mode after confirming the A/C system is OFF.

   -2. Disconnect the following connector.

   Humidity/in-car temperature sensor 4P connector

   -3. Turn the vehicle to the ON mode.

   -4. While pressing the WINDSHIELD DEFROST button, press and hold the ON/OFF button for 10 seconds or more.

   Courtesy of HONDA, U.S.A., INC.

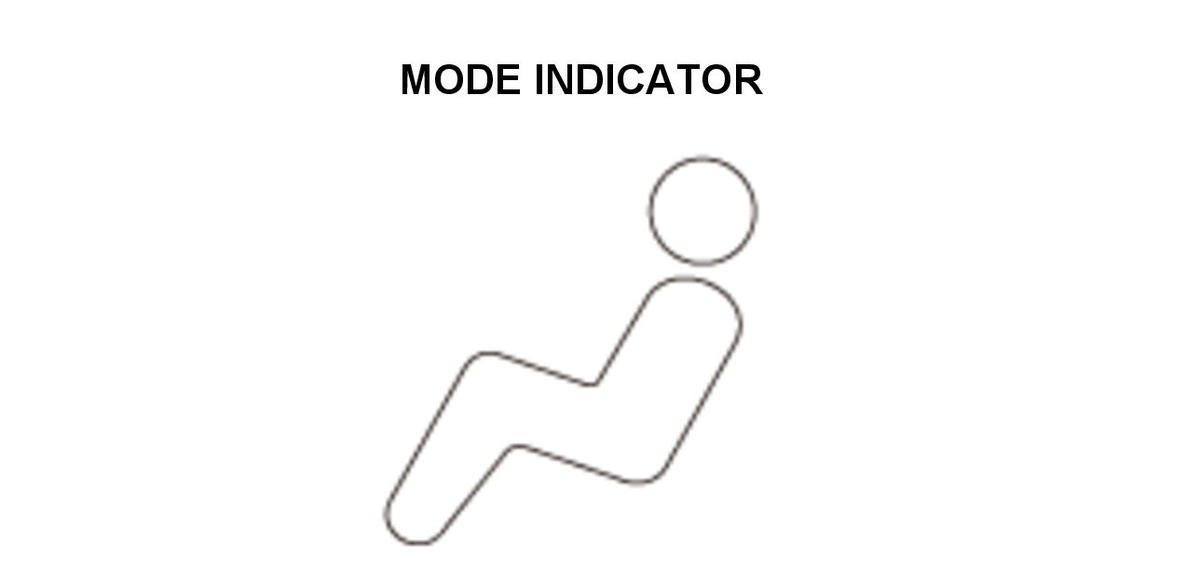

   Does the MODE indicator turn on?

   YES

   Go to step 7.

   NO

   Go to step 5.

5. Climate control unit check 2

   -1. Turn the vehicle to the OFF (LOCK) mode after confirming the A/C system is OFF.

   -2. Connect terminals A and B with a jumper wire.

   Terminal A	Humidity/in-car temperature sensor 4P connector (female terminals) No. 2:
   Terminal B	Humidity/in-car temperature sensor 4P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   -3. Turn the vehicle to the ON mode.

   -4. While pressing the WINDSHIELD DEFROST button, press and hold the ON/OFF button for 10 seconds or more.

   Courtesy of HONDA, U.S.A., INC.

   Does the MODE indicator turn on?

   YES

   Go to step 6.

   NO

   Go to step 8.

6. Determine possible failure area (humidity/in-car temperature sensor, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the jumper wire.

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Humidity/in-car temperature sensor 4P connector: disconnected
   Test point 1	Humidity/in-car temperature sensor 4P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the humidity/in-car temperature sensor .

   NO

   Go to step 12.

7. Shorted wire check (HUM_DATA line to HUM_CLK line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Climate control unit connector A (32P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector A (32P): disconnected
   	Humidity/in-car temperature sensor 4P connector: disconnected
   Test point 1	Climate control unit connector A (32P) No. 7
   Test point 2	Climate control unit connector A (32P) No. 24

   Is there 1 MΩ or more?

   YES

   Replace the climate control unit .

   NO

   Repair a short in the HUM_DATA wire to the HUM_CLK wire.

8. Open wire check (HUM_DATA line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the jumper wire from the humidity/in-car temperature sensor.

   -3. Disconnect the following connector.

   Climate control unit connector A (32P)

   -4. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector A (32P): disconnected
   	Humidity/in-car temperature sensor 4P connector: disconnected
   Test point 1	Climate control unit connector A (32P) No. 7
   Test point 2	Humidity/in-car temperature sensor 4P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The HUM_DATA wire is not open. Go to step 9.

   NO

   Repair an open in the HUM_DATA wire.

9. Open wire check (HUM_CLK line)

   -1. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector A (32P): disconnected
   	Humidity/in-car temperature sensor 4P connector: disconnected
   Test point 1	Climate control unit connector A (32P) No. 24
   Test point 2	Humidity/in-car temperature sensor 4P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The HUM_CLK wire is not open. Go to step 10.

   NO

   Repair an open in the HUM_CLK wire.

10. Shorted wire check (HUM_DATA line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Climate control unit connector A (32P): disconnected
    	Humidity/in-car temperature sensor 4P connector: disconnected
    Test point 1	Climate control unit connector A (32P) No. 7
    Test point 2	Body ground

    Is there 1 MΩ or more?

    YES

    The HUM_DATA wire is OK. Go to step 11.

    NO

    Repair a short to body ground in the HUM_DATA wire.

11. Shorted wire check (HUM_CLK line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Climate control unit connector A (32P): disconnected
    	Humidity/in-car temperature sensor 4P connector: disconnected
    Test point 1	Climate control unit connector A (32P) No. 24
    Test point 2	Body ground

    Is there 1 MΩ or more?

    YES

    Replace the climate control unit .

    NO

    Repair a short to body ground in the HUM_CLK wire.

12. Open wire check (S 5V line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Climate control unit connector A (32P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Climate control unit connector A (32P): disconnected
    	Humidity/in-car temperature sensor 4P connector: disconnected
    Test point 1	Climate control unit connector A (32P) No. 26
    Test point 2	Humidity/in-car temperature sensor 4P connector (female terminals) No. 1:

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The S 5V line is not open. Go to step 13.

    NO

    Repair an open in the S 5V wire.

13. Open wire check (SENSOR_COM line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Climate control unit connector A (32P): disconnected
    	Humidity/in-car temperature sensor 4P connector: disconnected
    Test point 1	Climate control unit connector A (32P) No. 12
    Test point 2	Humidity/in-car temperature sensor 4P connector (female terminals) No. 3:

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The SENSOR_COM wire is OK. Go to step 14.

    NO

    Repair an open in the SENSOR_COM wire.

14. Shorted wire check (S 5V line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Climate control unit connector A (32P): disconnected
    	Humidity/in-car temperature sensor 4P connector: disconnected
    Test point 1	Climate control unit connector A (32P) No. 26
    Test point 2	Body ground

    Is there 1 MΩ or more?

    YES

    Replace the climate control unit .

    NO

    Repair a short to body ground in the S 5V wire.
