DTC B296D (D-A2), B296D (68)

DTC B296D, DTC screen D-A2, or DTC screen 68  : Electric heater coolant Pump Communication Fail

DTC (AC)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Display audio type: Set the A/C icon and the fan control icon or the fan control button to ON.

   Color audio type: Set the A/C button and the fan control button to ON.

   -4. Wait for at least 30 seconds.

   -5. Do the Self-Diagnostic Function with the HDS or the climate control unit .

   -6. Check for the climate control unit DTCs.

   DTC Description	DTC
   B296D Electric heater coolant Pump Communication Fail

   Is DTC B296D, Error on the DTC screen D-A2 (climate control panel without display), or DTC screen 68 (climate control panel with display) indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time.

2. Fuse check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the following fuse.

   Fuse

   No. A23

   Is the fuse OK?

   YES

   Go to step 3.

   NO

   Replace the fuse, and recheck. If the fuse blows again, repair a short in the No. A23 fuse circuit.

3. Relay circuit board check

   -1. Remove the relay circuit board from the under-hood fuse/relay box, and test it .

   Is the relay circuit board OK?

   YES

   Go to step 4.

   NO

   Replace the relay circuit board .

4. Open wire check (+B A/C WATER PUMP line)

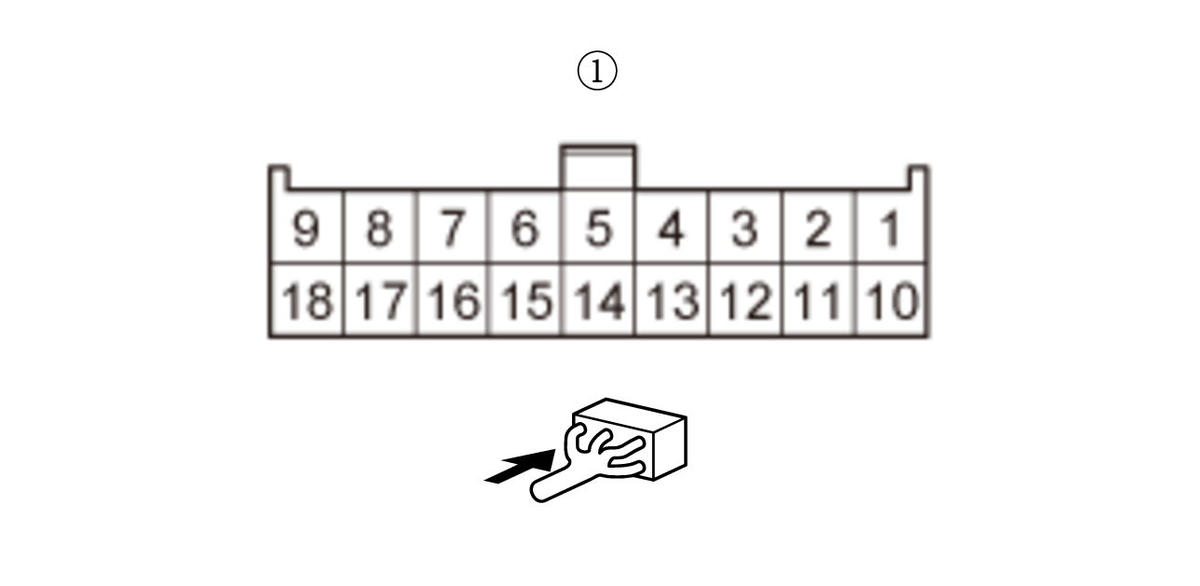

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Relay circuit board connector C (18P): disconnected
   Test point 1	Relay circuit board connector C (18P) (female terminals) No. 15:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B A/C WATER PUMP wire is OK. Go to step 5.

   NO

   Repair an open in the +B A/C WATER PUMP wire.

5. Open wire check (IG2_A/C line)

   -1. Turn the vehicle to the ON mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Relay circuit board connector C (18P): disconnected
   Test point 1	Relay circuit board connector C (18P) (female terminals) No. 6:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The IG2_A/C wire is OK. Go to step 6.

   NO

   Repair an open in the IG2_A/C wire.

6. Open wire check (GND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Relay circuit board connector C (18P): disconnected
   Test point 1	Relay circuit board connector C (18P) (female terminals) No. 8:

   Test point 2

   Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The GND wire is OK. Go to step 7.

   NO

   Check for an open in the GND wire. If the wire is OK, check for poor ground at G351.

7. Determine possible failure area (EWP_PWM line, A/C_WATER_PUMP line)

   -1. Reinstall the relay circuit board

   -2. Disconnect the following connector.

   Electric heater coolant pump 3P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Electric heater coolant pump 3P connector: disconnected
   Test point 1	Electric heater coolant pump 3P connector (female terminals) No. 1:
   Test point 2	Electric heater coolant pump 3P connector (female terminals) No. 3:

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The A/C_WATER_PUMP wire is OK. Go to step 8.

   NO

   Go to step 10.

8. Open wire check (EWP_PWM line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Climate control unit connector A (32P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector A (32P): disconnected
   	Electric heater coolant pump 3P connector: disconnected

   Test point 1	Climate control unit connector A (32P) No. 3
   Test point 2	Electric heater coolant pump 3P connector (female terminals) No. 2:

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The EWP_PWM wire is not open. Go to step 9.

   NO

   Repair an open in the EWP_PWM wire.

9. Shorted wire check (EWP_PWM line)

   -1. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector A (32P): disconnected
   	Electric heater coolant pump 3P connector: disconnected
   Test point 1	Climate control unit connector A (32P) No. 3
   Test point 2	Body ground

   Is there 1 MΩ or more?

   YES

   Replace the electric heater coolant pump , and recheck. If the DTC detected, replace the climate control unit .

   NO

   Repair a short to body ground in the EWP_PWM wire.

10. Open wire check (A/C_WATER_PUMP line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Electric heater coolant pump 3P connector: disconnected
    Test point 1	Electric heater coolant pump 3P connector (female terminals) No. 1:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Check for an open in the GND wire between the electric heater coolant pump and body ground. If the wire is OK, check for poor ground at G351

    NO

    Repair an open in the A/C_WATER_PUMP wire.
