DTC B2648

WARNING: This page is about a different variant/trim than selected.

DTC B2648  : Front sensor signal short to ground

NOTE:

DTC Description DTC
B2648 Front sensor signal short to ground

DTC (Parking and Back-Up Sensor Control Unit)

  1. Problem verification

    -1. Clear the DTCs with the HDS.

    -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

    -3. Wait for at least 6 seconds.

    -4. Check for DTCs with the HDS.

    DTC Description DTC
    B2648 Front sensor signal short to ground

    Is DTC B2648 indicated?

    YES

    Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for loose or poor connections.

  2. Shorted wire check (SOF_SIDE_L, E1_SIDE_L lines) 1

    -1. Disconnect the following connector.

    Parking and back-up sensor control unit 16P connector

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected

    Test point 1 Parking and back-up sensor control unit 16P connector No. 6
    Test point 2 Parking and back-up sensor control unit 16P connector No. 13

    Is there 1.0 MΩ or more?

    YES

    Go to step 10.

    NO

    Go to step 3.

  3. Shorted wire check (SOF_SIDE_R, E1_SIDE_R lines) 1

    -1. Disconnect the following connector.

    Right front center sensor 6P connector

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) modeted
    Parking and back-up sensor control unit 16P connector: disconnected
    Right front center sensor 6P connector: disconnected

    Test point 1 Right front center sensor 6P connector (female terminals) No. 3:
    Test point 2 Right front center sensor 6P connector (female terminals) No. 1:
    GHH380313Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 MΩ or more?

    YES

    Go to step 5.

    NO

    Go to step 4.

  4. Shorted wire check (SOF_SIDE_R, E1_SIDE_R lines) 2

    -1. Disconnect the following connector.

    Right front corner sensor 6P connector

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected
    Right front center sensor 6P connector: disconnected
    Right front corner sensor 6P connector: disconnected

    Test point 1 Right front center sensor 6P connector (female terminals) No. 3:
    Test point 2 Right front center sensor 6P connector (female terminals) No. 1:
    GHH380316Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 MΩ or more?

    YES

    Replace the right front corner sensor .

    NO

    Repair a short in the SOF_SIDE_R and E1_SIDE_R wires.

  5. Shorted wire check (SOF_CTR_R, E1_CTR_R lines) 1

    -1. Reconnect the following connector.

    Right front center sensor 6P connector

    -2. Disconnect the following connector.

    Left front center sensor 6P connector

    -3. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected
    Left front center sensor 6P connector: disconnected

    Test point 1 Left front center sensor 6P connector (female terminals) No. 3:
    Test point 2 Left front center sensor 6P connector (female terminals) No. 1:
    GHH380319Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 MΩ or more?

    YES

    Go to step 7.

    NO

    Go to step 6.

  6. Shorted wire check (SOF_CTR_R, E1_CTR_R lines) 2

    -1. Disconnect the following connector.

    Right front center sensor 6P connector

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected
    Left front center sensor 6P connector: disconnected
    Right front center sensor 6P connector: disconnected

    Test point 1 Left front center sensor 6P connector (female terminals) No. 3:
    Test point 2 Left front center sensor 6P connector (female terminals) No. 1:
    GHH380322Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 MΩ or more?

    YES

    Replace the right front center sensor .

    NO

    Repair a short in the SOF_CTR_R and E1_CTR_R wires.

  7. Shorted wire check (SOF_CTR_L, E1_CTR_L lines) 1

    -1. Reconnect the following connector.

    Left front center sensor 6P connector

    -2. Disconnect the following connector.

    Left front corner sensor 6P connector

    -3. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected
    Left front corner sensor 6P connector: disconnected

    Test point 1 Left front corner sensor 6P connector (female terminals) No. 3:
    Test point 2 Left front corner sensor 6P connector (female terminals) No. 1:
    GHH380325Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 MΩ or more?

    YES

    Go to step 9.

    NO

    Go to step 8.

  8. Shorted wire check (SOF_CTR_L, E1_CTR_L lines) 2

    -1. Disconnect the following connector.

    Left front center sensor 6P connector

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected
    Left front corner sensor 6P connector: disconnected
    Left front center sensor 6P connector: disconnected

    Test point 1 Left front corner sensor 6P connector (female terminals) No. 3:
    Test point 2 Left front corner sensor 6P connector (female terminals) No. 1:

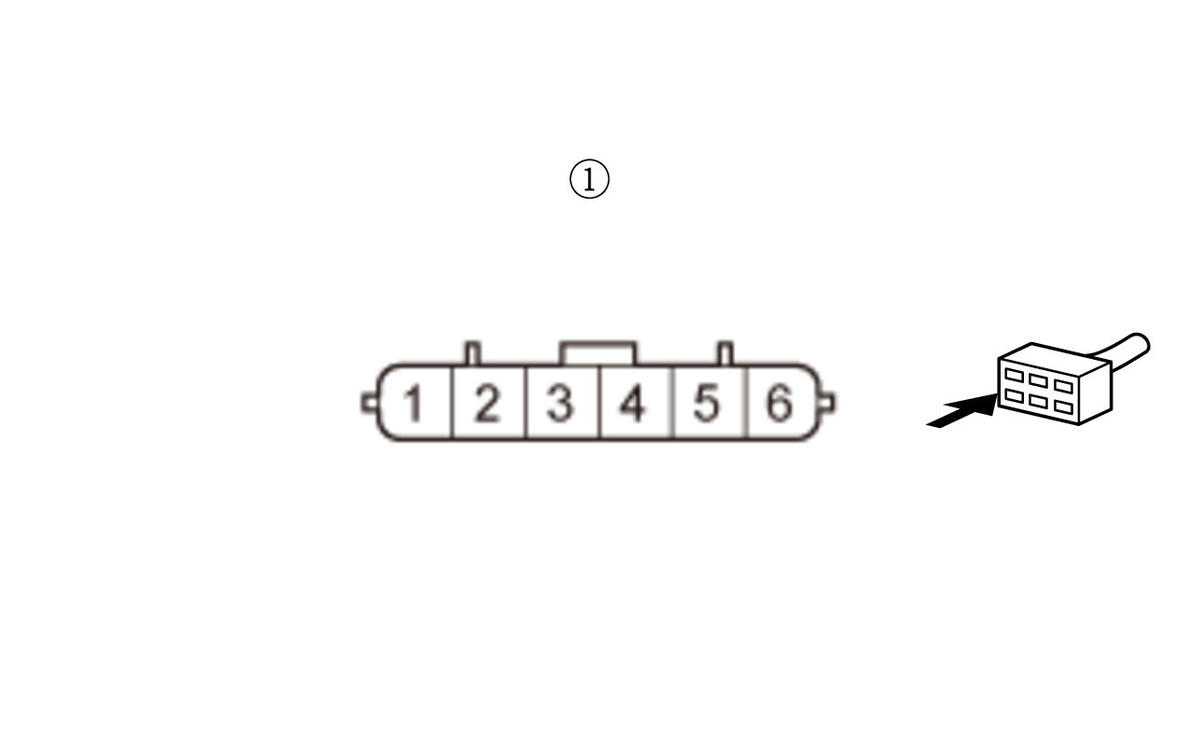

    GHH380328Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 MΩ or more?

    YES

    Replace the left front center sensor .

    NO

    Repair a short in the SOF_CTR_L and E1_CTR_L wires.

  9. Shorted wire check (SOF_SIDE_L, E1_SIDE_L lines) 2

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected
    Left front corner sensor 6P connector: disconnected

    Test point 1 Parking and back-up sensor control unit 16P connector No. 6
    Test point 2 Parking and back-up sensor control unit 16P connector No. 13

    Is there 1.0 MΩ or more?

    YES

    Replace the left front corner sensor .

    NO

    Repair a short in the SOF_SIDE_L and E1_SIDE_L wires.

  10. Shorted wire check (SOF_SIDE_L line)

    -1. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Parking and back-up sensor control unit 16P connector: disconnected

    Test point 1 Parking and back-up sensor control unit 16P connector No. 6
    Test point 2 Body ground

    Is there 1.0 MΩ or more?

    YES

    Replace the parking and back-up sensor control unit .

    NO

    Repair a short to ground in the SOF_SIDE_L wire.
