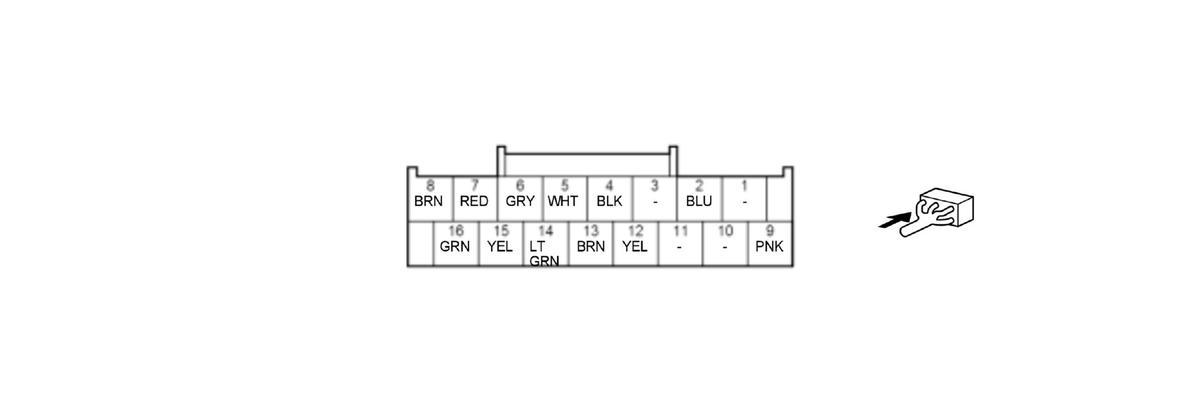

Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	---	Not used	---
2	B-CAN_L	Communication line	---
3	---	Not used	---
4	GND	Parking and back-up sensor control unit ground	Less than 0.2 V at all times
5	C/SNSR_IND	Outputs parking and back-up sensor switch indicator signal	Parking and back-up sensor switch indicator OFF: about battery voltage Parking and back-up sensor switch indicator ON: less than 0.2 V
6	SOF_SIDE_L	Detects front sensor signal	---
7	BOF_SIDE_L	Detects front sensor signal	---
8	IG1_METER	IG1 power source	With vehicle in ON mode: about battery voltage
9	B-CAN_H	Communication line	---
10	---	Not used	---
11	---	Not used	---
12	E2_SIDE_L	Detects rear sensor signal	---
13	E1_SIDE_L	Detects front sensor signal	---
14	SOR_SIDE_L	Detects rear sensor signal	---
15	C/SNSR_SW	Detects parking and back-up sensor switch signal	With vehicle in ON mode and parking and back-up sensor switch ON: about battery voltage With parking and back-up sensor switch OFF: less than 0.2 V
16	BOR_SIDE_L	Detects rear sensor signal	---
