Removal and Installation

NOTE:  SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1

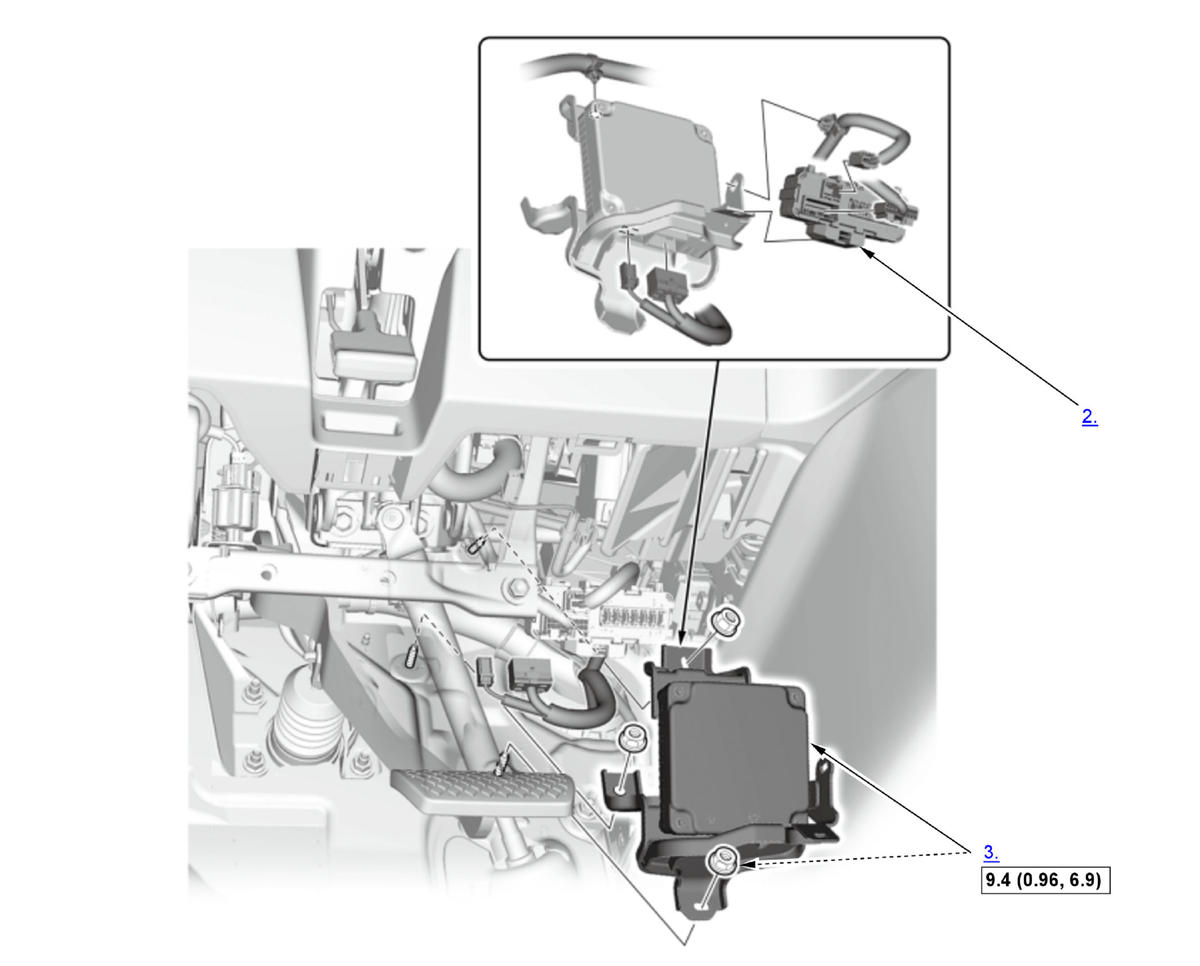

Fig 1: DC-DC Converter Replacement Components With Torque Specifications (With Auto Idle Stop System) (2020 2021)

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

1. Driver's Dashboard Undercover - Remove
2. Auxiliary Under-dash Fuse/Relay Box - Remove
3. DC-DC Converter - Remove
4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
