Removal and Installation

• Where icon is shown, for further information continue to the information below.
• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)

1. 12 Volt Battery Terminal - Disconnect
2. Driver's Dashboard Lower Cover - Remove

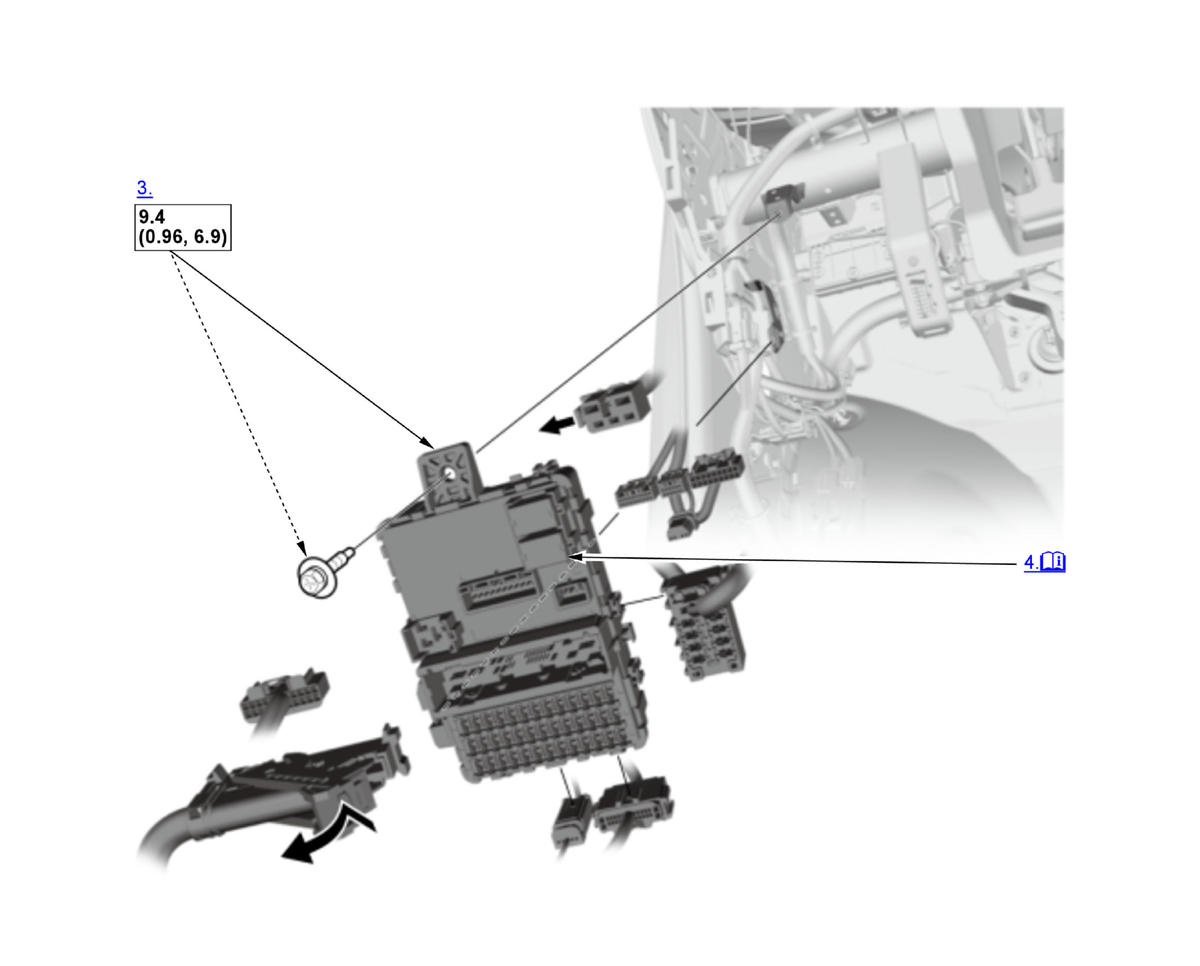

3. Under-Dash Fuse/Relay Box - Remove
4. Relays - Remove

   1. Carefully remove the relays using the relay puller tool. NOTE:  Do not use pliers. Pliers will damage the relays, which could cause the engine to stall, not start, or cause other functions to fail.

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
