VSA System Symptom Troubleshooting - ABS indicator, brake system indicator (red), VSA indicator, and brake system indicator (amber) do not go off (With CAN Gateway (Without Auto Idle Stop System))

ABS indicator, brake system indicator (red), VSA indicator, and brake system indicator (amber) do not go off

1. DTC check (VSA modulator-control unit)

   -1. Turn the vehicle to the ON mode.

   -2. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame

   Is DTC indicated?

   YES

   Go to indicated DTC's troubleshooting.

   NO

   Go to step 2.

2. DTC check (CAN gateway system)

   -1. Check for CAN gateway system DTCs with the HDS.

   DTC Description	DTC

   Is DTC indicated?

   YES

   Go to indicated DTC's troubleshooting.

   NO

   Go to step 3.

3. Gauge control module operation check

   -1. Do the gauge control module self-diagnostic function .

   Is the gauge control module OK?

   YES

   Go to step 4.

   NO

   Replace the gauge control module .

4. Fuse check 1

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the following fuse.

   Fuse	No. A3-2 (40 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   The fuse is OK. Reinstall the fuse, then go to step 5.

   NO

   Replace the fuse. If the fuse blows again, repair a short to ground in the No. A3-2 (40 A) fuse circuit.

5. Fuse check 2

   -1. Check the following fuse.

   Fuse	No. D34 (10 A)
   Location	Under-dash fuse/relay box

   Is the fuse OK?

   YES

   The fuse is OK. Reinstall the fuse, then go to step 6.

   NO

   Replace the fuse. Turn the vehicle to the ON mode, then to the OFF (LOCK) mode. If the fuse blows again, repair a short to ground in the No. D34 (10 A) fuse circuit.

6. Open wire check (IG1 VSA/ABS line)

   -1. Disconnect the following connector.

   VSA modulator-control unit 46P connector

   -2. Turn the vehicle to the ON mode.

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	VSA modulator-control unit 46P connector: disconnected
   Test point 1	VSA modulator-control unit 46P connector No. 14
   Test point 2	Body ground

   Is there battery voltage?

   YES

   The IG1 VSA/ABS wire is OK. Go to step 7.

   NO

   Repair an open in the wire between the No. D34 (10 A) fuse in the under-dash fuse/relay box and the VSA modulator-control unit.

7. Open wire check (+B ABS/VSA FSR line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	VSA modulator-control unit 46P connector: disconnected
   Test point 1	VSA modulator-control unit 46P connector No. 1
   Test point 2	Body ground

   Is there battery voltage?

   YES

   The +B ABS/VSA FSR wire is OK. Go to step 8.

   NO

   Repair an open in the wire between the under-hood fuse/relay box and the VSA modulator-control unit.

8. Open wire check (GND line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	VSA modulator-control unit 46P connector: disconnected
   Test point 1	VSA modulator-control unit 46P connector No. 2
   Test point 2	Body ground

   Is there continuity?

   YES

   The GND wire is OK. Go to step 9.

   NO

   Repair an open in the wire between the VSA modulator-control unit and body ground (G201).

9. F-CAN circuit communication check

   -1. Reconnect the following connector.

   VSA modulator-control unit 46P connector

   -2. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

   F-CAN Bus Connected Unit Check

   Which result is indicated?

   Gauge control module (Bus A) is Not Available

   Go to step 10.

   VSA modulator-control unit (Bus A) is Not Available

   Go to step 11.

   VSA modulator-control unit (Bus B) is Not Available

   Go to step 12.

   VSA modulator-control unit and gauge control module are Available

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

10. Open wire check (F-CAN A_H, F-CAN A_L lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Gauge control module connector A (32P)

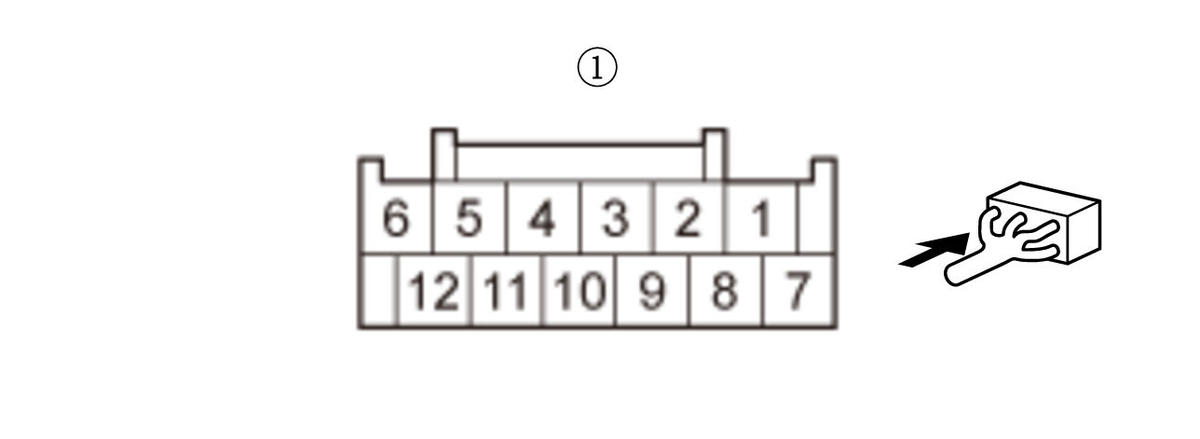

    CAN gateway 12P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Gauge control module connector A (32P): disconnected
    	CAN gateway 12P connector: disconnected
    Test circuit 1
    Test point 1	Gauge control module connector A (32P) No. 19
    Test point 2	CAN gateway 12P connector (female terminals) No. 3:

    Test circuit 2
    Test point 1	Gauge control module connector A (32P) No. 20
    Test point 2	CAN gateway 12P connector (female terminals) No. 9:

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The F-CAN A_H and F-CAN A_L wires are OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good gauge control module , then recheck. If the symptom/indication goes away with a known-good gauge control module, replace the original gauge control module .

    NO

    Repair an open in the wire between the gauge control module and the CAN gateway.

11. Open wire check (F-CAN A_H, F-CAN A_L lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    VSA modulator-control unit 46P connector

    CAN gateway 12P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	VSA modulator-control unit 46P connector: disconnected
    	CAN gateway 12P connector: disconnected
    Test circuit 1
    Test point 1	VSA modulator-control unit 46P connector No. 40
    Test point 2	CAN gateway 12P connector (female terminals) No. 3:

    Test circuit 2
    Test point 1	VSA modulator-control unit 46P connector No. 28
    Test point 2	CAN gateway 12P connector (female terminals) No. 9:

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The F-CAN A_H and F-CAN A_L wires are OK. Check for loose terminals and poor connections in the VSA modulator-control unit 46P connector. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace the VSA modulator-control unit .

    NO

    Repair an open in the wire between the VSA modulator-control unit and the CAN gateway.

12. Open wire check (F-CAN B_H, F-CAN B_L lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    VSA modulator-control unit 46P connector

    CAN gateway 12P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	VSA modulator-control unit 46P connector: disconnected
    	CAN gateway 12P connector: disconnected
    Test circuit 1
    Test point 1	VSA modulator-control unit 46P connector No. 46
    Test point 2	CAN gateway 12P connector (female terminals) No. 12:

    Test circuit 2
    Test point 1	VSA modulator-control unit 46P connector No. 34
    Test point 2	CAN gateway 12P connector (female terminals) No. 5:

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The F-CAN B_H and F-CAN B_L wires are OK. Check for loose terminals and poor connections in the VSA modulator-control unit 46P connector. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace the VSA modulator-control unit .

    NO

    Repair an open in the wire between the VSA modulator-control unit and the CAN gateway.
