DTC C1270-15

DTC C1270-15  : Automatic Brake Hold Switch Signal Circuit Open

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC (VSA)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   -4. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame
   C1270-15 Automatic Brake Hold Switch Signal Circuit Open

   Is DTC C1270-15 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting . If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Automatic brake hold switch check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the automatic brake hold switch .

   Is the automatic brake hold switch OK?

   YES

   Go to step 3.

   NO

   Replace the electric parking brake/automatic brake hold switch .

3. Open wire check (BRAKE HOLD line) 1

   -1. Disconnect the following connector.

   Electric parking brake/automatic brake hold switch 12P connector

   -2. Turn the vehicle to the ON mode.

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Electric parking brake/automatic brake hold switch 12P connector: disconnected

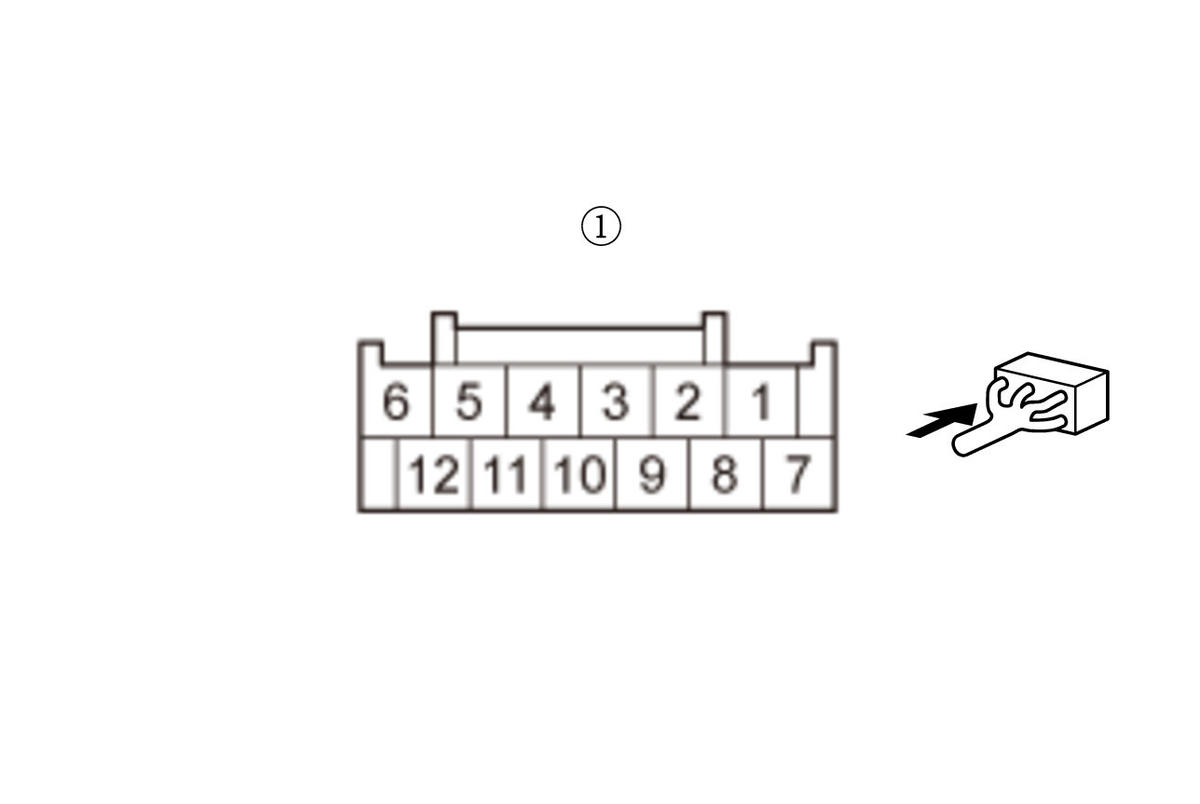

   Test point 1	Electric parking brake/automatic brake hold switch 12P connector (female terminals) No. 7:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The BRAKE HOLD wire is OK. Go to step 4.

   NO

   Go to step 5.

   NO

   Go to step 6.

4. Open wire check (GND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Electric parking brake/automatic brake hold switch 12P connector: disconnected
   Test point 1	Electric parking brake/automatic brake hold switch 12P connector (female terminals) No. 8:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good gauge control module , then recheck. If the symptom/indication goes away with a known-good gauge control module, replace the original gauge control module .

   NO

   Repair an open in the wire between the electric parking brake/automatic brake hold switch and body ground (G402).

5. Shorted wire check (BRAKE HOLD line to power)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Gauge control module connector A (32P)

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Electric parking brake/automatic brake hold switch 12P connector: disconnected
   	Gauge control module connector A (32P): disconnected
   Test point 1	Electric parking brake/automatic brake hold switch 12P connector (female terminals) No. 7:

   Test point 2

   Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 0.1 V or more?

   YES

   Repair a short to power in the wire between the electric parking brake/automatic brake hold switch and the gauge control module.

   NO

   The BRAKE HOLD wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good gauge control module , then recheck. If the symptom/indication goes away with a known-good gauge control module, replace the original gauge control module .

6. Open wire check (BRAKE HOLD line) 2

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Gauge control module connector A (32P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Electric parking brake/automatic brake hold switch 12P connector: disconnected
   	Gauge control module connector A (32P): disconnected
   Test point 1	Electric parking brake/automatic brake hold switch 12P connector (female terminals) No. 7:
   Test point 2	Gauge control module connector A (32P) No. 12

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The BRAKE HOLD wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good gauge control module , then recheck. If the symptom/indication goes away with a known-good gauge control module, replace the original gauge control module .

   NO

   Repair an open in the wire between the electric parking brake/automatic brake hold switch and the gauge control module.
