Removal and Installation

NOTE:

• How to read the torque specifications .
• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Panoramic Glass Front Glass - Remove
2. Panoramic Glass Sunshade - Remove
3. Panoramic Glass Drain Channel - Remove

   Courtesy of HONDA, U.S.A., INC.

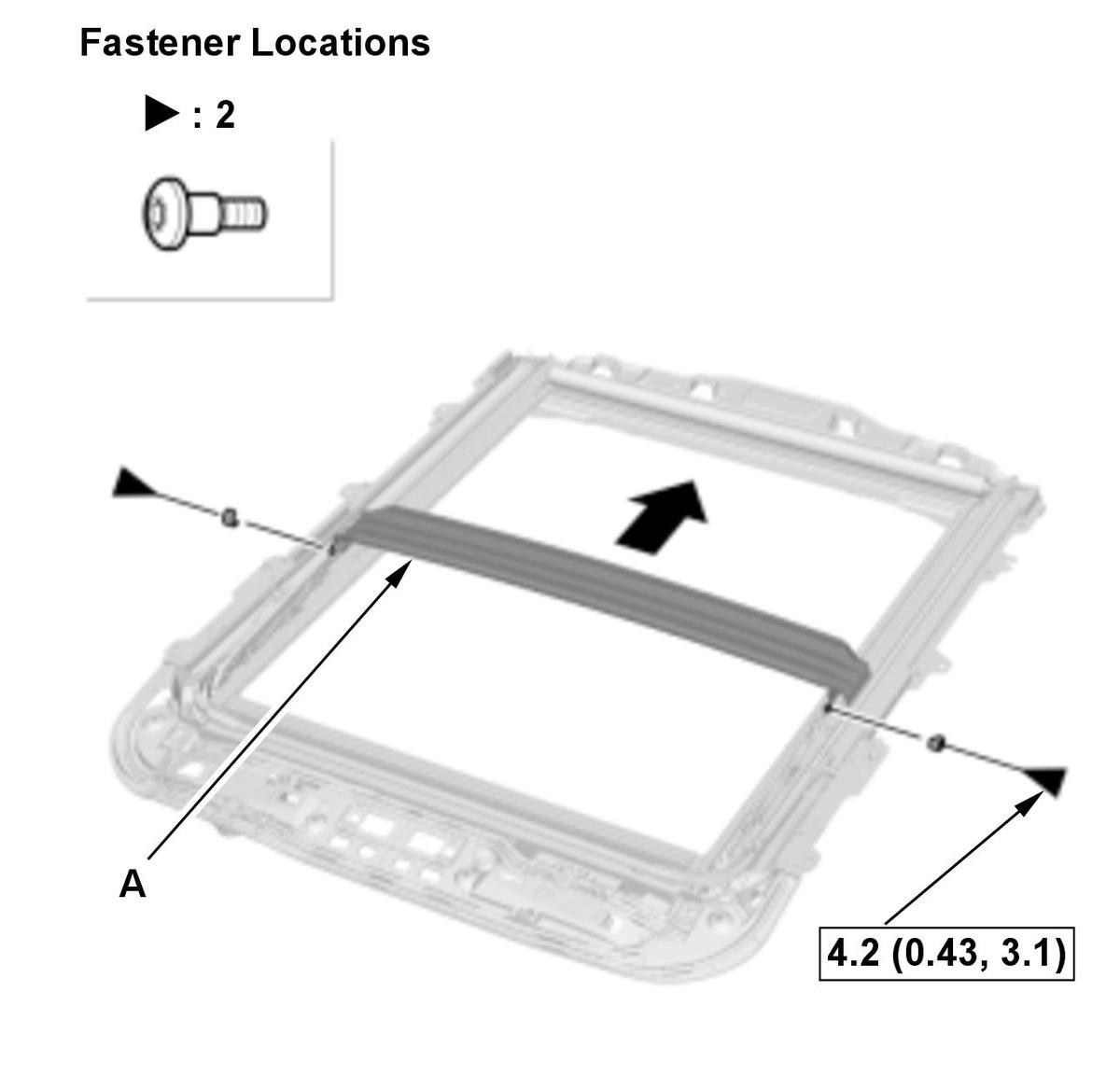

   1. Remove the front drain channel (A).

   Courtesy of HONDA, U.S.A., INC.

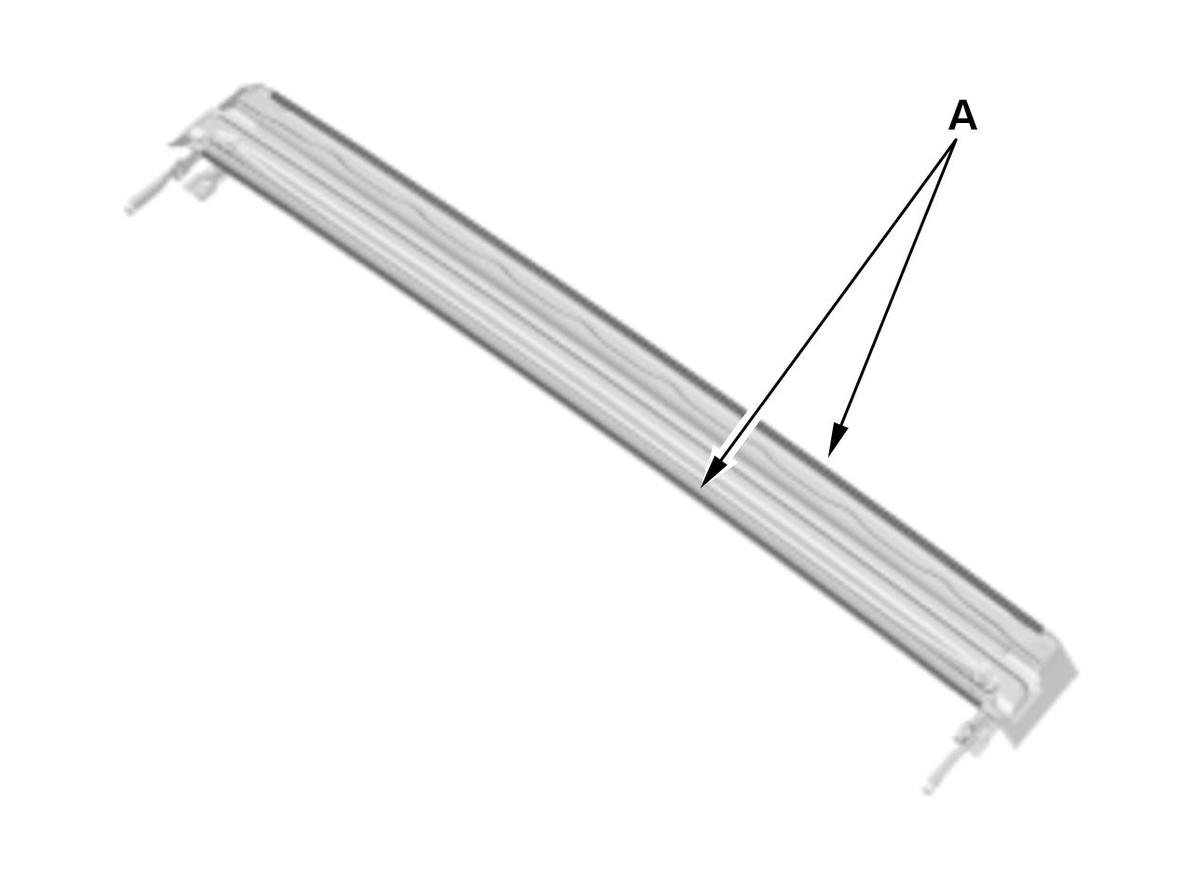

   2. If necessary, remove the drain channel seals (A).

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

5. Panoramic Glass Glass Position - Adjust
