Removal and Installation

NOTE:

• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
• If the immobilizer-keyless control unit is replaced, do the immobilizer system registration . If the original immobilizer-keyless control unit is installed, confirm that all systems work properly.

1

Courtesy of HONDA, U.S.A., INC.

1. Column Covers - Remove

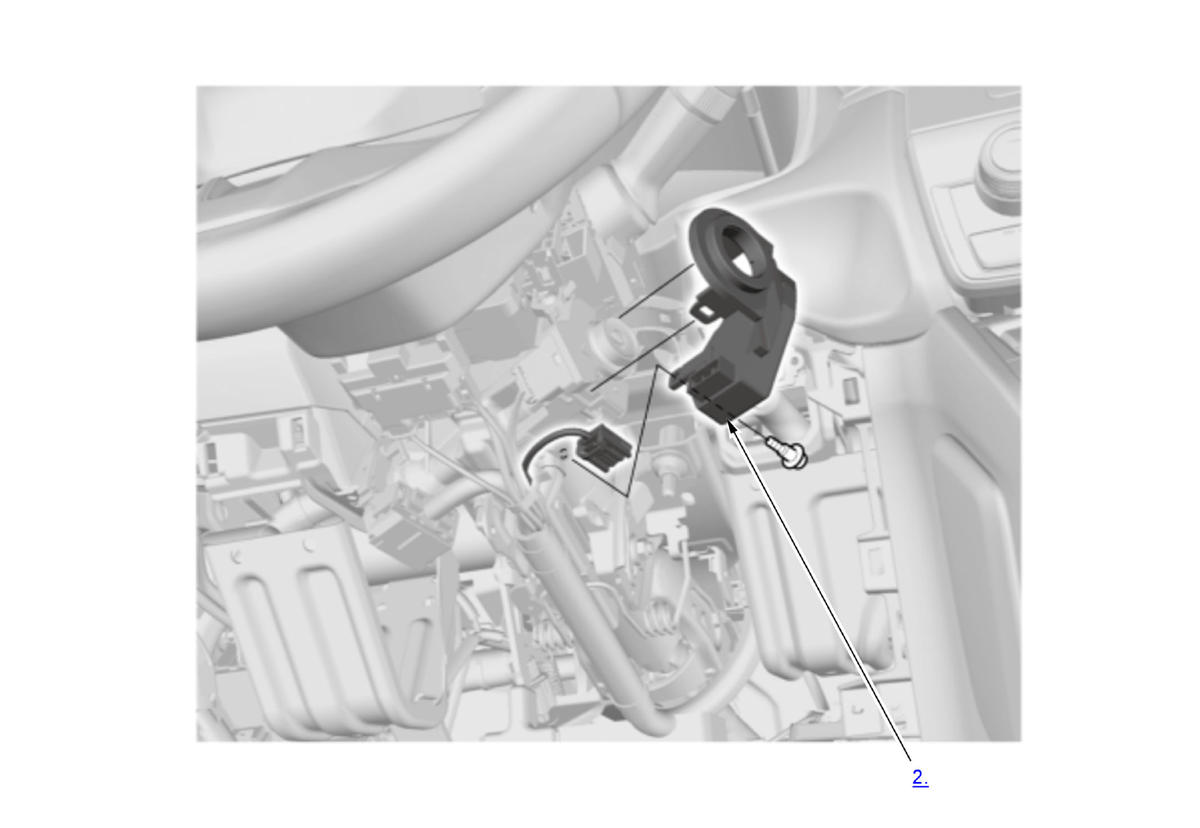

2. Immobilizer-Keyless Control Unit - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

4. Immobilizer System - Register
