Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:  USB adapter holder (one USB) with auxiliary jack assembly, refer to Auxiliary Jack Assembly Removal and Installation .

1

USB Adapter Holder (two USB) (Without USB port light)

Courtesy of HONDA, U.S.A., INC.

USB Adapter Holder (one USB without auxiliary jack assembly) (Without USB port light)

Courtesy of HONDA, U.S.A., INC.

2

USB Adapter Holder (USB port A/B) (With USB port light)

Courtesy of HONDA, U.S.A., INC.

Without USB Port Light

1. Center Console Panel - Remove

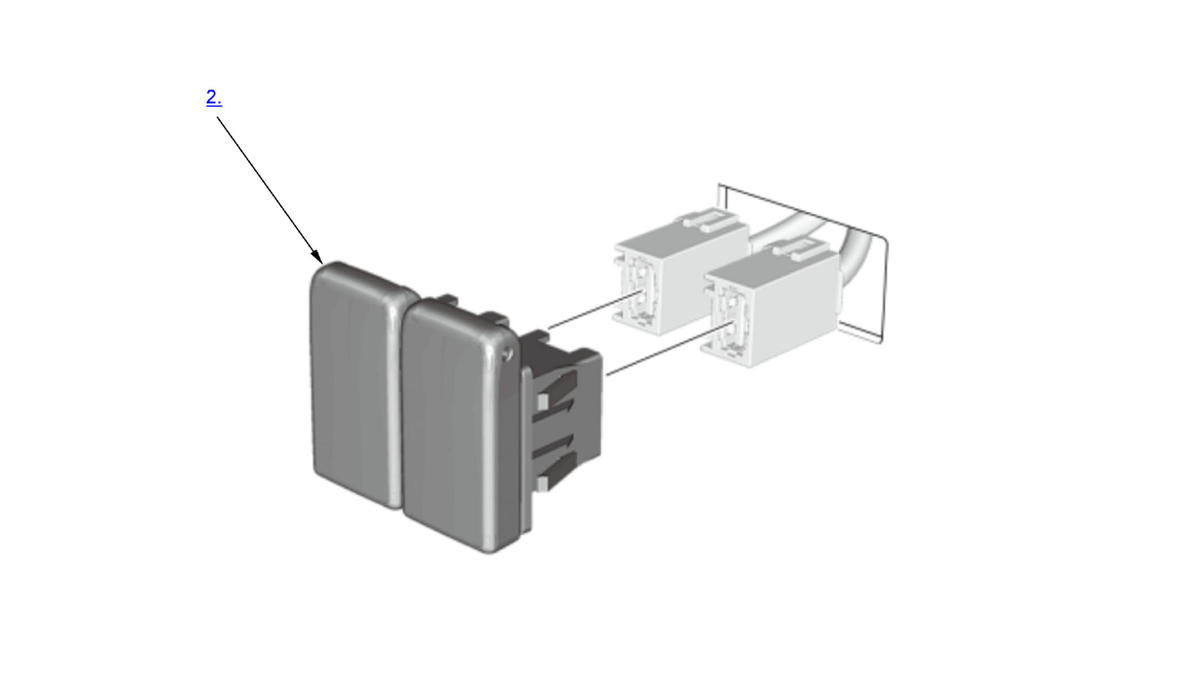

2. USB Adapter Holder (two USB) - Remove

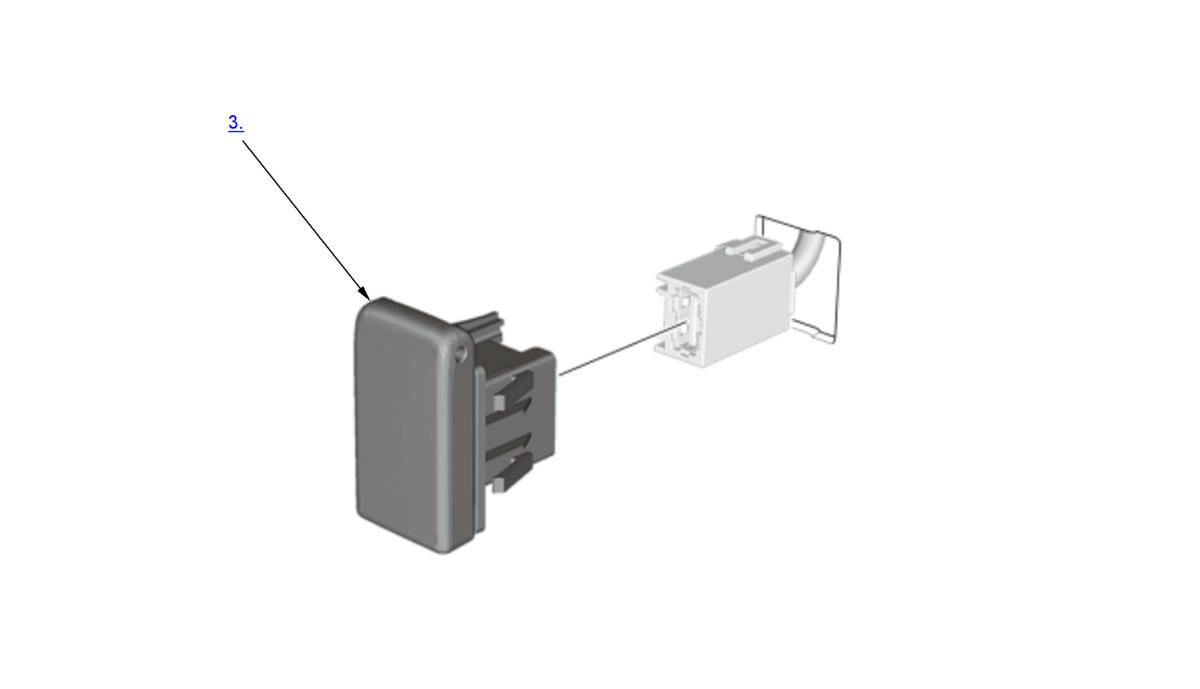

3. USB Adapter Holder (one USB without auxiliary jack assembly) - Remove
4. All Removed Parts - Install

   Install the parts in the reverse order of removal.

   With USB Port Light

5. Dashboard Center Lower Panel - Remove
6. USB Adapter Holder (USB port A/B) - Remove
7. All Removed Parts - Install

   Install the parts in the reverse order of removal.
