DTC P0589-15

DTC P0589-15  : Main Switch Signal Circuit Open

NOTE:

• Before you troubleshoot, review the general troubleshooting information .
• The functions of the integrated driver support system that will be temporarily canceled when this DTC is recorded can be confirmed with the DTC troubleshooting index .

DTC (IDAS)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode, then wait for at least 6 seconds.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   P0589-15 Main Switch Signal Circuit Open

   Is DTC P0589-15 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

2. Open wire check (CRUISE SW line) 1

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   ACC combination switch 12P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected

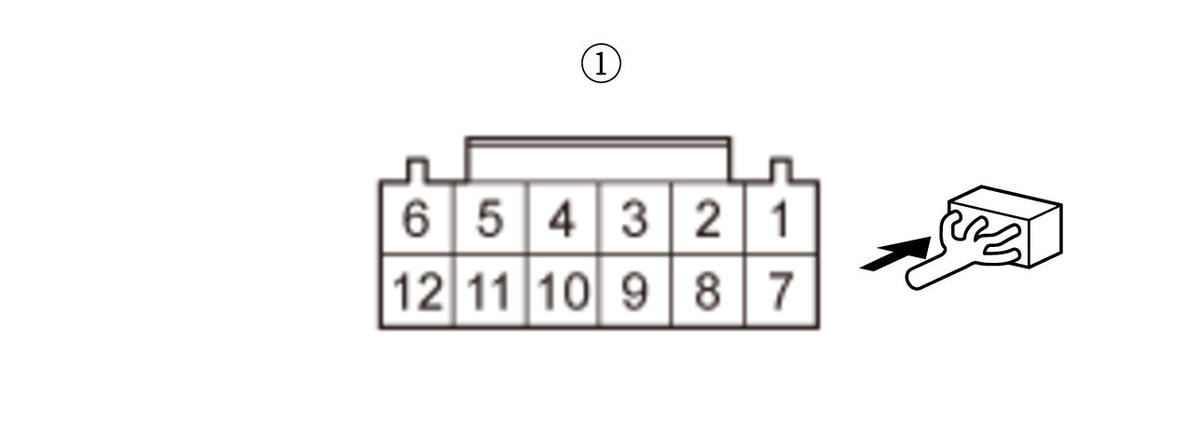

   Test point 1	ACC combination switch 12P connector (female terminals) No. 6:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Go to step 3.

   NO

   Go to step 7.

3. ACC combination switch circuit check

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected
   Test point 1	ACC combination switch 12P connector (female terminals) No. 6:
   Test point 2	ACC combination switch 12P connector (female terminals) No. 5:

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the ACC combination switch .

   NO

   Go to step 4.

4. Open wire check (CRUISE GND line) 1

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Cable reel connector D (20P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	ACC combination switch 12P connector: disconnected
   	Cable reel connector D (20P) connector: disconnected
   Test point 1	ACC combination switch 12P connector (female terminals) No. 5:

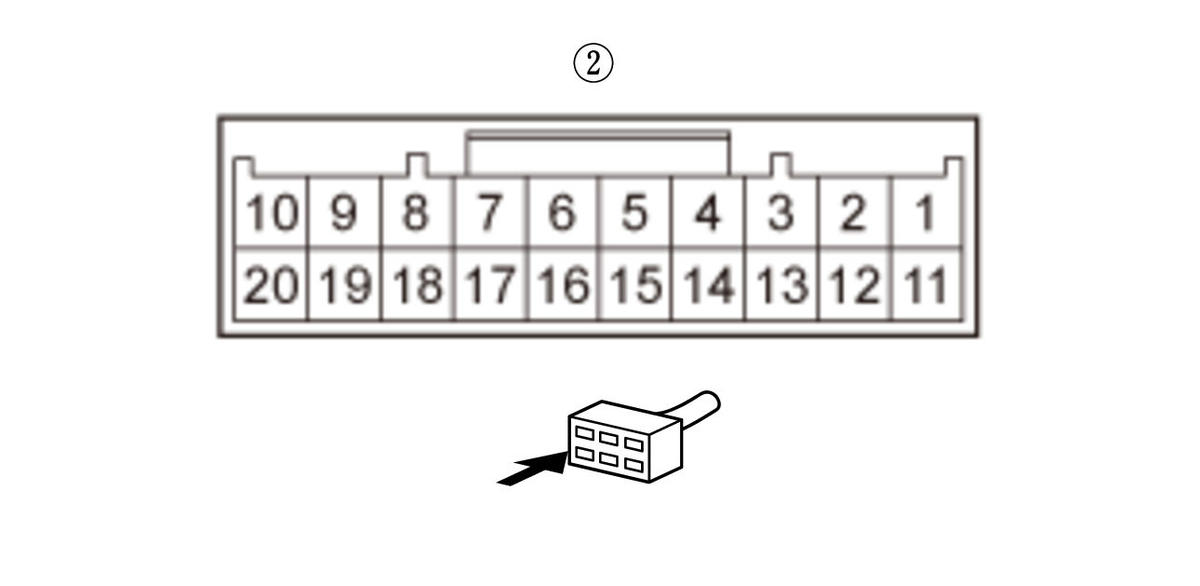

   Test point 2	Cable reel connector D (20P) (female terminals) No. 17:

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 5.

   NO

   Repair an open in the CRUISE GND wire between the ACC combination switch and the cable reel.

5. Cable reel check

   -1. Remove the cable reel .

   -2. On the cable reel side, check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	ACC combination switch 12P connector: disconnected
   	Cable reel connector D (20P) connector: disconnected
   	Cable reel connector A (20P) connector: disconnected

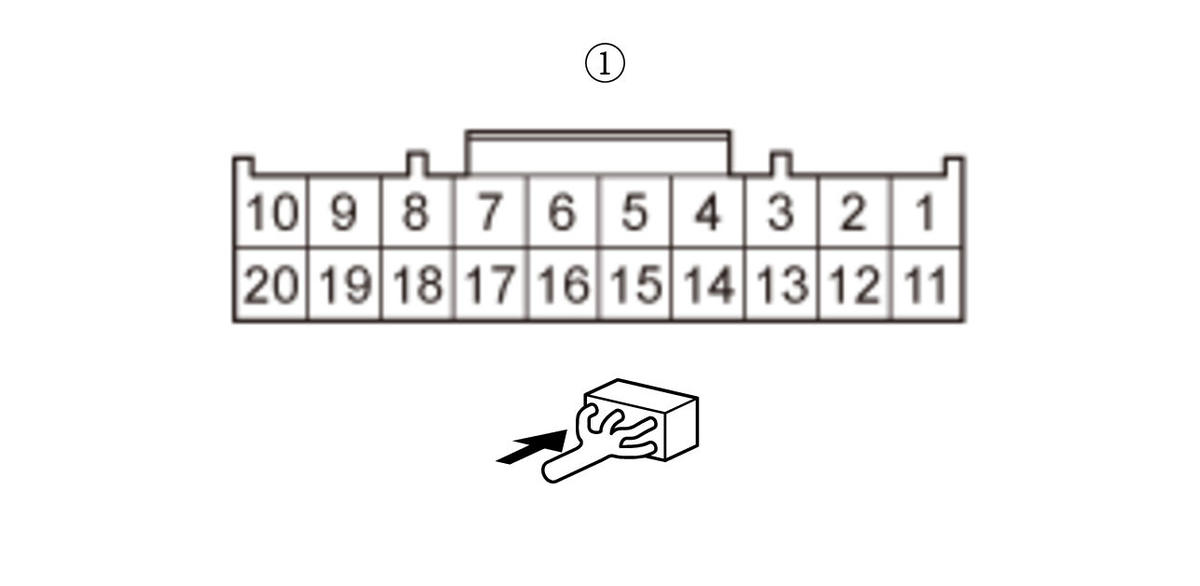

   Test point 1	Cable reel connector A (20P) (male terminals) No. 5:
   Test point 2	Cable reel connector D (20P) (male terminals) No. 17:

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 6.

   NO

   Replace the cable reel .

6. Open wire check (CRUISE GND line) 2

   -1. Disconnect the following connector.

   Gauge control module connector A (32P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	ACC combination switch 12P connector: disconnected
   	Cable reel connector D (20P) connector: disconnected
   	Cable reel connector A (20P) connector: disconnected
   	Gauge control module connector A (32P): disconnected
   Test point 1	Gauge control module connector A (32P) No. 5
   Test point 2	Cable reel connector A (20P) (female terminals) No. 5:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the gauge control module .

   NO

   Repair an open in the CRUISE GND wire between the gauge control module and the cable reel.

7. Open wire check (CRUISE SW line) 2

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Cable reel connector D (20P)

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected
   	Cable reel connector D (20P) connector: disconnected

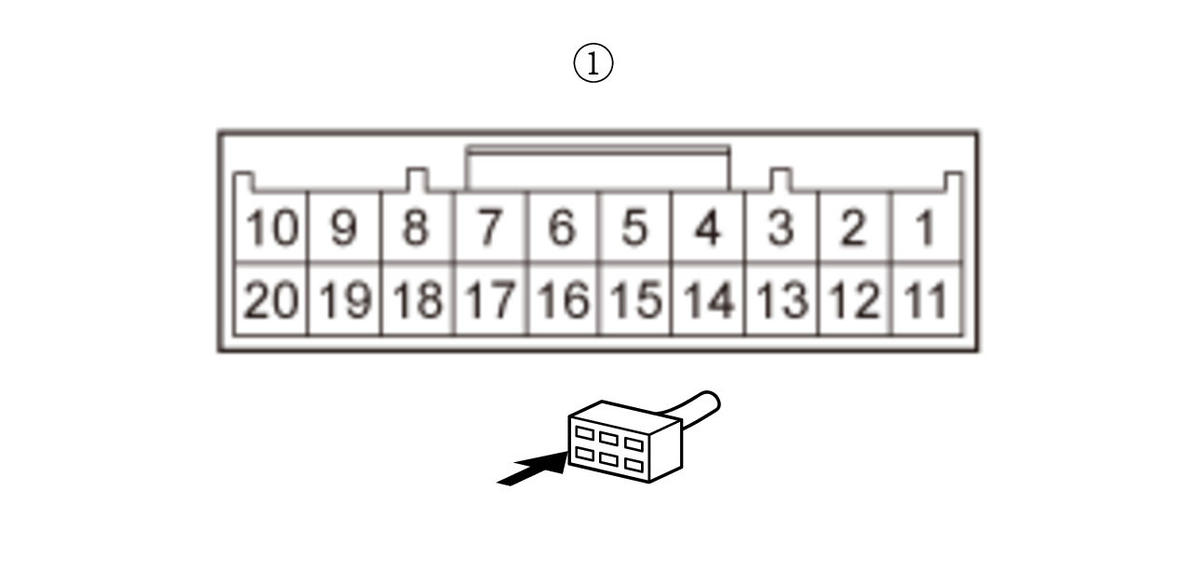

   Test point 1	Cable reel connector D (20P) (male terminals) No. 16:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Repair an open in the CRUISE SW wire between the ACC combination switch and the cable reel.

   NO

   Go to step 8.

8. Open wire check (CRUISE SW line) 3

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Cable reel connector A (20P)

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected
   	Cable reel connector D (20P) connector: disconnected
   	Cable reel connector A (20P) connector: disconnected

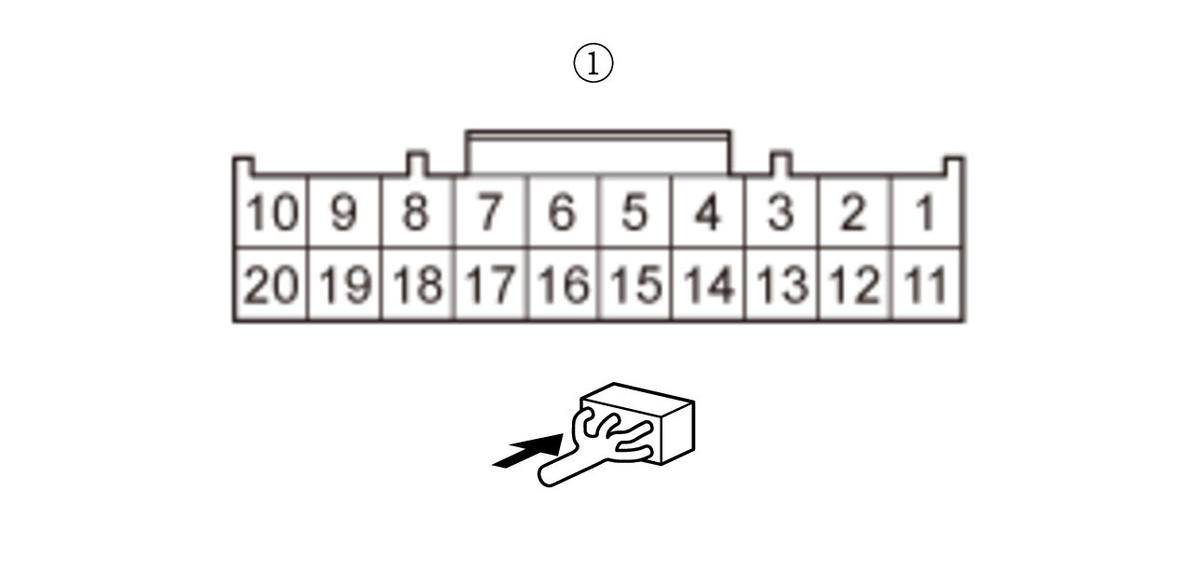

   Test point 1	Cable reel connector A (20P) (female terminals) No. 4:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the cable reel .

   NO

   Go to step 9.

9. Open wire check (CRUISE SW line) 4

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Gauge control module connector A (32P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF mode
   	ACC combination switch 12P connector: disconnected
   	Cable reel connector D (20P) connector: disconnected
   	Cable reel connector A (20P) connector: disconnected
   	Gauge control module connector A (32P): disconnected
   Test point 1	Gauge control module connector A (32P) No. 14
   Test point 2	Cable reel connector A (20P) (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the gauge control module .

   NO

   Repair an open in the CRUISE SW wire between the gauge control module and the cable reel.
