Removal and Installation

NOTE:

• Where icon is shown, for further information continue to the information below.
• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
• Do the installation operation after reconnecting the 12 volt battery terminal .

1

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

1. 12 Volt Battery Terminal - Disconnect

   Note for installation

   Do reconnection procedure after reconnecting the 12 volt battery terminal.

2. Driver's Dashboard Lower Cover - Removal

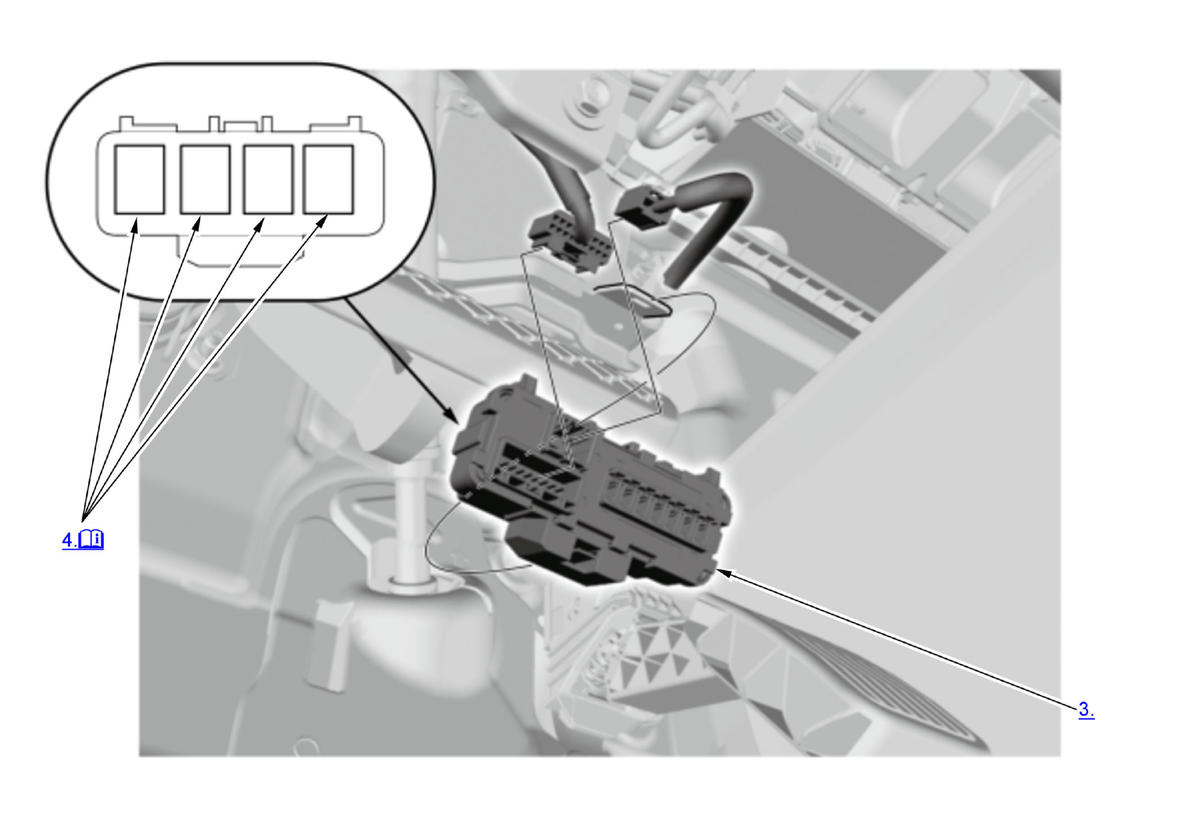

3. Auxiliary Under-Dash Fuse/Relay Box - Remove
4. Relays - Remove

   1. Carefully remove the relays using the relay puller tool. NOTE:  Do not use pliers. Pliers will damage the relays, which could cause the engine to stall, not start, or cause other functions to fail.

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
