Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat-Back Cover/Pad - Remove

Courtesy of HONDA, U.S.A., INC.

1. From under the seat cushion, release the elastic strap (A) from the seat cushion frame springs (B).

Driver's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Passenger's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

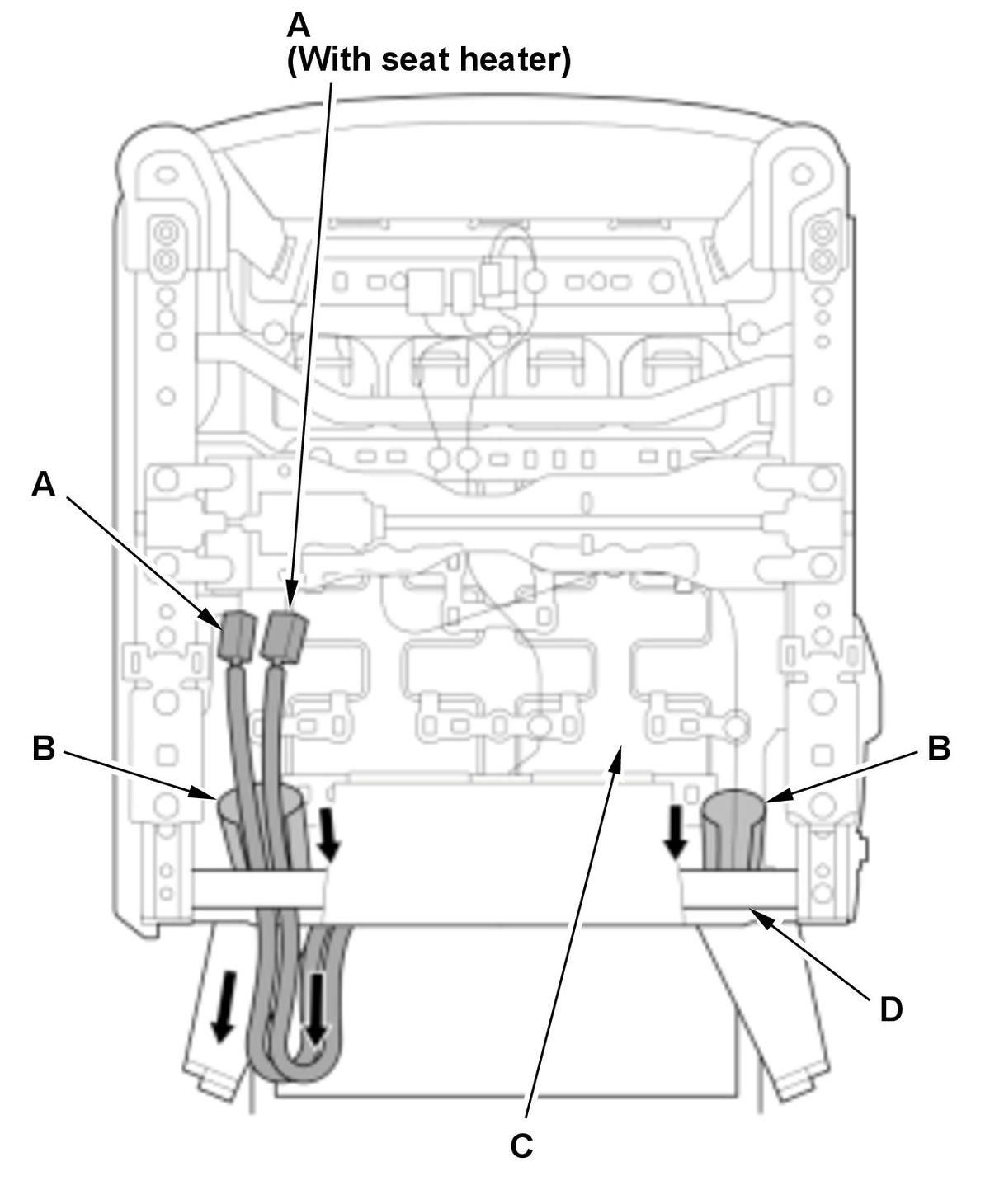

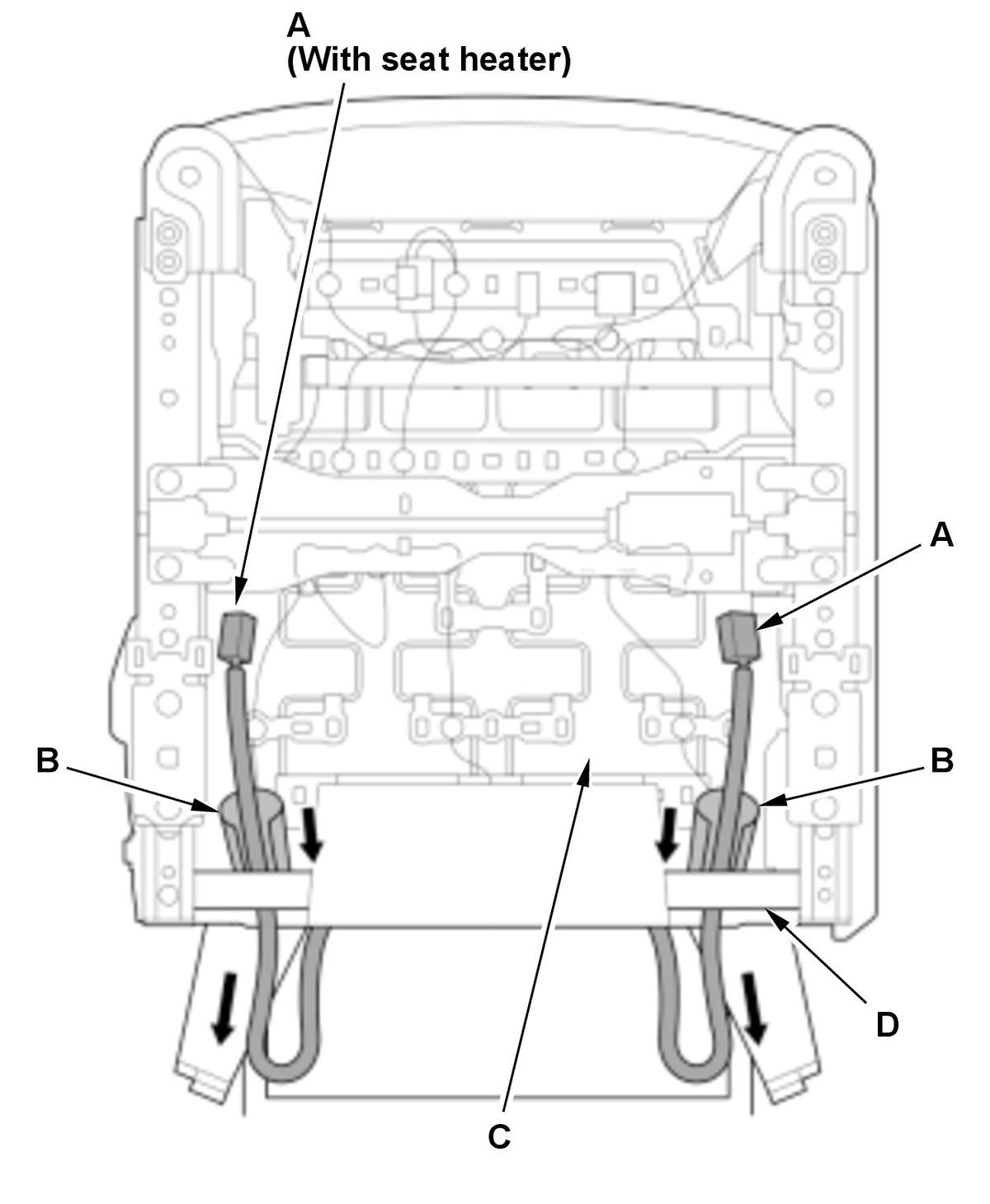

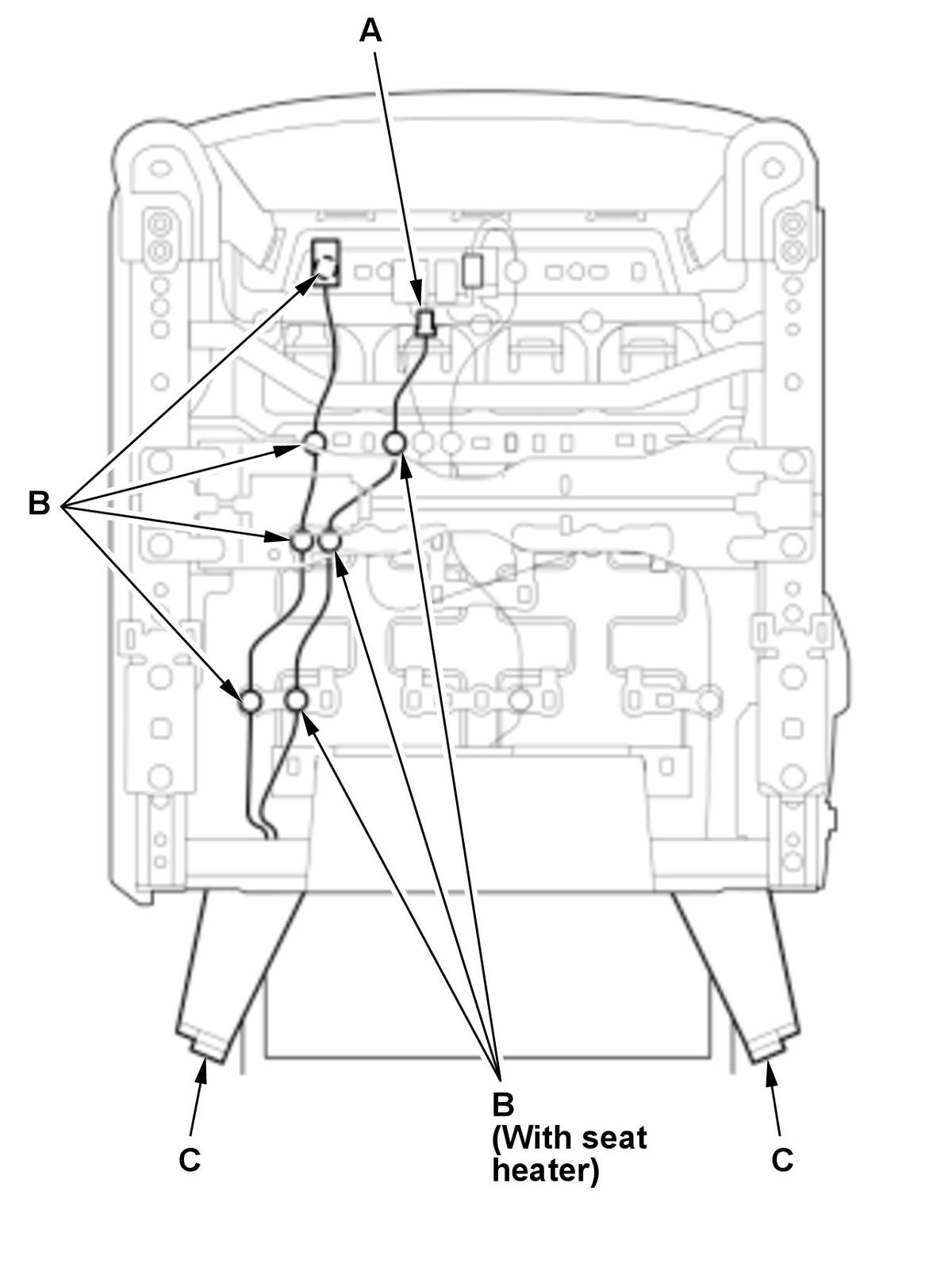

2. With seat heater: Disconnect the connector (A).

3. From under the seat cushion, remove the harness clips (B).

4. Release the hooks (C) of the seat cushion cover.

Driver's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Passenger's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

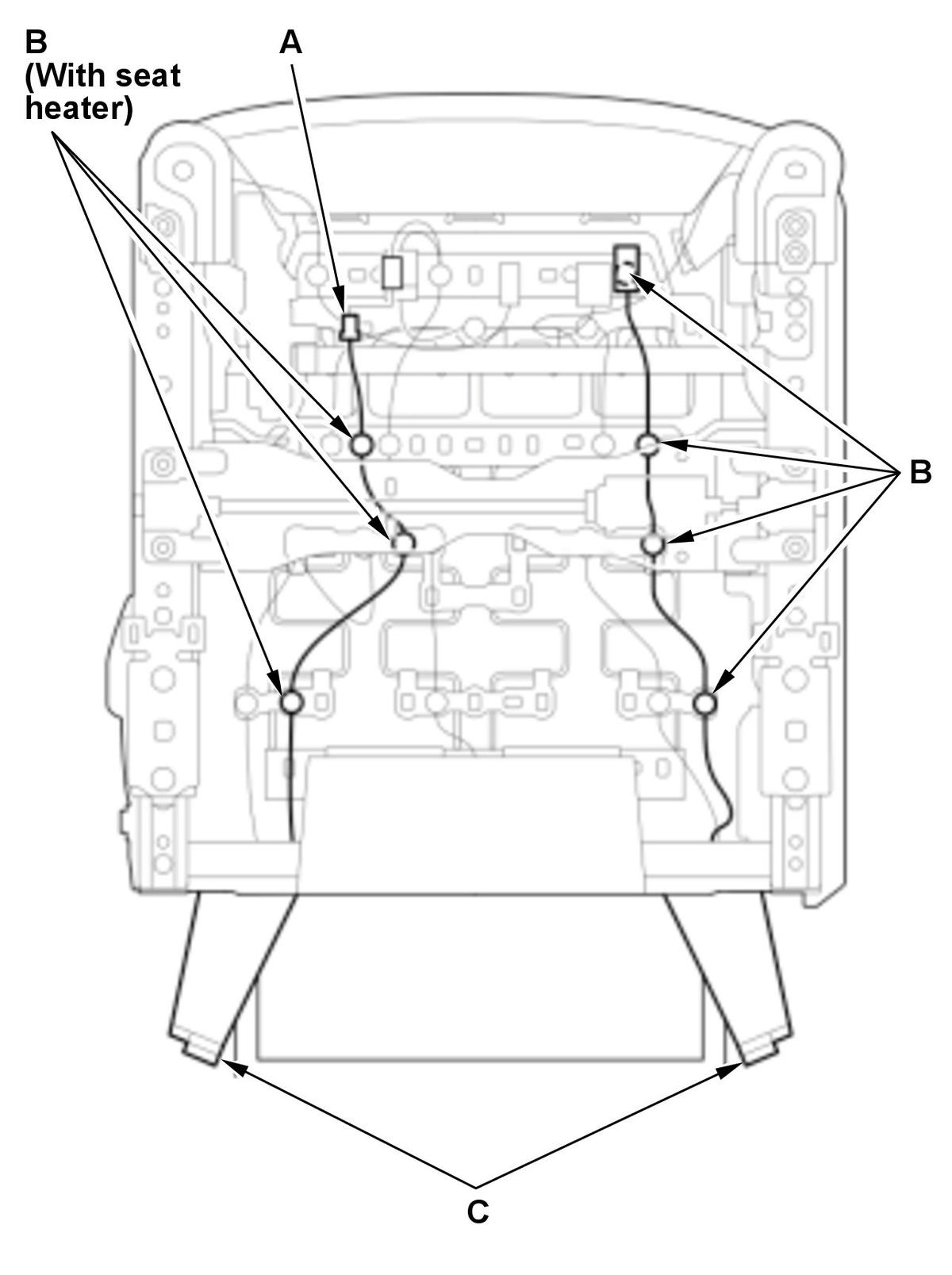

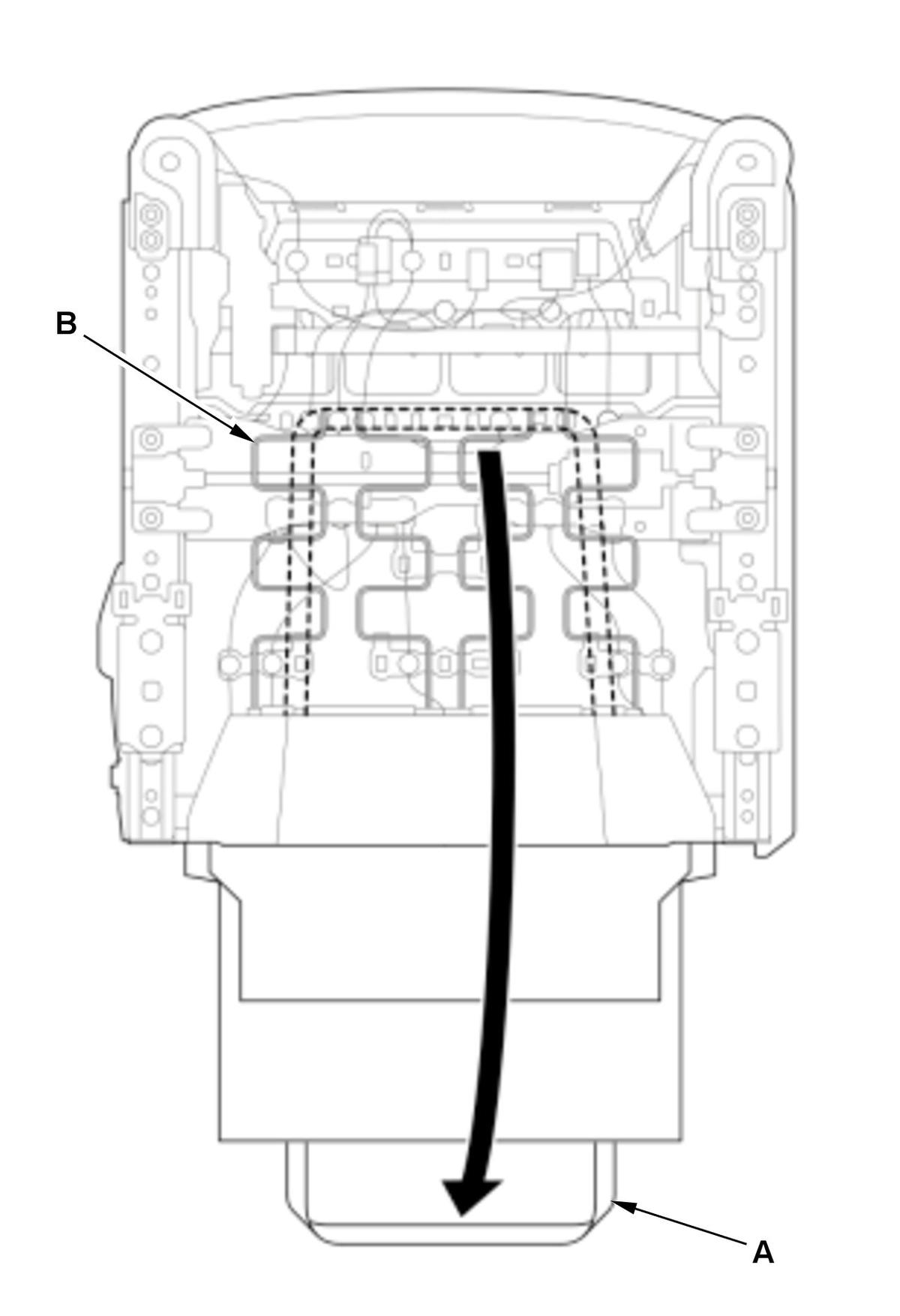

5. Pull out the wire harness(es) (A) and the seat-back cover (B) between the seat cushion pad (C) and the seat frame (D).

Courtesy of HONDA, U.S.A., INC.

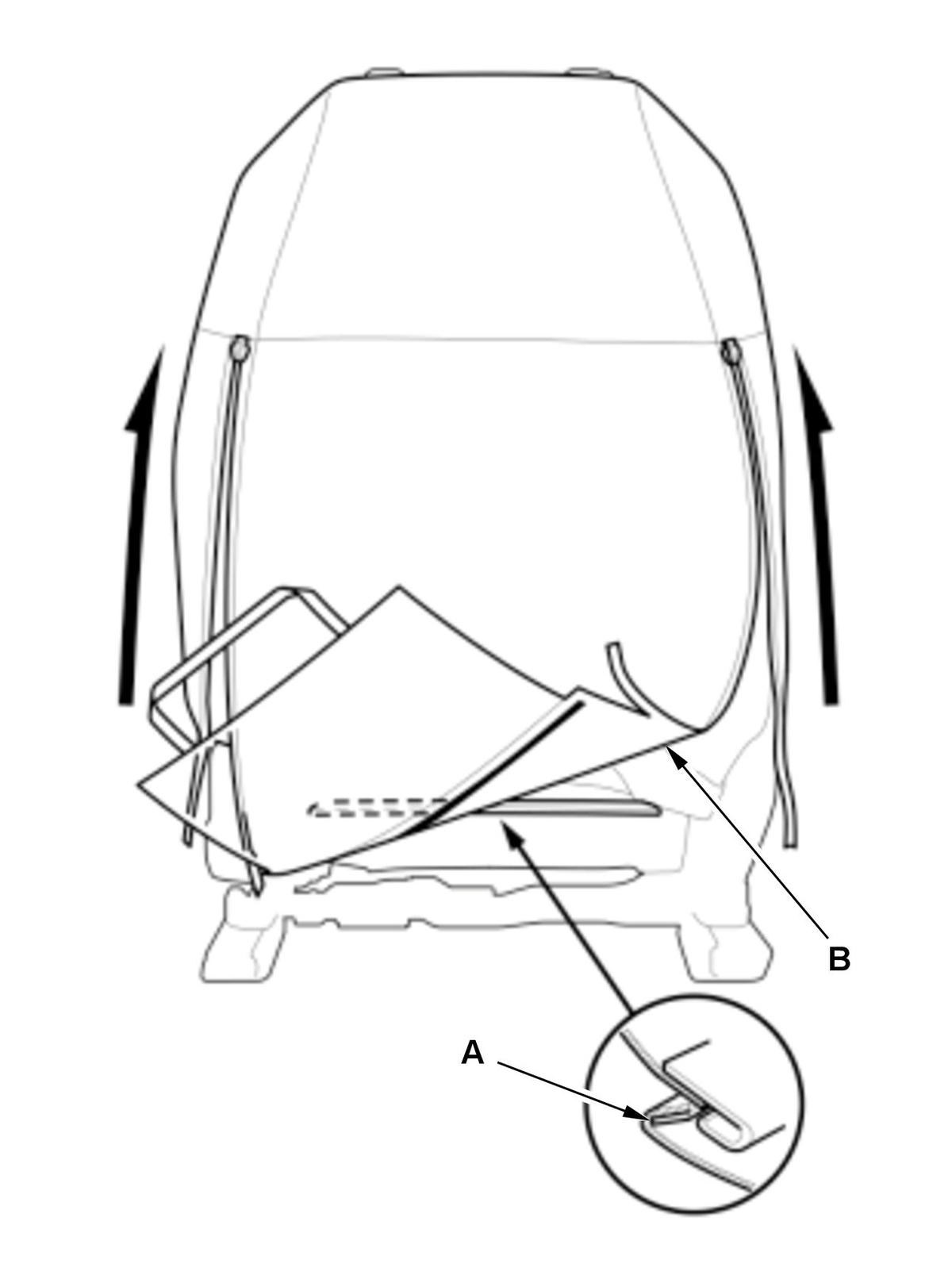

6. Release the hook strip (A).

7. Unzip the seat-back cover (B).

Courtesy of HONDA, U.S.A., INC.

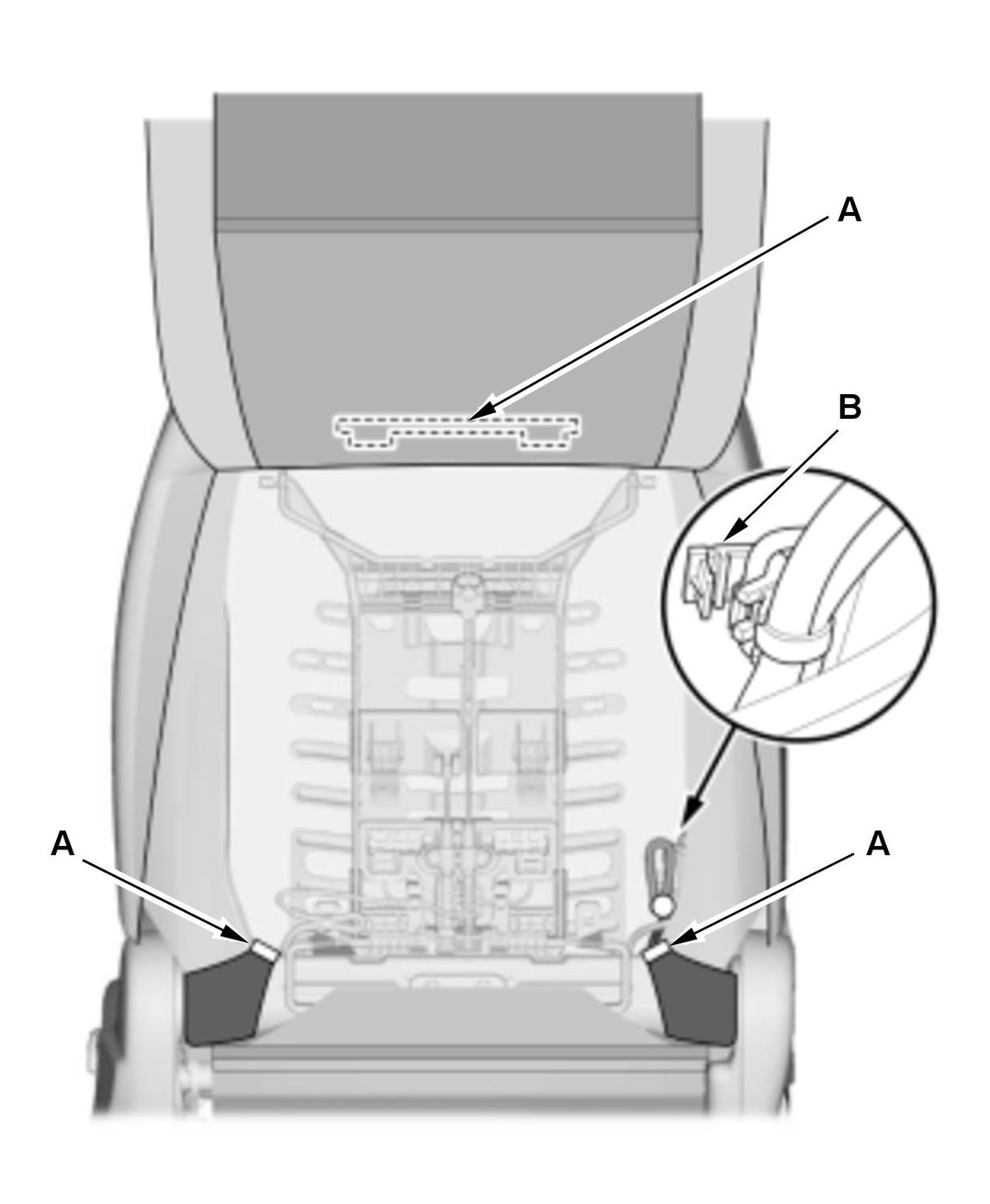

8. Release the hooks (A).

9. With seat heater: Remove the harness holder (B).

Courtesy of HONDA, U.S.A., INC.

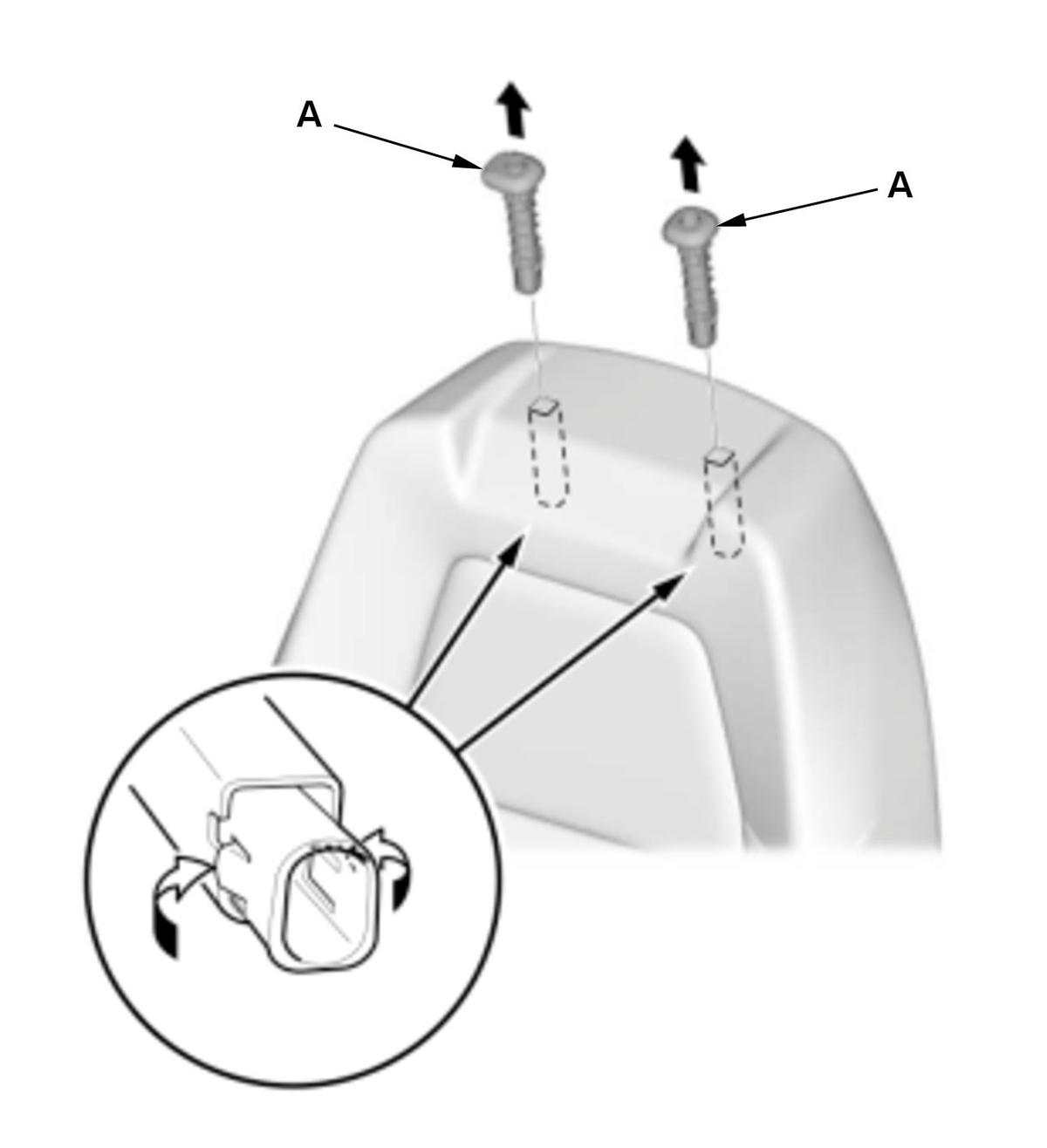

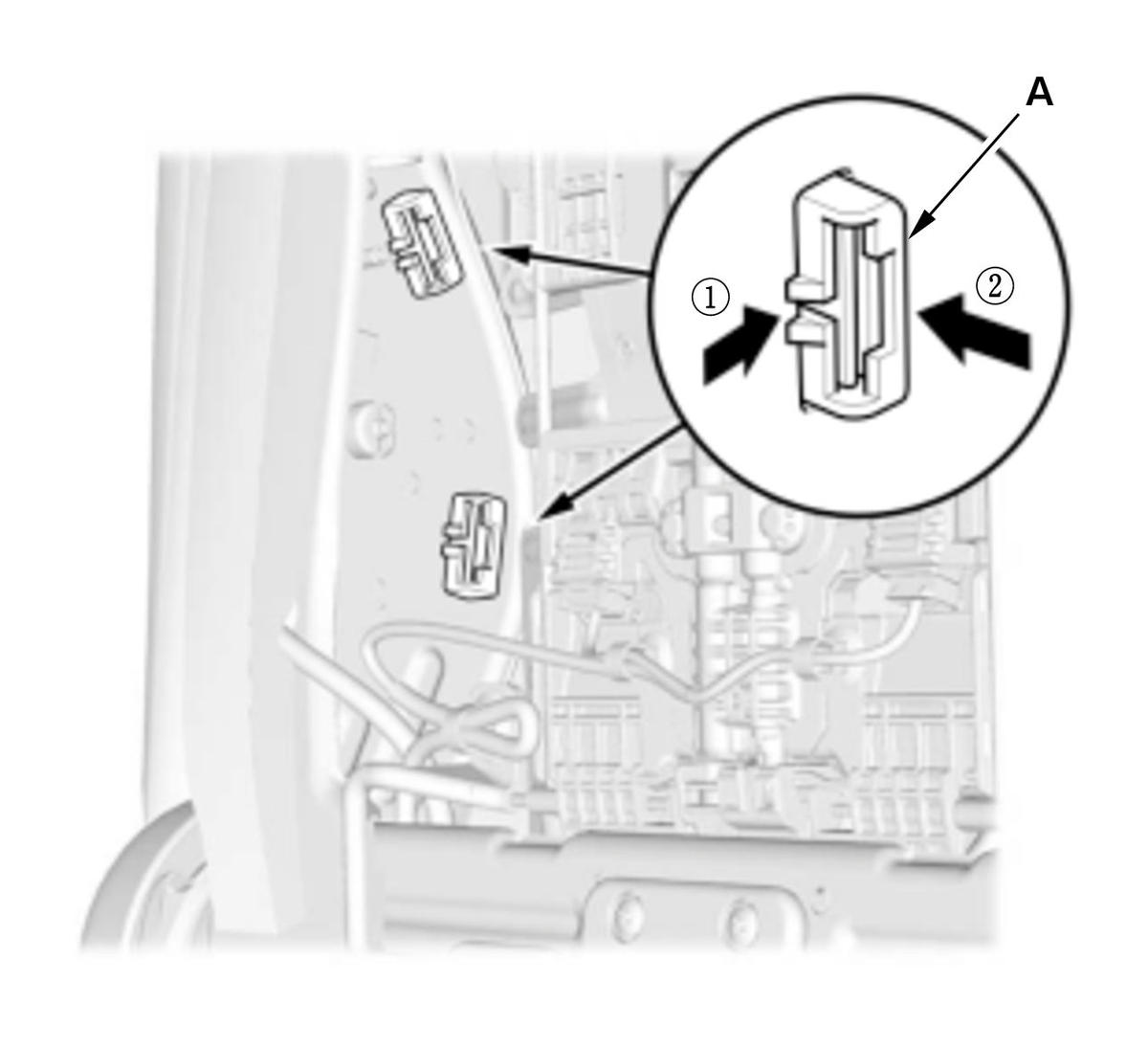

11. Remove the head restraint guides (A).

Courtesy of HONDA, U.S.A., INC.

12. Remove the clips (A) of the reinforcing cloth.

Courtesy of HONDA, U.S.A., INC.

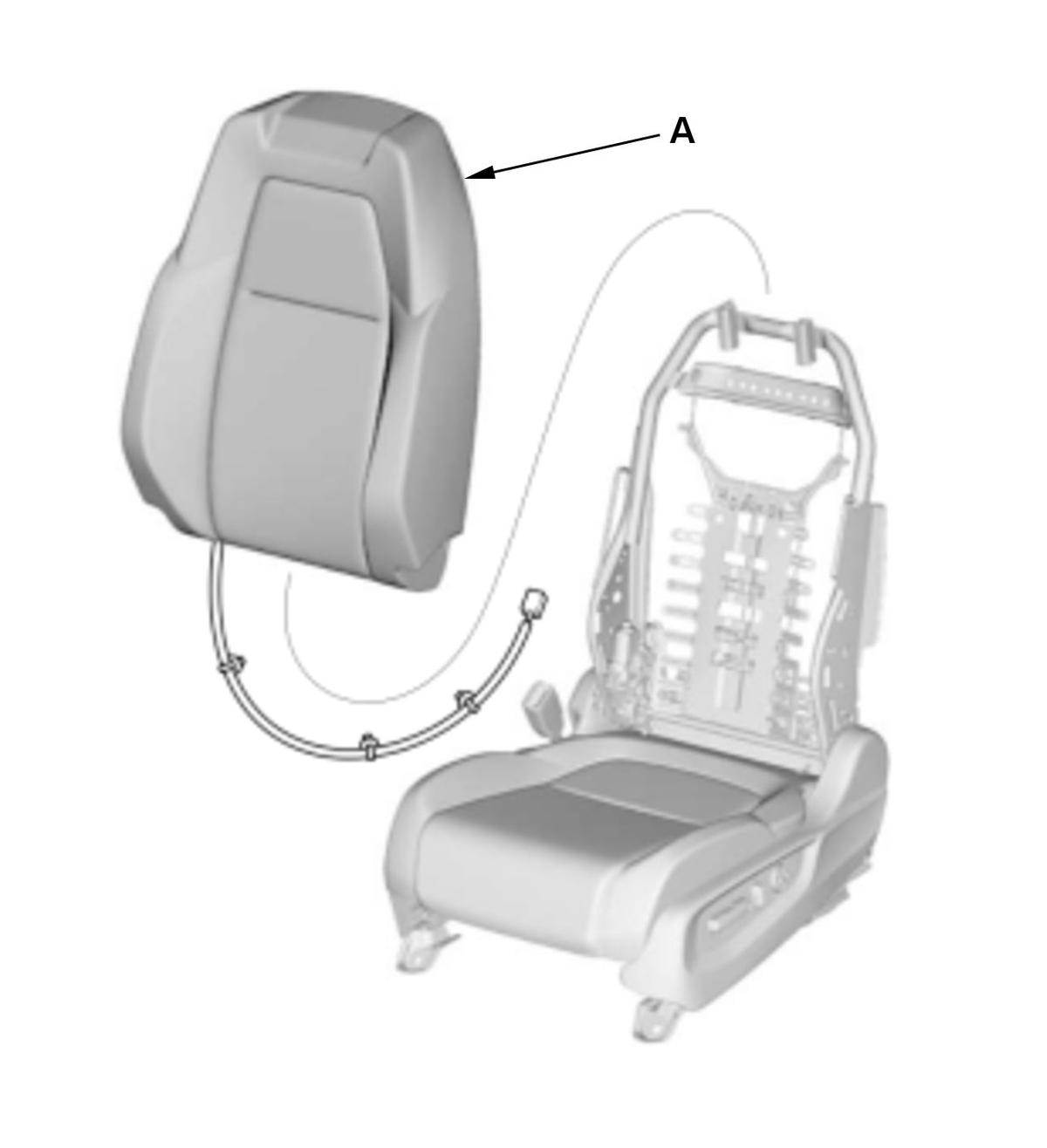

13. Remove the seat-back cover/pad (A).

Front Seat-Back Cover - Remove

Courtesy of HONDA, U.S.A., INC.

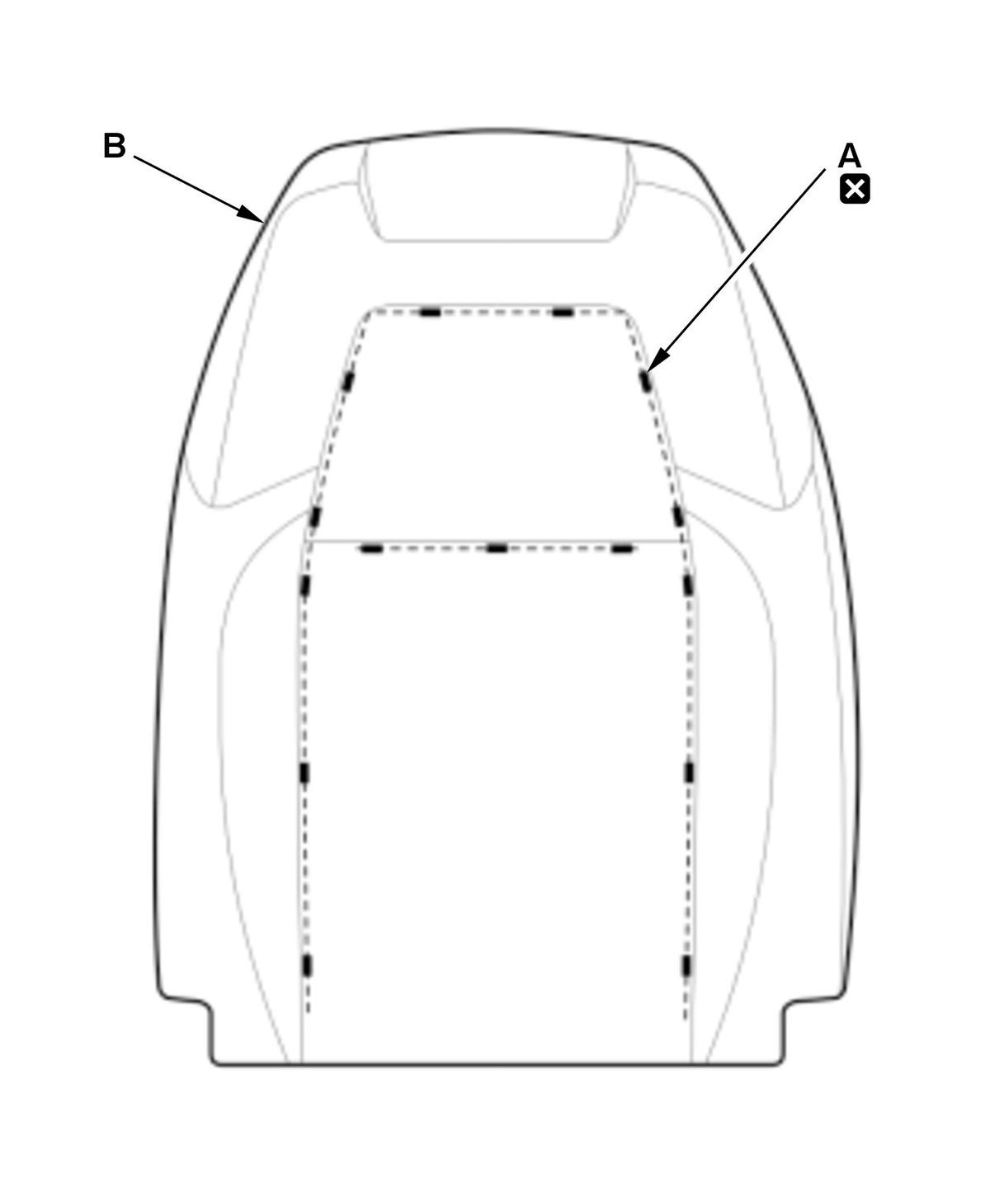

1. Remove the upholstery rings (A), and then remove the seat-back cover (B).

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

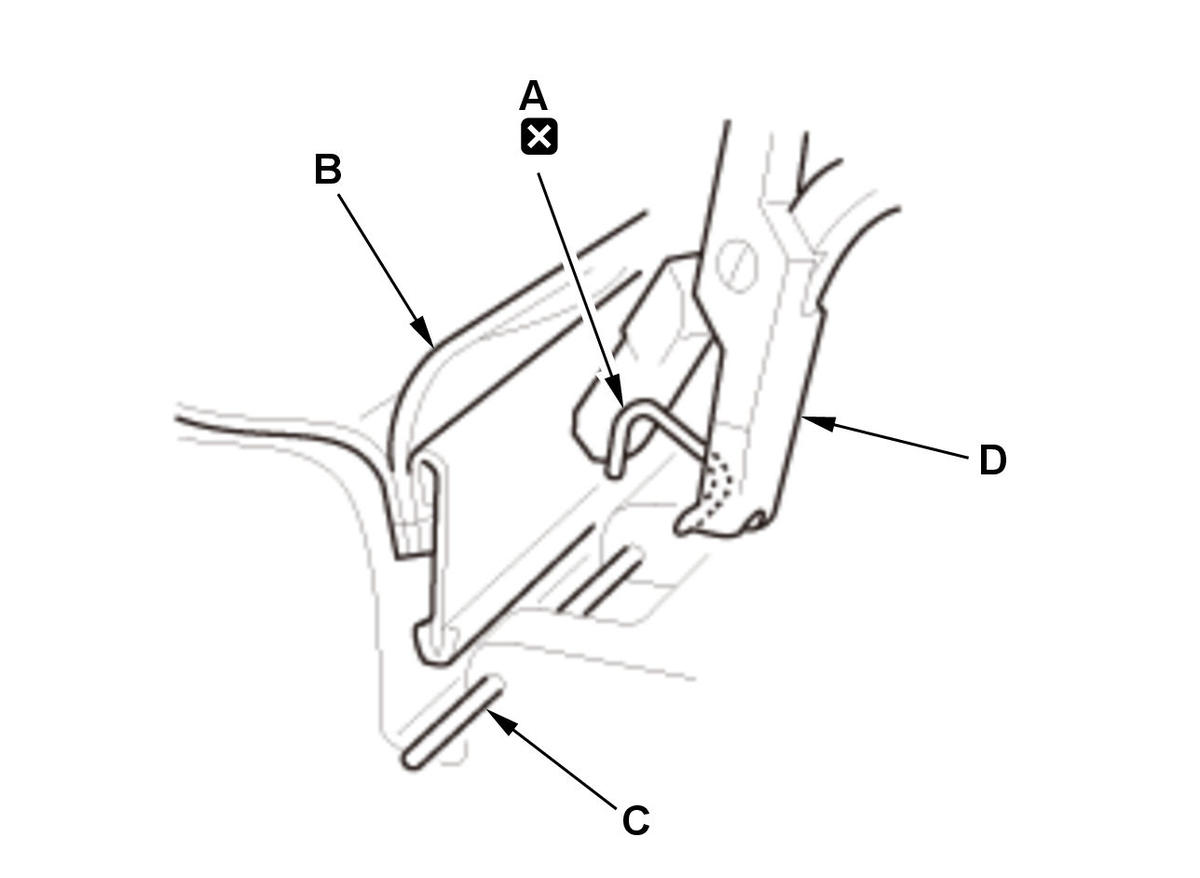

Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).

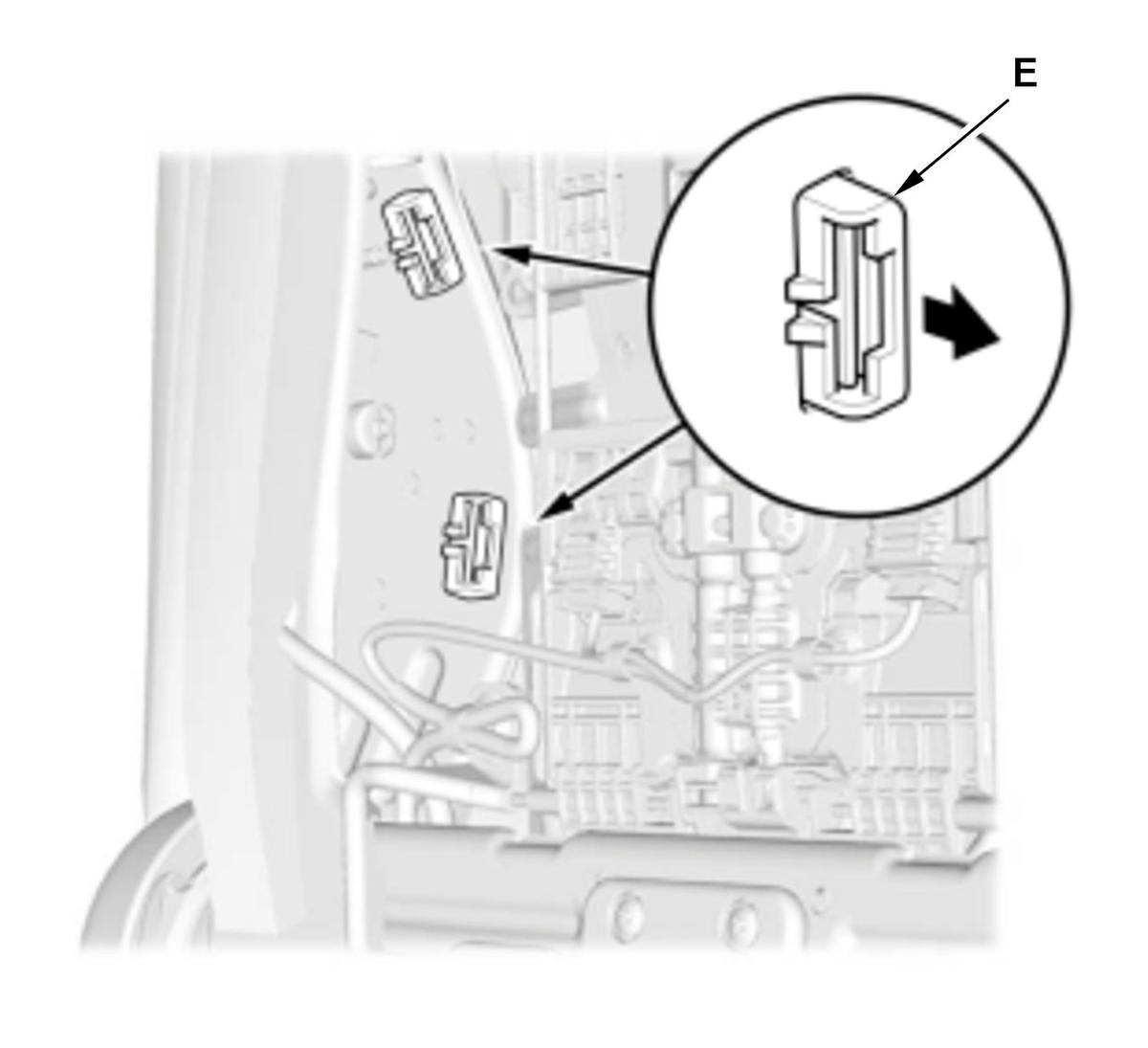

Push the clips (E) of the reinforcing cloth until they snap into place securely.
