Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat-Back Cover/Pad - Remove
2. Front Seat Cushion Cover/Pad - Remove
3. Front Seat Inner Recline Cover - Remove (Passenger's Seat)

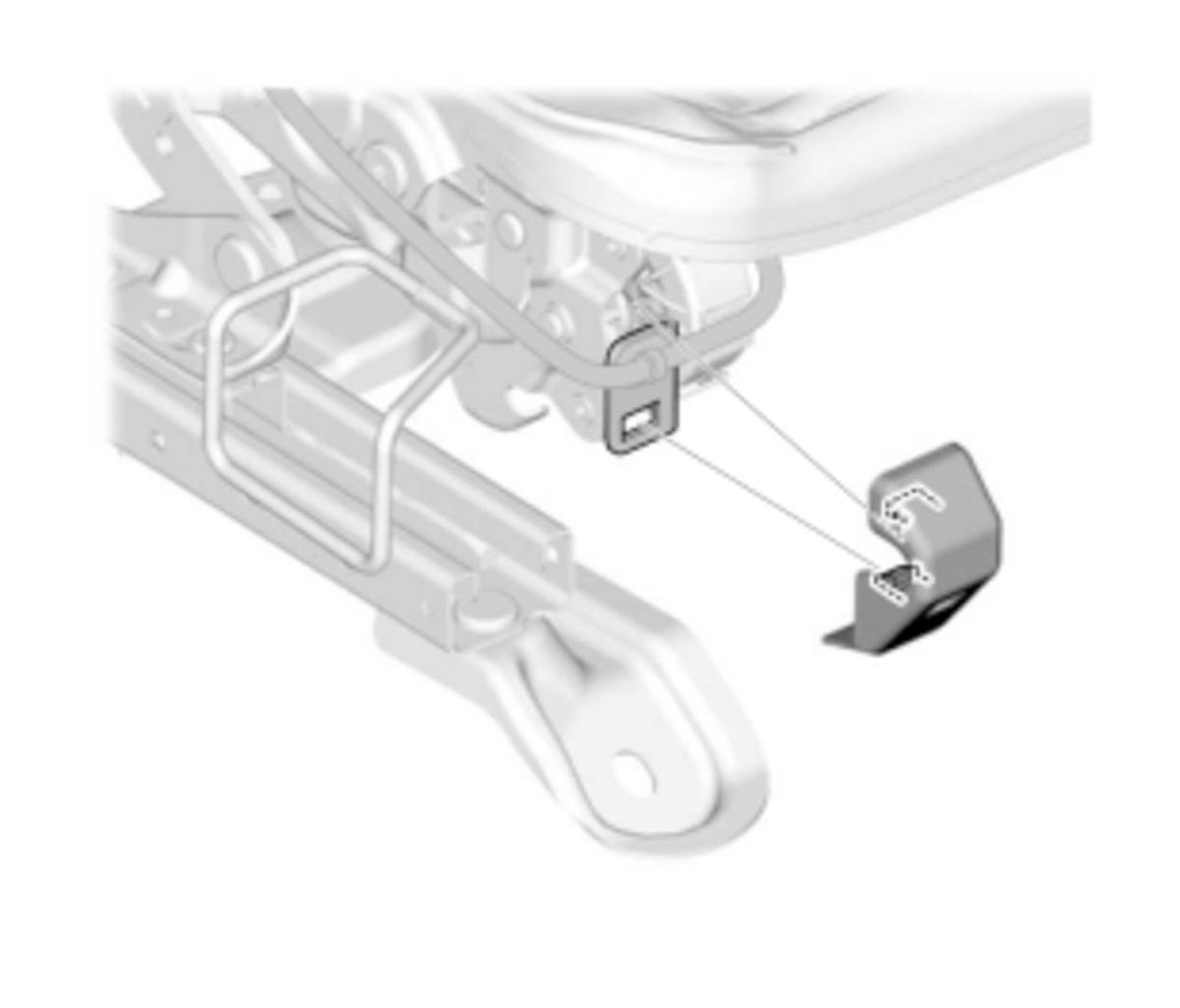

4. Front Seat Front Cushion Cover - Remove (Driver's Power Seat)

   Courtesy of HONDA, U.S.A., INC.

5. Front Seat Belt Buckle - Remove

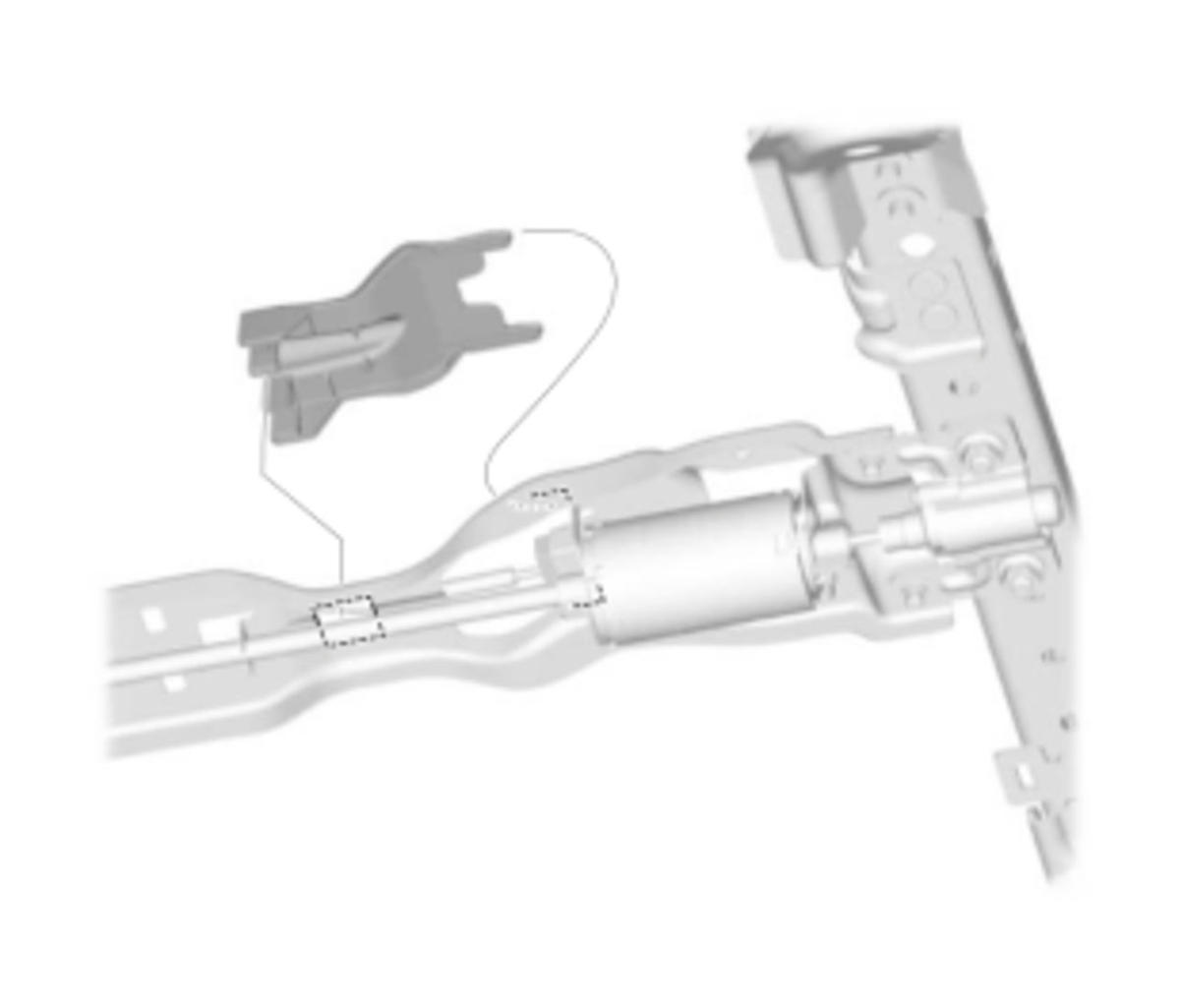

6. Front Seat Slide Motor Cover - Remove (Power Seat)

   Courtesy of HONDA, U.S.A., INC.

7. Front Seat Wire Harness - Remove

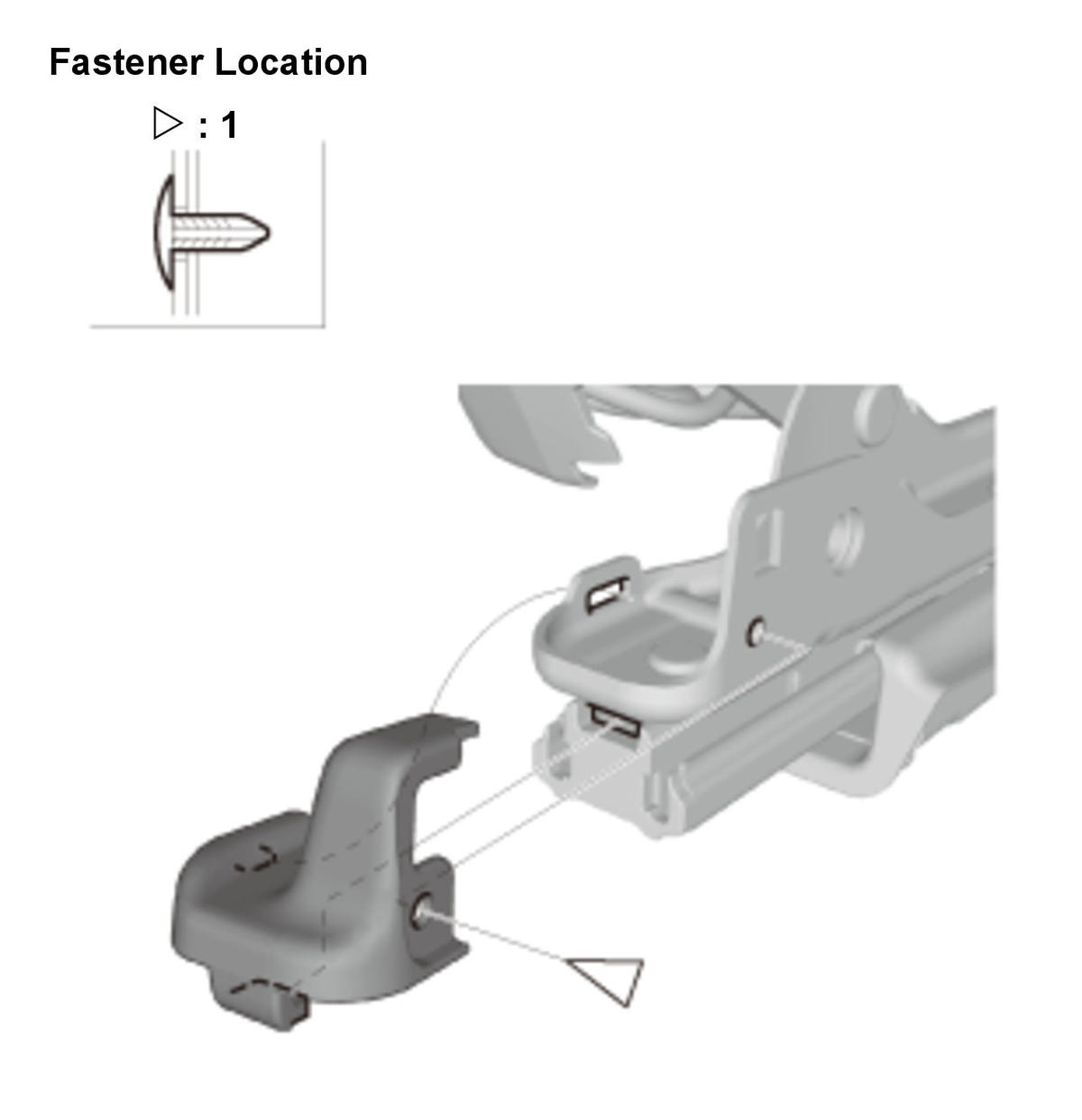

8. Upper Rail Outer Cover - Remove (Driver's Seat)

   Courtesy of HONDA, U.S.A., INC.

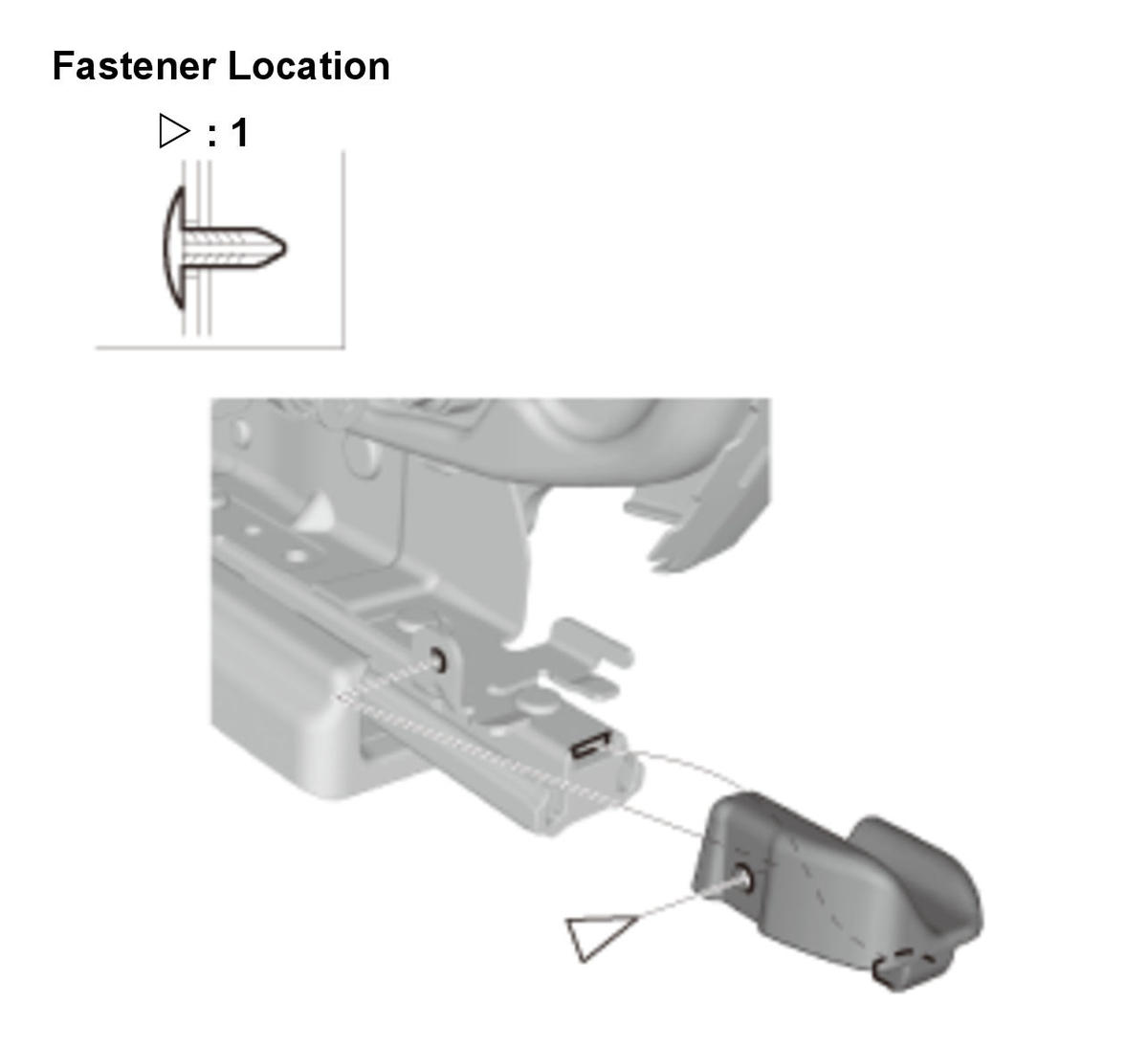

9. Upper Rail Inner Cover - Remove (Driver's Seat)

   Courtesy of HONDA, U.S.A., INC.

10. Front Seat Outer/Inner Recline Inner Covers - Remove

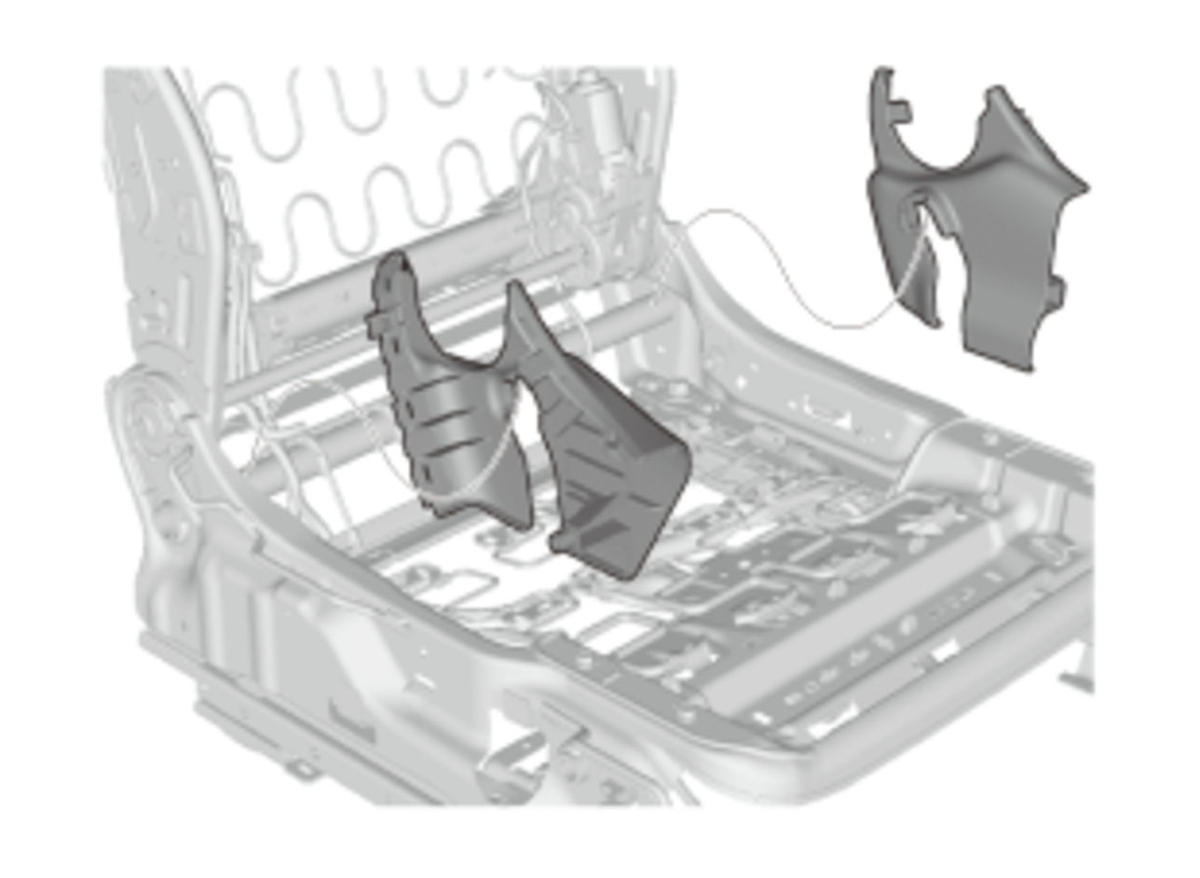

    Driver's seat

    Courtesy of HONDA, U.S.A., INC.

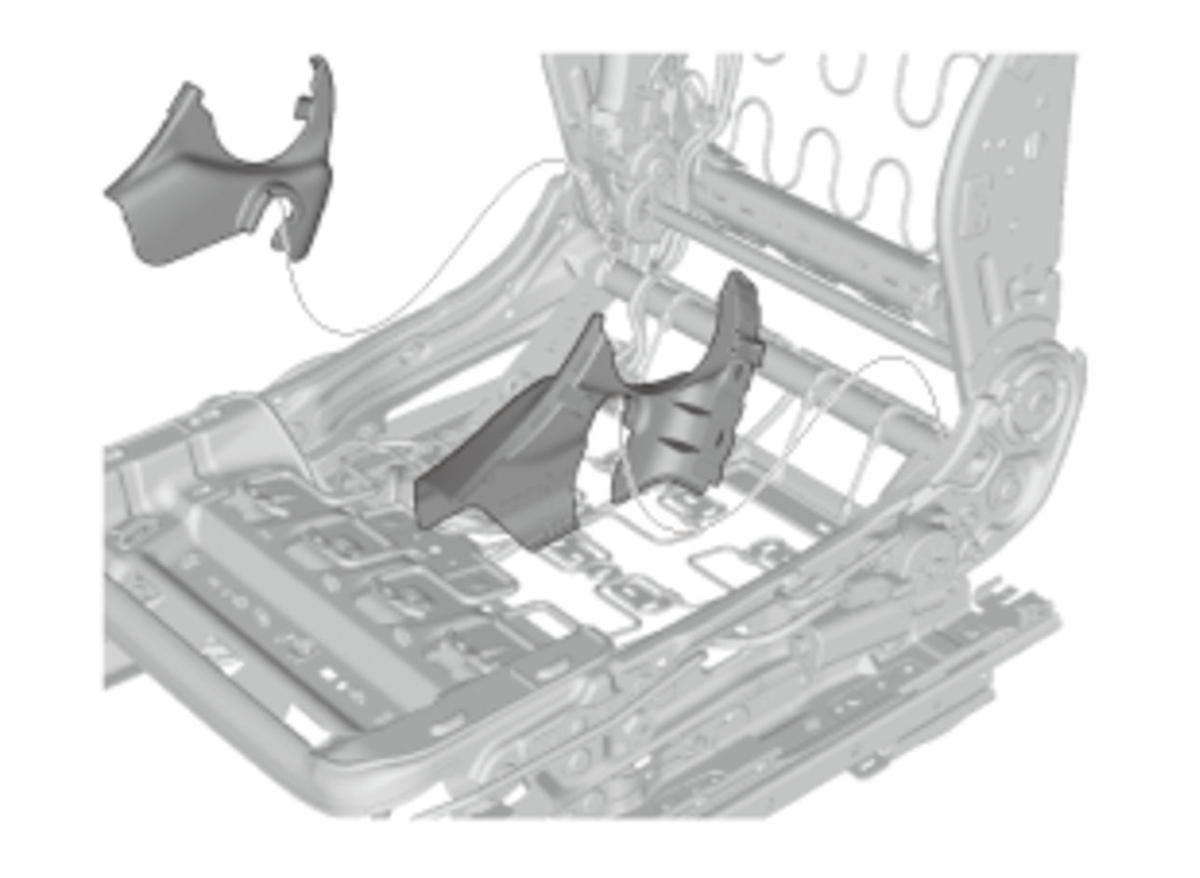

    Passenger's seat

    Courtesy of HONDA, U.S.A., INC.

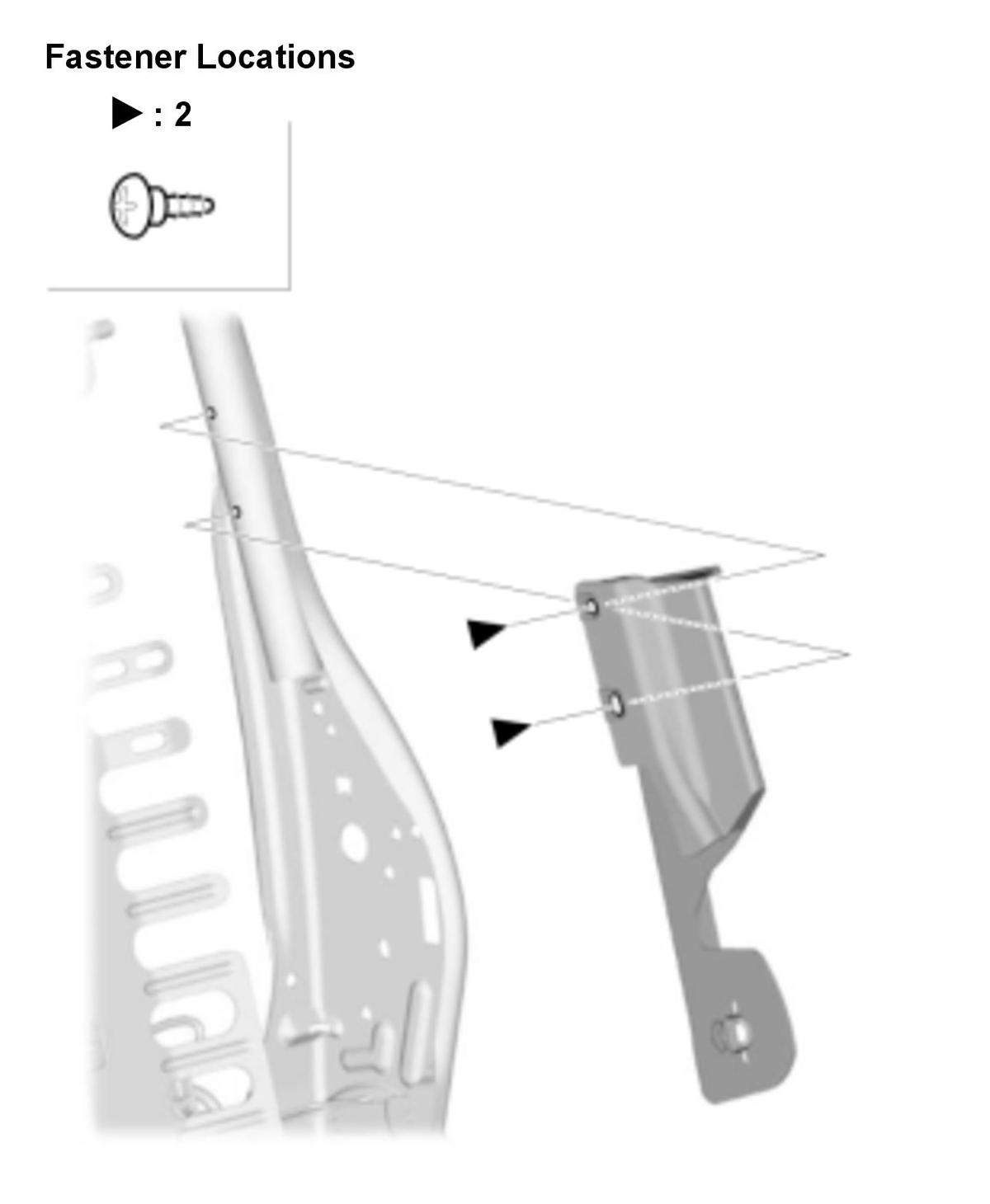

11. Front Seat Side Airbag Holder - Remove

    Courtesy of HONDA, U.S.A., INC.

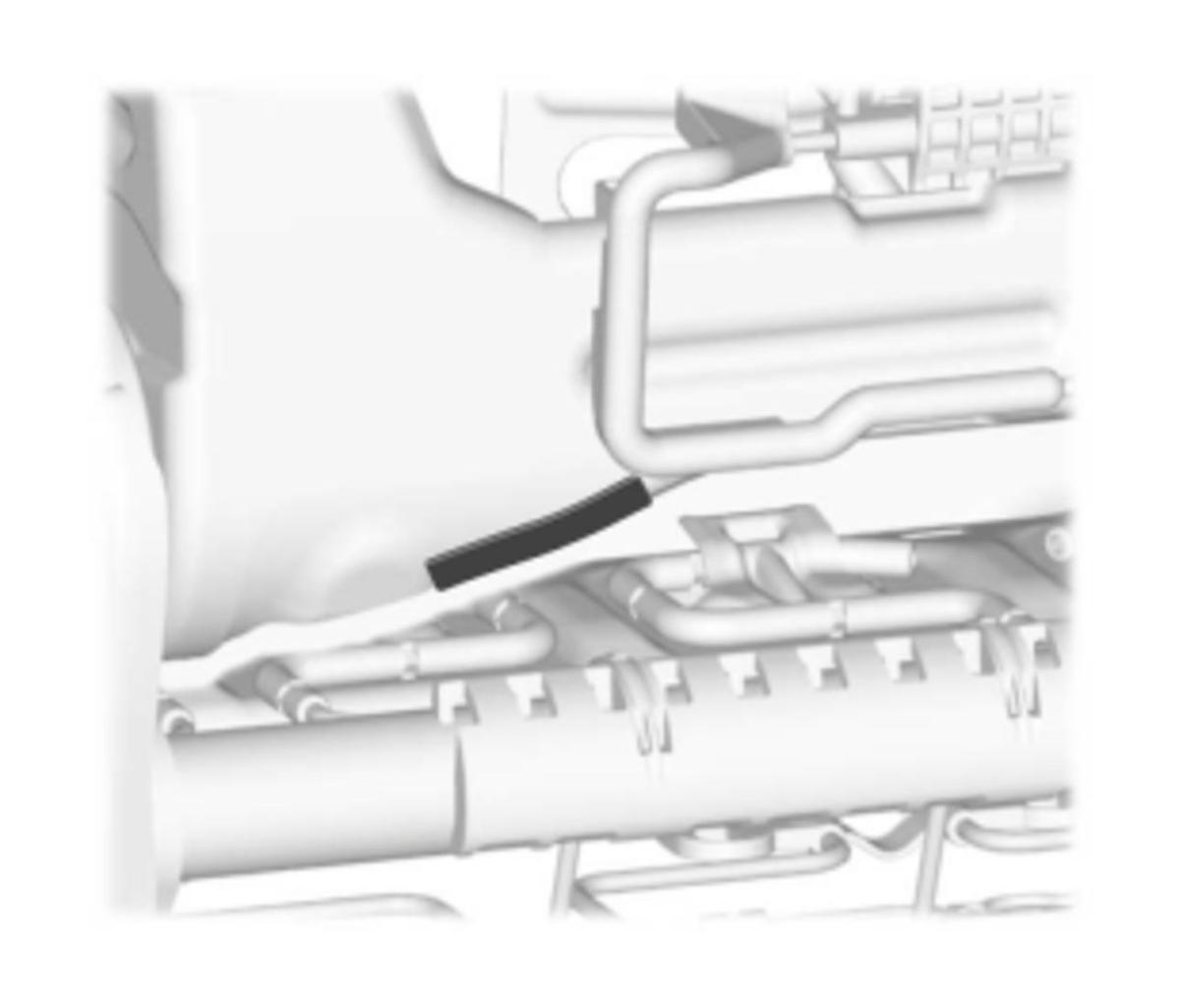

12. Edge Protector(s) - Remove

    Courtesy of HONDA, U.S.A., INC.

13. All Removed Parts - Install

    1. Install the parts in the reverse order of removal.

14. Driving Position Memory - Clear (For Some Models)

    NOTE: Clear the driving position memory after doing any of the following actions.

    • Replace the new front seat frame.
    • Substitute a known-good front seat frame.
15. Front Passenger's Weight Sensor - Initialize (For Some Models)
16. Front Passenger's Weight Sensor - Operation Check (For Some Models)
