DTC B2649 (2020 2021)
DTC B2649 : Rear sensor signal short to ground
NOTE:
- If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .
- The connection order of the sensor is 1st -> 2nd -> 3rd -> 4th from the side near the control unit.
| DTC Description | DTC |
|---|---|
| B2649 Rear sensor signal short to ground |
DTC (Parking and Back-Up Sensor Control Unit)
- Problem verification
-1. Clear the DTCs with the HDS.
-2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.
-3. Wait for at least 6 seconds.
-4. Check for DTCs with the HDS.
DTC Description DTC B2649 Rear sensor signal short to ground Is DTC B2649 indicated?
YES
Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for loose or poor connections.
- Shorted wire check (SOR SIDE L, E2 SIDE L lines) 1
-1. Disconnect the following connector.
Parking and back-up sensor control unit 16P connector -2. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Test point 1 Parking and back-up sensor control unit 16P connector No. 14 Test point 2 Parking and back-up sensor control unit 16P connector No. 12 Is there 1.0 MΩ or more?
YES
Go to step 10.
NO
Go to step 3.
- Shorted wire check (SOR SIDE R, E2 SIDE R lines) 1
-1. Disconnect the following connector.

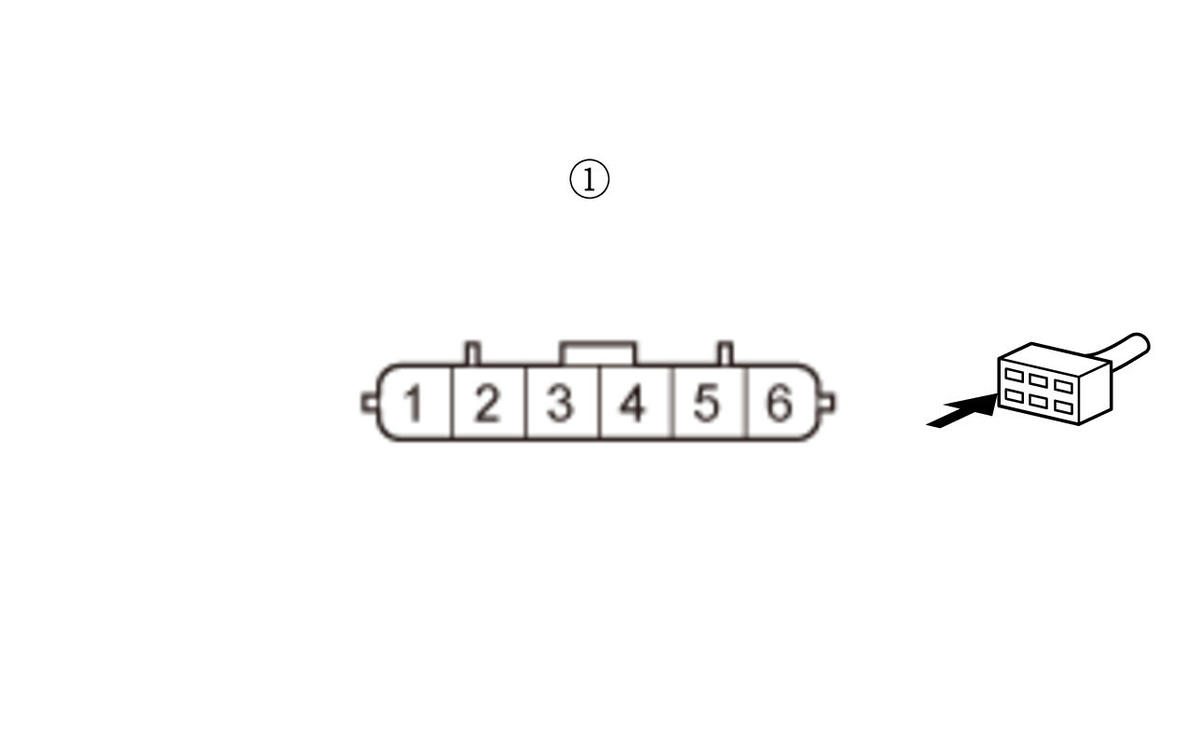

Right rear center sensor 6P connector -2. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Right rear center sensor 6P connector: disconnected Test point 1 Right rear center sensor 6P connector (female terminals) No. 3: Test point 2 Right rear center sensor 6P connector (female terminals) No. 1: Is there 1.0 MΩ or more?
YES
Go to step 5.
NO
Go to step 4.
- Shorted wire check (SOR SIDE R, E2 SIDE R lines) 2
-1. Disconnect the following connector.
Right rear corner sensor 6P connector -2. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Right rear center sensor 6P connector: disconnected Right rear corner sensor 6P connector: disconnected Test point 1 Right rear center sensor 6P connector (female terminals) No. 3: Test point 2 Right rear center sensor 6P connector (female terminals) No. 1: Is there 1.0 MΩ or more?
YES
Replace the right rear corner sensor .
NO
Repair a short in the SOR SIDE R and E2 SIDE R wires.
- Shorted wire check (SOR CTR R, E2 CTR R lines) 1
-1. Reconnect the following connector.
Right rear center sensor 6P connector -2. Disconnect the following connector.
Left rear center sensor 6P connector -3. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Left rear center sensor 6P connector: disconnected Test point 1 Left rear center sensor 6P connector (female terminals) No. 3: Test point 2 Left rear center sensor 6P connector (female terminals) No. 1: Is there 1.0 MΩ or more?
YES
Go to step 7.
NO
Go to step 6.
- Shorted wire check (SOR CTR R, E2 CTR R lines) 2
-1. Disconnect the following connector.
Right rear center sensor 6P connector -2. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Left rear center sensor 6P connector: disconnected Right rear center sensor 6P connector: disconnected Test point 1 Left rear center sensor 6P connector (female terminals) No. 3: Test point 2 Left rear center sensor 6P connector (female terminals) No. 1: Is there 1.0 MΩ or more?
YES
Replace the right rear center sensor .
NO
Repair a short in the SOR CTR R and E2 CTR R wires.
- Shorted wire check (SOR CTR L, E2 CTR L lines) 1
-1. Reconnect the following connector.
Left rear center sensor 6P connector -2. Disconnect the following connector.
Left rear corner sensor 6P connector -3. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Left rear corner sensor 6P connector: disconnected Test point 1 Left rear corner sensor 6P connector (female terminals) No. 3: Test point 2 Left rear corner sensor 6P connector (female terminals) No. 1: Is there 1.0 MΩ or more?
YES
Go to step 9.
NO
Go to step 8.
- Shorted wire check (SOR CTR L, E2 CTR L lines) 2
-1. Disconnect the following connector.
Left rear center sensor 6P connector -2. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Left rear corner sensor 6P connector: disconnected Left rear center sensor 6P connector: disconnected Test point 1 Left rear corner sensor 6P connector (female terminals) No. 3: Test point 2 Left rear corner sensor 6P connector (female terminals) No. 1: Is there 1.0 MΩ or more?
YES
Replace the left rear center sensor .
NO
Repair a short in the SOR CTR L and E2 CTR L wires.
- Shorted wire check (SOR SIDE L, E2 SIDE L lines) 2
-1. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Left rear corner sensor 6P connector: disconnected Test point 1 Parking and back-up sensor control unit 16P connector No. 14 Test point 2 Parking and back-up sensor control unit 16P connector No. 12 Is there 1.0 MΩ or more?
YES
Replace the left rear corner sensor .
NO
Repair a short in the SOR SIDE L and E2 SIDE L wires.
- Shorted wire check (SOR SIDE L line)
-1. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Test point 1 Parking and back-up sensor control unit 16P connector No. 14 Test point 2 Body ground Is there 1.0 MΩ or more?
YES
Replace the parking and back-up sensor control unit .
NO
Repair a short to ground in the SOR SIDE L wire.
