P0705 (CVT (TCM))
DTC P0705 : Transmission Range Switch Multiple Shift Position Input
NOTE:
- Before you troubleshoot, review the General Troubleshooting Information .
- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P0705 Transmission Range Switch Multiple Shift Position Input |
DTC (CVT)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Compare the transmission range switch signal inputs with the HDS to the following table, in each shift lever position/mode.
Signal Threshold Current conditions P R N D S* L* Values Unit A/T P Switch ON OFF OFF OFF OFF OFF A/T R Switch OFF ON OFF OFF OFF OFF A/T N Switch OFF OFF ON OFF OFF OFF A/T D Switch OFF OFF OFF ON OFF OFF A/T S Switch* OFF OFF OFF OFF ON OFF A/T L Switch* OFF OFF OFF OFF OFF ON Forward Switch OFF OFF OFF ON ON ON Reverse Switch (ATPRVS) OFF ON OFF OFF OFF OFF *: Without paddle shifter
Do the transmission range switch signals match?
YES
Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the transmission range switch and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.
NO
The failure is duplicated. Go to step 2.
- Transmission range switch signal check
-1. Compare the transmission range switch signal inputs with the HDS to the following table, in each shift lever position/mode.
Signal Threshold Current conditions P R N D S* L* Values Unit A/T P Switch ON OFF OFF OFF OFF OFF A/T R Switch OFF ON OFF OFF OFF OFF A/T N Switch OFF OFF ON OFF OFF OFF A/T D Switch OFF OFF OFF ON OFF OFF A/T S Switch* OFF OFF OFF OFF ON OFF A/T L Switch* OFF OFF OFF OFF OFF ON Forward Switch OFF OFF OFF ON ON ON Reverse Switch (ATPRVS) OFF ON OFF OFF OFF OFF *: Without paddle shifter
Are any transmission range switch signals ON in all shift lever positions/modes?
YES
Record the abnormal circuit, then go to step 5.
NO
Go to step 3.
- Transmission range switch check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

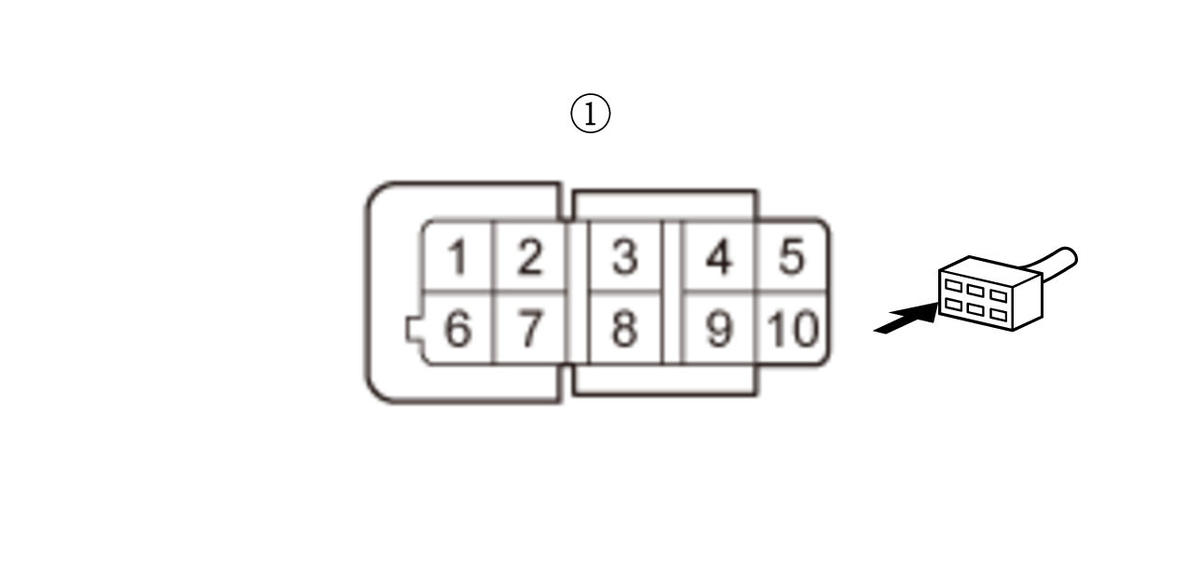

Transmission range switch 10P connector -3. Connect the transmission range switch connector terminal that incorrectly indicates ON in step 2 to ground with a jumper wire.
Signal Transmission range switch 10P connector (female terminals) : Terminal number Terminal name A/T P Switch 5 ATP-P A/T R Switch 4 ATP-R A/T N Switch 9 ATP-N A/T D Switch 3 ATP-D A/T S Switch* 8 ATP-S A/T L Switch* 2 ATP-L Forward Switch 6 ATP-FWD Reverse Switch (ATPRVS) 10 ATP-RVS *: Without paddle shifter
-4. Turn the vehicle to the ON mode.
-5. Compare the transmission range switch signal inputs with the HDS to the following table.
Signal Current conditions Values Unit A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T S Switch* A/T L Switch* Forward Switch Reverse Switch (ATPRVS) *: Without paddle shifter
Do multiple transmission range switch signals indicate ON?
YES
The transmission range switch is OK. Go to step 4.
NO
- Shift position indicator check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
Shift position indicator 12P connector -3. Turn the vehicle to the ON mode.
-4. Compare the transmission range switch signal inputs with the HDS to the following table.
Signal Current conditions Values Unit A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T S Switch* A/T L Switch* Forward Switch Reverse Switch (ATPRVS) *: Without paddle shifter
Do multiple transmission range switch signals indicate ON?
YES
The shift position indicator is OK. Repair a short in the wires between the corresponding transmission range switch connector terminal, the shift position indicator, and the TCM. Refer to the following table.
ATP-P ATP-R ATP-N ATP-D ATP-S* ATP-L* ATP-FWD ATP-RVS TCM No. 48 No. 47 No. 46 No. 37 No. 36 No. 35 No. 44 No. 43 Transmission range switch 5 4 9 3 8 2 6 10 *: Without paddle shifter
NO
- Transmission range switch check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

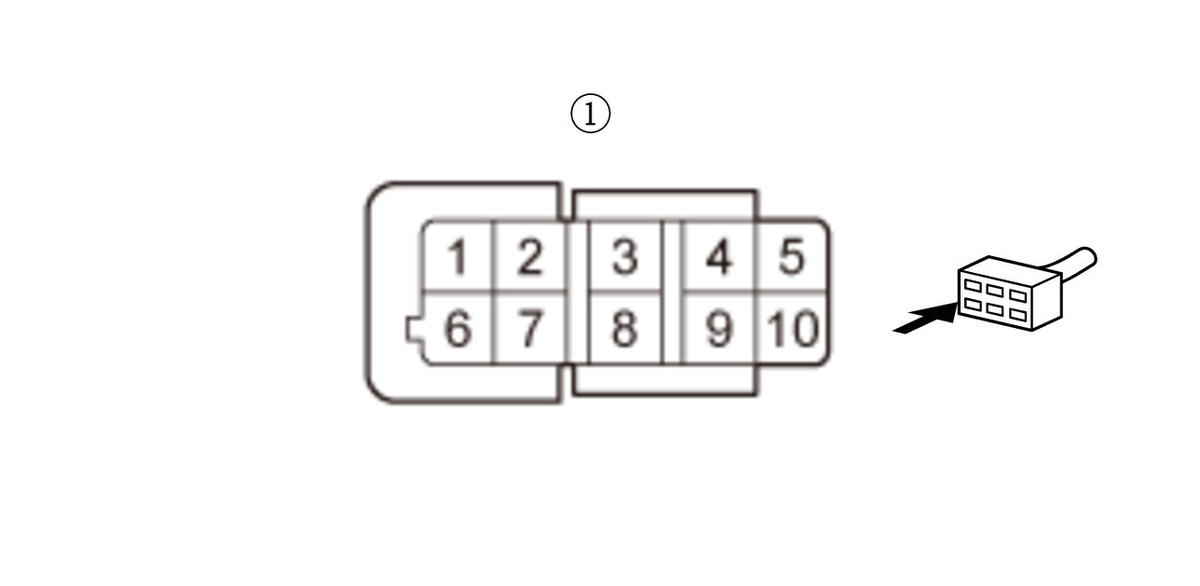

Transmission range switch 10P connector -3. Turn the vehicle to the ON mode.
-4. Check the transmission range switch signal input that remained ON with the HDS to the following table.
Signal Current conditions Values Unit A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T S Switch* A/T L Switch* Forward Switch Reverse Switch (ATPRVS) *: Without paddle shifter
Do any transmission range switch signals remain ON?
YES
The transmission range switch is OK. Go to step 6.
NO
- Shift position indicator check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
Shift position indicator 12P connector -3. Turn the vehicle to the ON mode.
-4. Check the transmission range switch signal input that remained ON with the HDS to the following table.
Signal Current conditions Values Unit A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T S Switch* A/T L Switch* Forward Switch Reverse Switch (ATPRVS) *: Without paddle shifter
Do any transmission range switch signals remain ON?
YES
The shift position indicator is OK. Go to step 7.
NO
- Shorted wire check (corresponding line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
TCM 50P connector -3. Check for continuity between the connector terminal on the circuit that remained ON in step 5 and ground; refer to the following table.
Signal Transmission range switch 10P connector (female terminals) : Terminal number Terminal name A/T P Switch 5 ATP-P A/T R Switch 4 ATP-R A/T N Switch 9 ATP-N A/T D Switch 3 ATP-D A/T S Switch* 8 ATP-S A/T L Switch* 2 ATP-L Forward Switch 6 ATP-FWD Reverse Switch (ATPRVS) 10 ATP-RVS *: Without paddle shifter
Does the circuit that indicated ON have continuity to ground?
YES
Repair a short to ground in the wire between the corresponding transmission range switch connector terminal, the shift position indicator, and the TCM.
NO
The wires are OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good TCM , then recheck. If this DTC goes away and the TCM was substituted, replace the original TCM .
