CVT Solenoid Valve Test (CVT): Test

WARNING: This page is about a different variant/trim than selected.

NOTE: Keep all foreign particles out of the transmission.

Solenoid Valve Resistance Check

Vehicle - Lift
Engine Undercover Plate - Remove

Solenoid Valve - Resistance Check

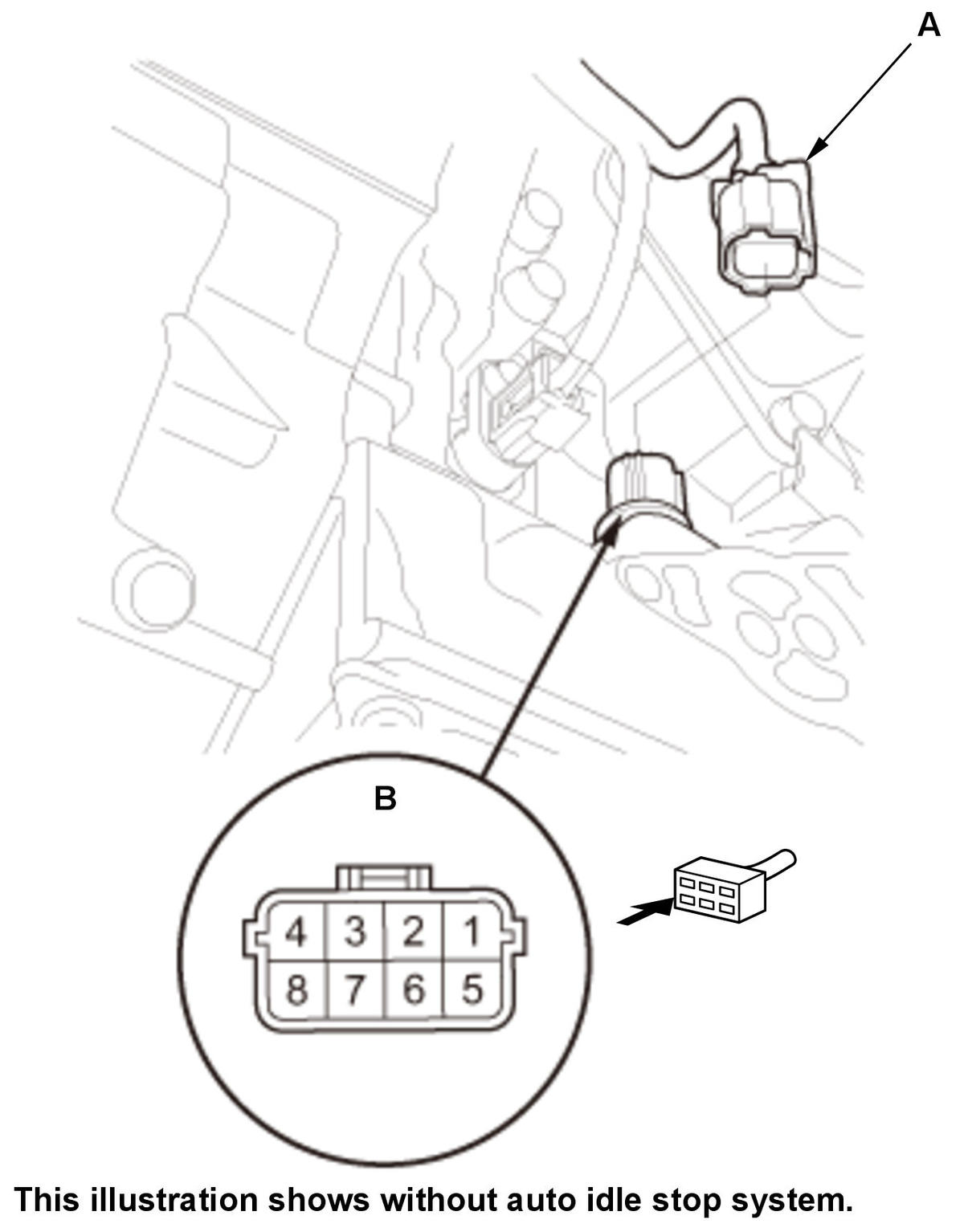

1. Disconnect the connector (A).

NOTE: To prevent damage, cover the connector using a shop towel.

Courtesy of HONDA, U.S.A., INC.

2. Measure the resistance between the connector (male terminals) (B) and body ground according to the table.

If the resistance is within the standard, the test is complete, and install all removed parts.
If the resistance is out of the standard, check the solenoid valve operation.

Solenoid valve	Terminal	StandardResistance
CVT clutch pressure control solenoid valve	No. 1	4.7-5.9 ohms

Solenoid valve	Terminal	StandardResistance
CVT drive pulley pressure control solenoid valve	No. 8	5.0-6.3 ohms
CVT driven pulley pressure control solenoid valve	No. 3	5.0-6.3 '
CVT lock-up clutch control solenoid valve	No. 4	5.0-6.3 ohms
Shift solenoid valve B	No. 5	10.6-13.5 ohms
Shift solenoid valve O/P	No. 2	10.6-13.5 ohms

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

CVT Clutch Pressure Control Solenoid Valve

CVT Clutch Pressure Control Solenoid Valve - Operation Check

Courtesy of HONDA, U.S.A., INC.

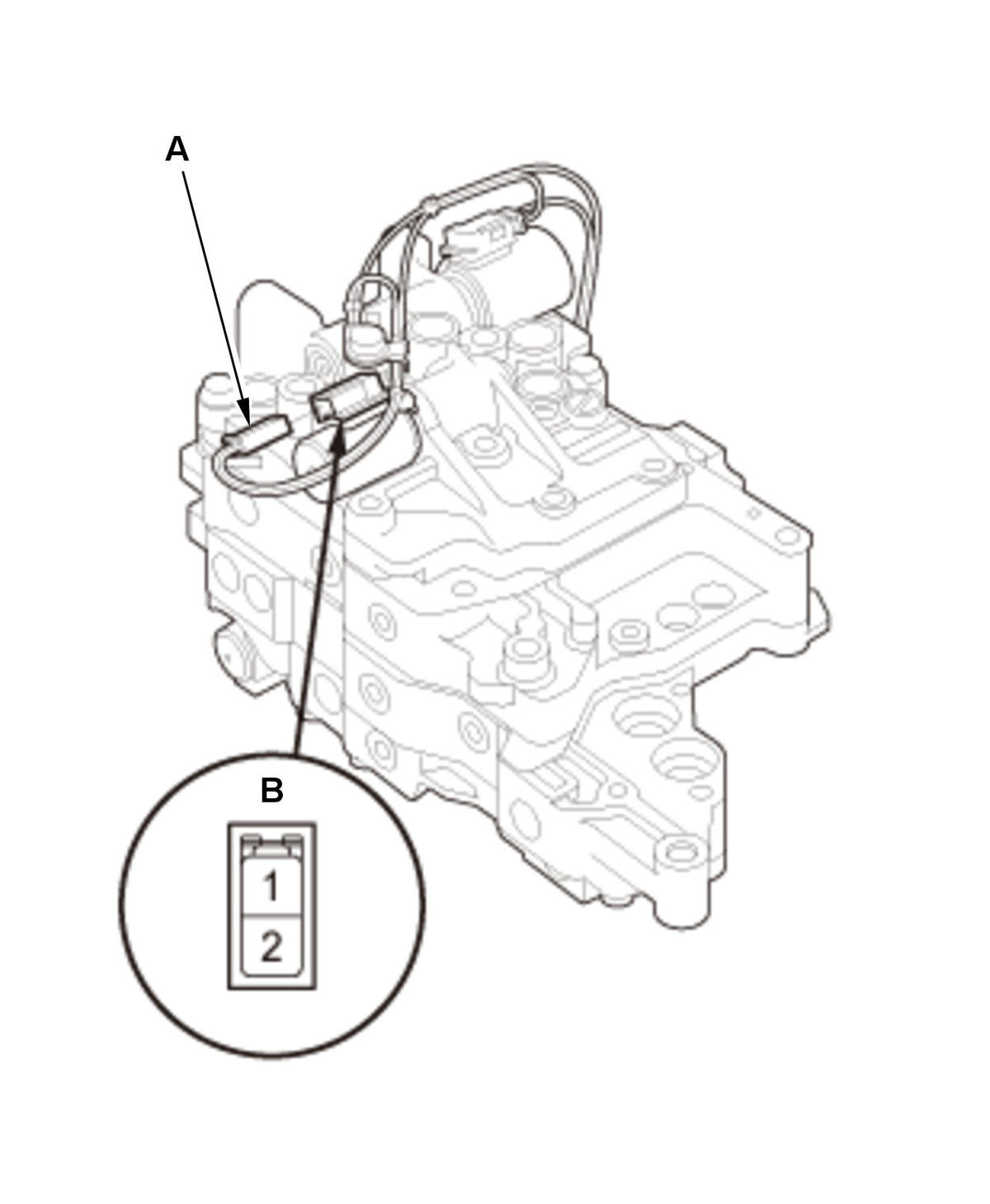

1. Remove the valve body assembly

2. Disconnect the connector (A).

3. Connect a jumper wire from the positive battery terminal to connector (male terminals) (B) terminal No. 2, and connect another jumper wire from the negative battery terminal to connector terminal No. 1.

If a clicking sound is heard, repair or replace the solenoid wire harness.
If no clicking sound is heard, replace the CVT clutch pressure control solenoid valve .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

CVT Drive Pulley Pressure Control Solenoid Valve

CVT Drive Pulley Pressure Control Solenoid Valve - Operation Check

Courtesy of HONDA, U.S.A., INC.

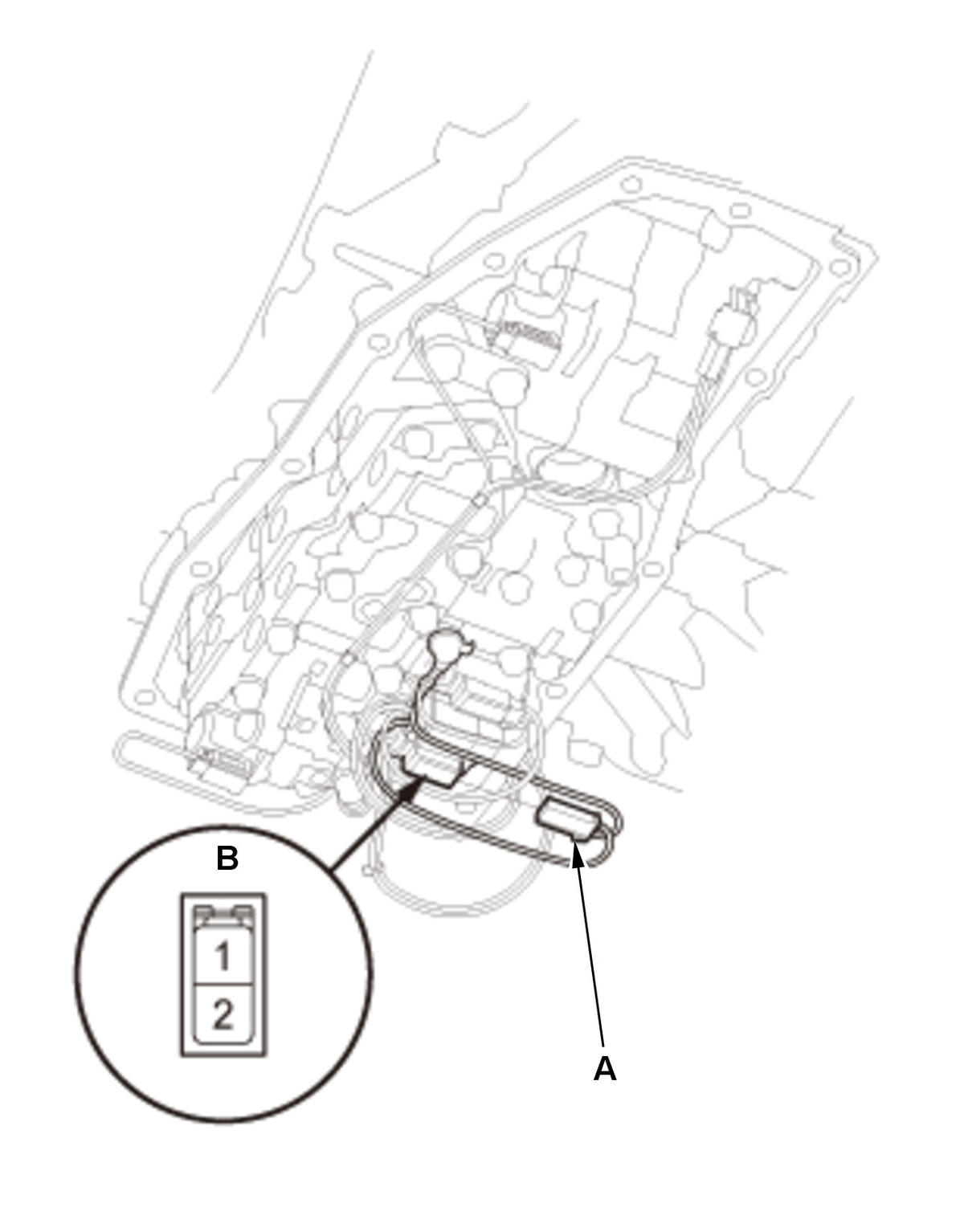

1. Remove the transmission fluid pan .

NOTE: The actual transmission fluid (HCF-2) capacity will vary from the specified capacity based on the length of time the transmission fluid pan is off the transmission. Avoid leaving the transmission fluid pan off for extend periods of time.

2. Remove the transmission fluid strainer

3. Disconnect the connector (A).

4. Connect a jumper wire from the positive battery terminal to connector (male terminals) (B) terminal No. 2, and connect another jumper wire from the negative battery terminal to connector terminal No. 1.

If a clicking sound is heard, repair or replace the solenoid wire harness.
If no clicking sound is heard, replace the CVT drive pulley pressure control solenoid valve .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

CVT Driven Pulley Pressure Control Solenoid Valve

CVT Driven Pulley Pressure Control Solenoid Valve - Operation Check

Courtesy of HONDA, U.S.A., INC.

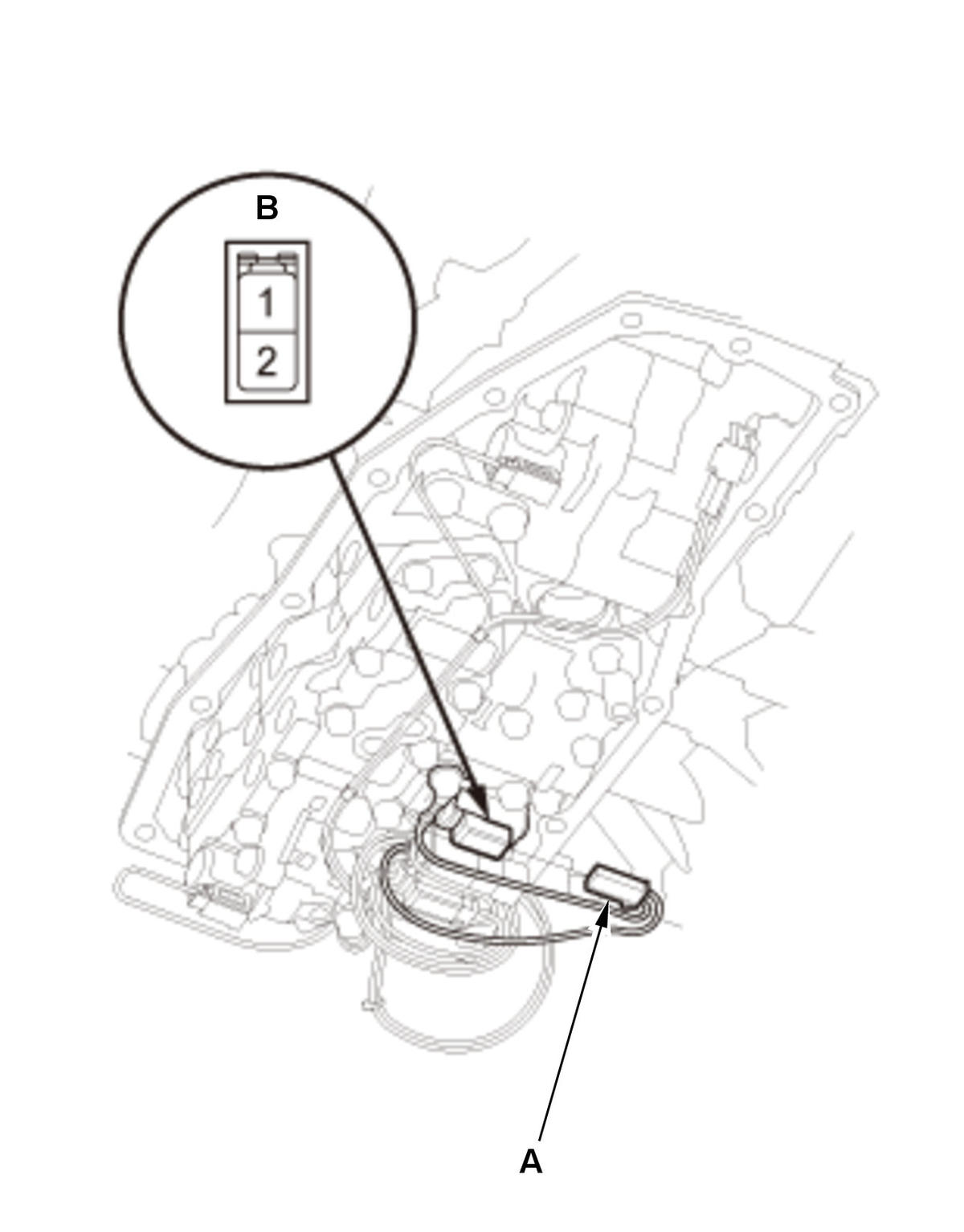

1. Remove the transmission fluid pan .

2. Remove the transmission fluid strainer

3. Disconnect the connector (A).

If a clicking sound is heard, repair or replace the solenoid wire harness.
If no clicking sound is heard, replace the CVT driven pulley pressure control solenoid valve .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

CVT Lock-Up Clutch Control Solenoid Valve

CVT Lock-Up Clutch Control Solenoid Valve - Operation Check

Courtesy of HONDA, U.S.A., INC.

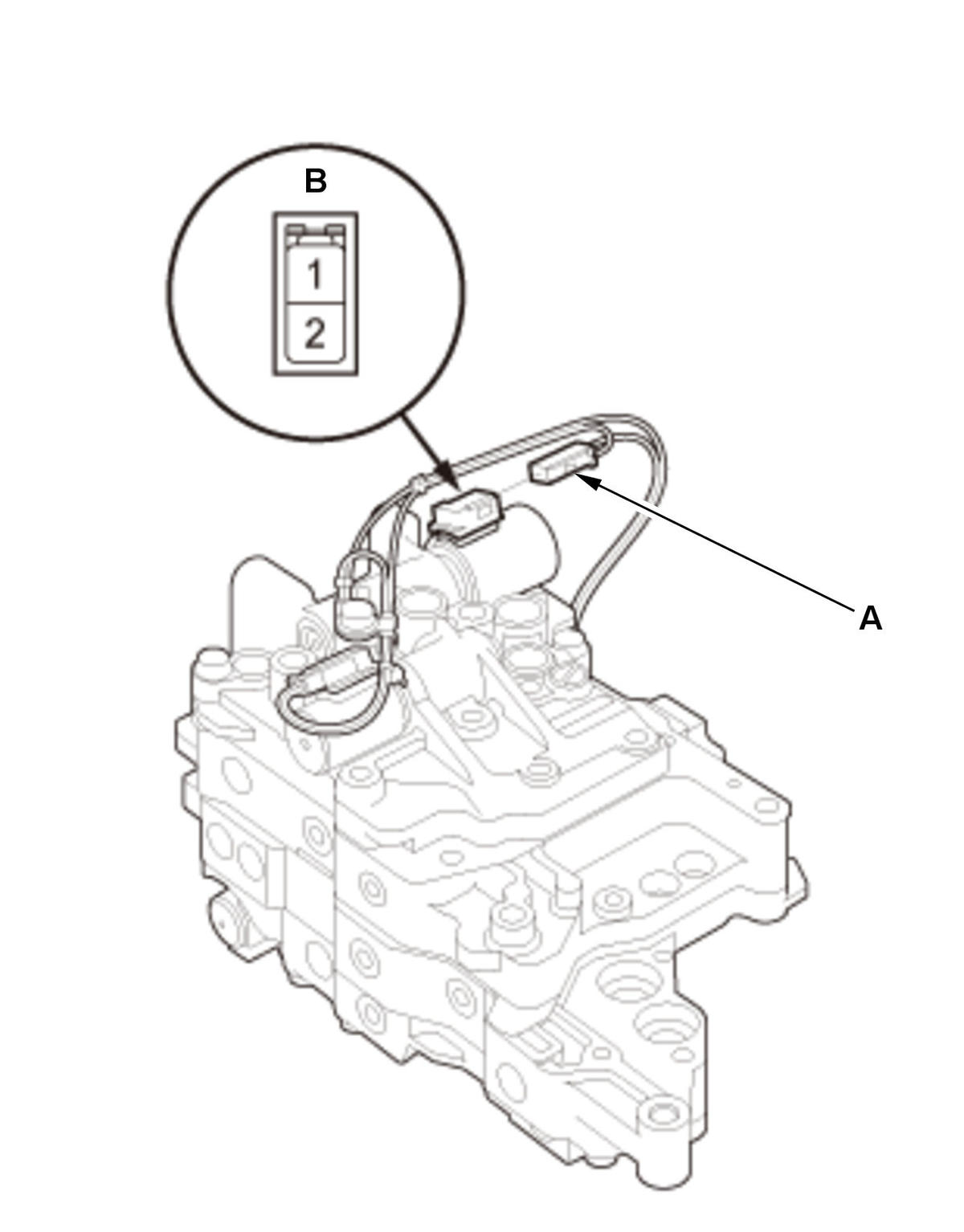

1. Remove the valve body assembly

2. Disconnect the connector (A).

If a clicking sound is heard, repair or replace the solenoid wire harness.
If no clicking sound is heard, replace the CVT lock-up clutch control solenoid valve .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Shift Solenoid Valve B

Shift Solenoid Valve B - Operation Check

Courtesy of HONDA, U.S.A., INC.

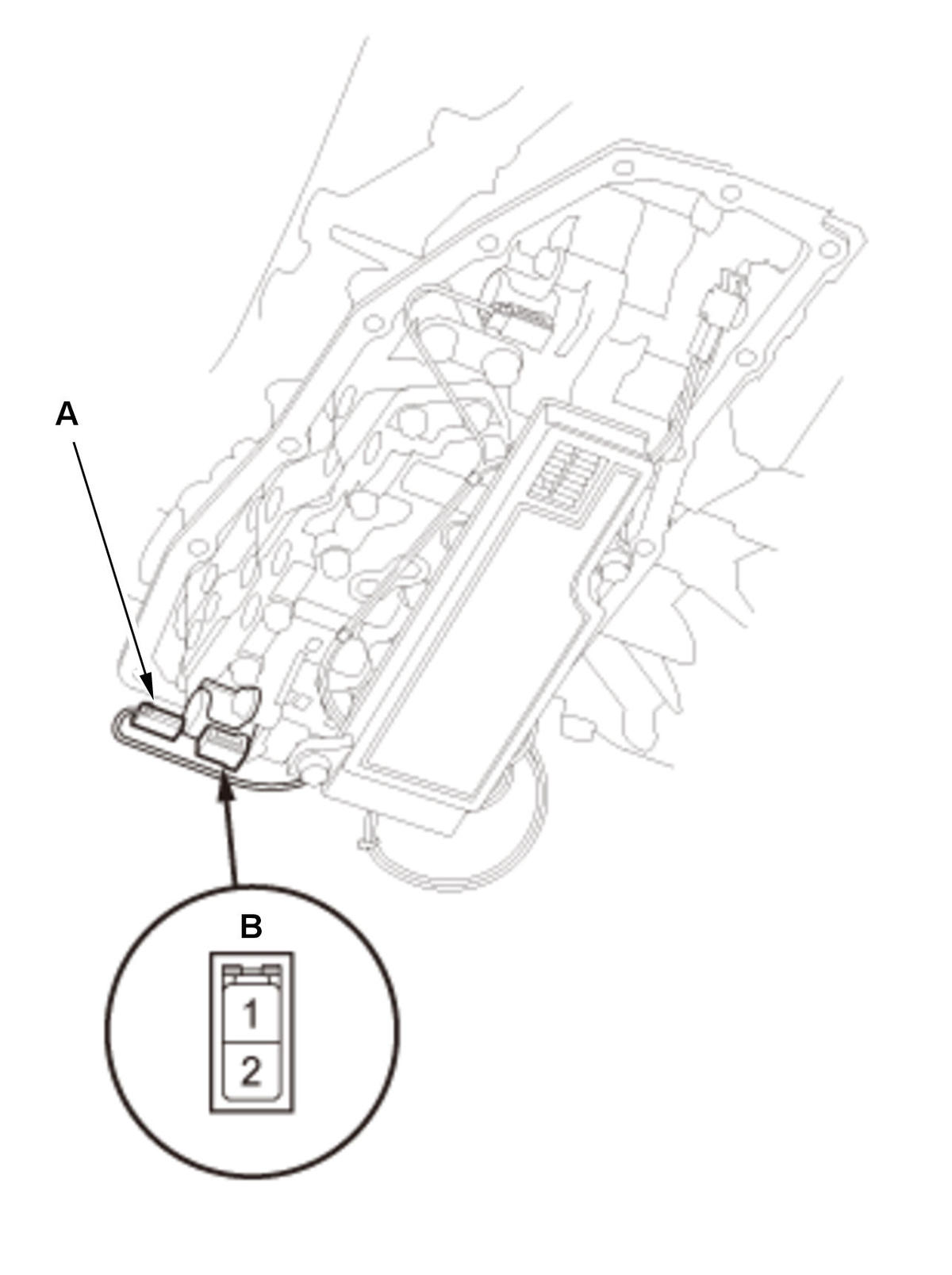

1. Remove the transmission fluid pan .

2. Disconnect the connector (A).

3. Connect a jumper wire from the positive battery terminal to connector (male terminals) (B) terminal No. 1, and connect another jumper wire from the negative battery terminal to the solenoid valve body.

If a clicking sound is heard, repair or replace the solenoid wire harness.
If no clicking sound is heard, replace shift solenoid valve B .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Shift Solenoid Valve O/P

Shift Solenoid Valve O/P - Operation Check

Courtesy of HONDA, U.S.A., INC.

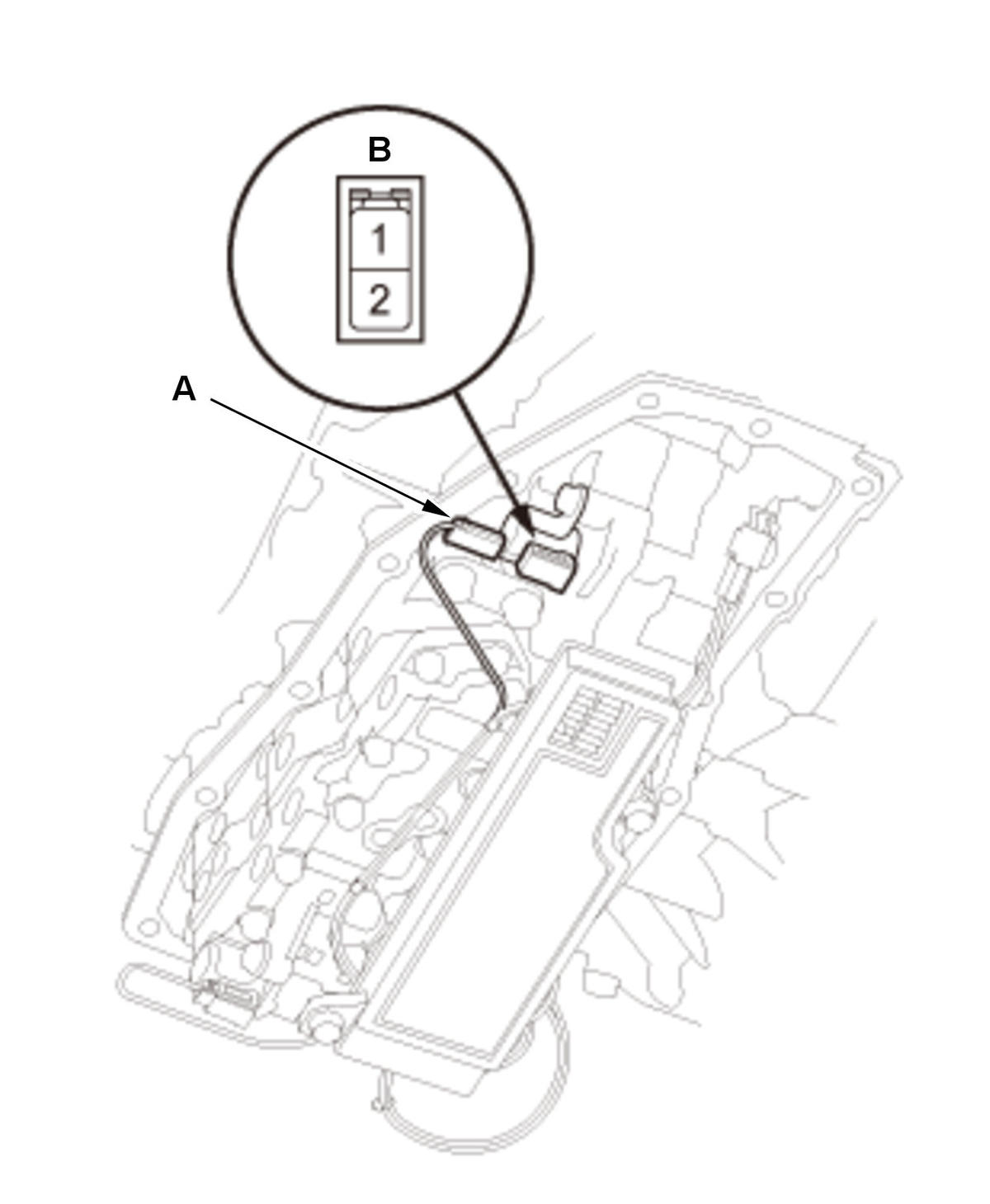

1. Remove the transmission fluid pan .

2. Disconnect the connector (A).

If a clicking sound is heard, go to the next step.
If no clicking sound is heard, replace the shift solenoid valve O/P .

Courtesy of HONDA, U.S.A., INC.

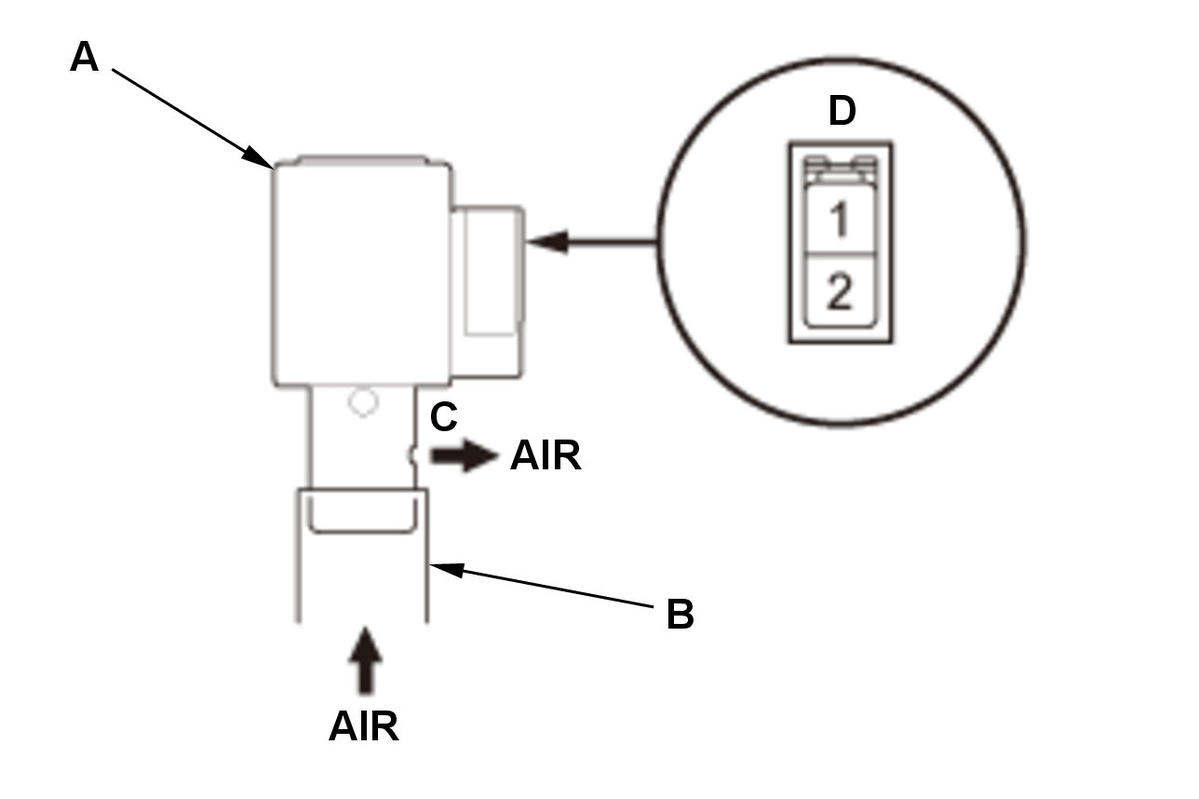

4. Remove the shift solenoid valve O/P

(A).

5. Connect a tube (B) to the shift solenoid valve O/P.

6. Blow air into the tube.

If the air goes out of the port (C), go to the next step.
If the air does not go out of the port, replace the shift solenoid valve O/P .

7. Connect a jumper wire from the positive battery terminal to connector (male terminals) (D) terminal No. 1, and connect another jumper wire from the negative battery terminal to the solenoid valve body.

8. Blow air into the tube.

If the air goes out of the port, replace the shift solenoid valve O/P .
If the air does not go out of the port, repair or replace the solenoid wire harness.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
