Final Drive Shaft Tapered Roller Bearing Preload Inspection (CVT): Notes

WARNING: This page is about a different variant/trim than selected.

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100

Final Drive Shaft Tapered Roller Bearing Preload Inspection

Special Tools Required

Image	Description/Tool Number

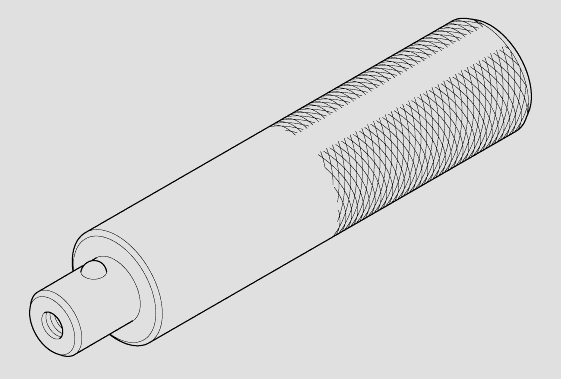

Courtesy of HONDA, U.S.A., INC.	Driver Handle, 15 x 135L 07749-0010000
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 62 x 64 mm 07947-6340400
Courtesy of HONDA, U.S.A., INC.	Preload Inspection Tool 07HAJ-PK40201
Courtesy of HONDA, U.S.A., INC.	Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100
