CVT Differential Backlash Inspection (CVT): Inspection
WARNING: This page is about a different variant/trim than selected.
- Differential Backlash - Inspect

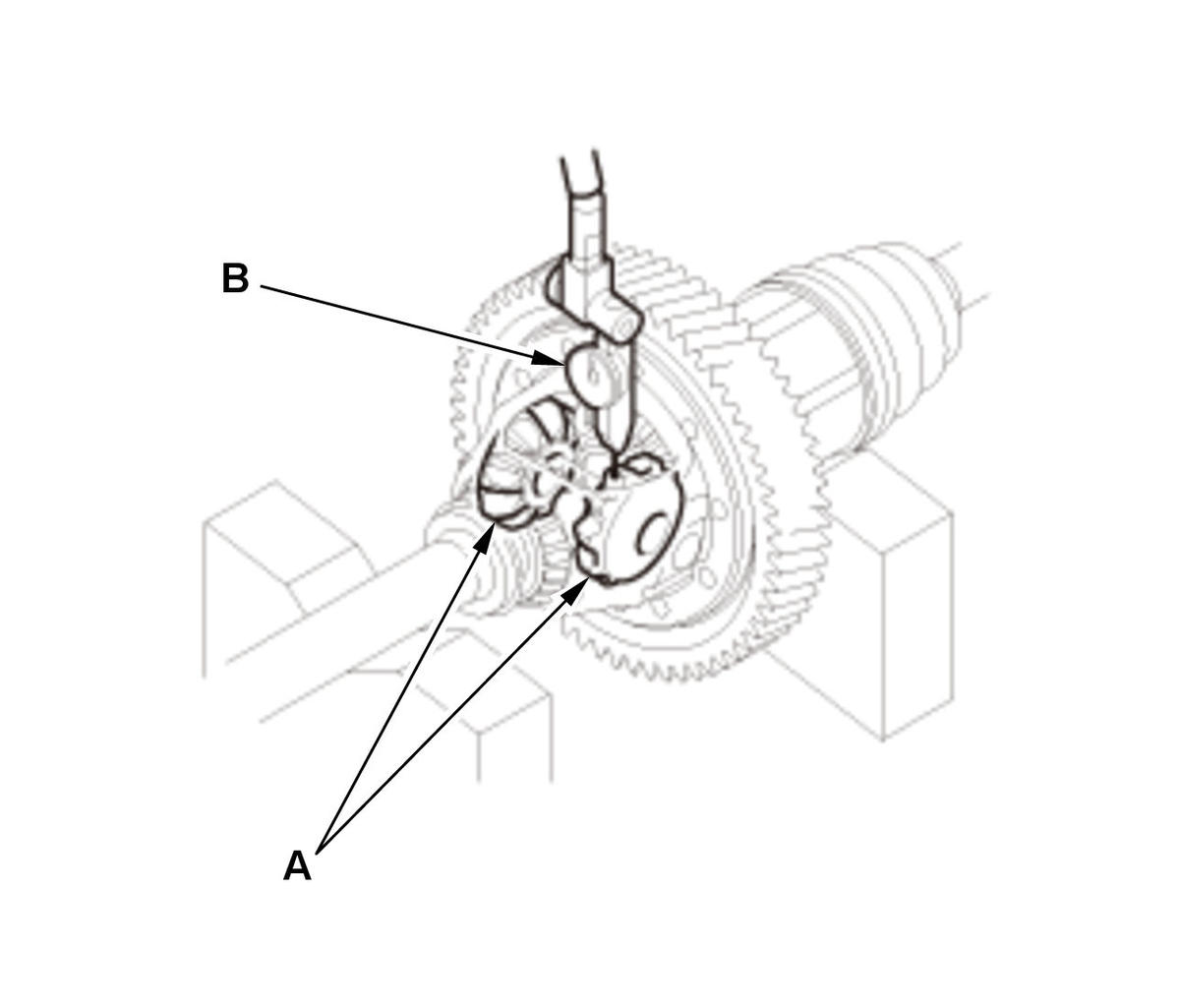

1. Install the driveshaft and the intermediate shaft on the differential, then place the axles on V-blocks. 2. Check the backlash of the pinion gears (A) using a dial indicator (B).
3. If the backlash is out of the standard, replace the differential carrier .
Standard: 0.05-0.15 mm (0.0020-0.0059 in)
