Section 1 (Continuously Variable Transmission (CVT) - Testing & Troubleshooting (Except Hybrid))
>>
Description & Operation
>>
CVT System Description - Hydraulic Flow (CVT)
CVT System Description - Hydraulic Flow (CVT)
WARNING:
This page is about a different variant/trim than selected.
Hydraulic Flow

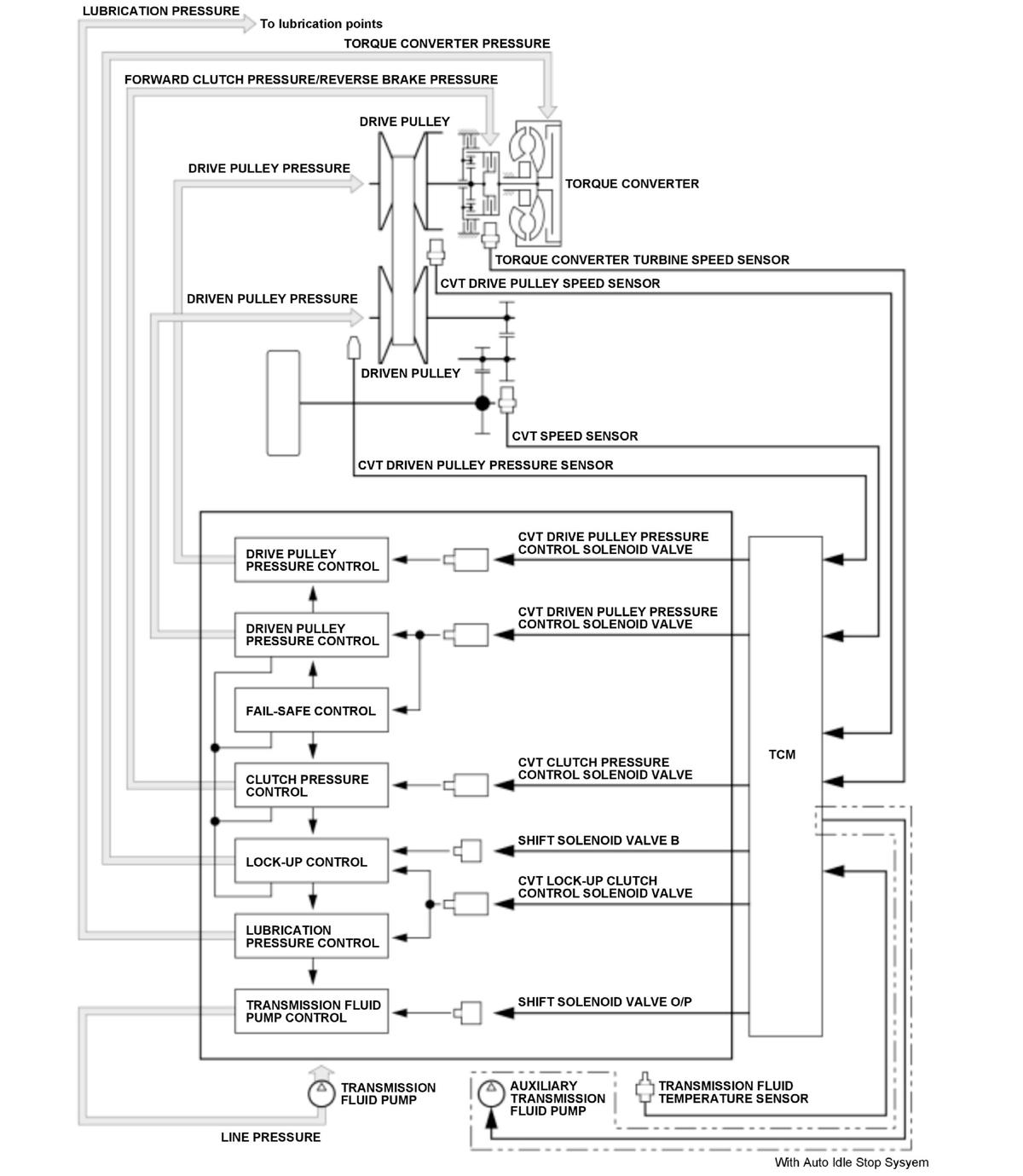

Hydraulic Pressure Flow Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
