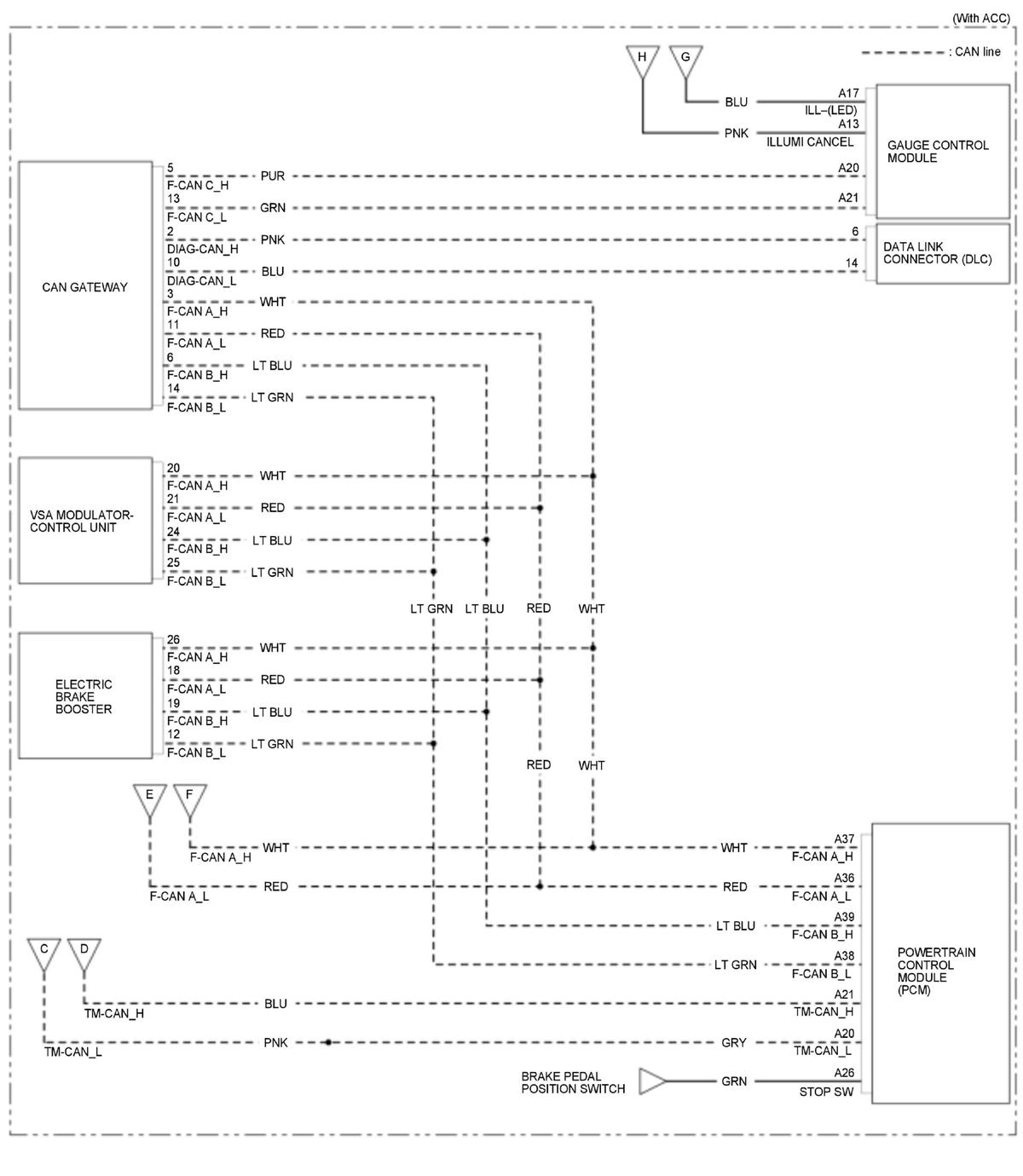

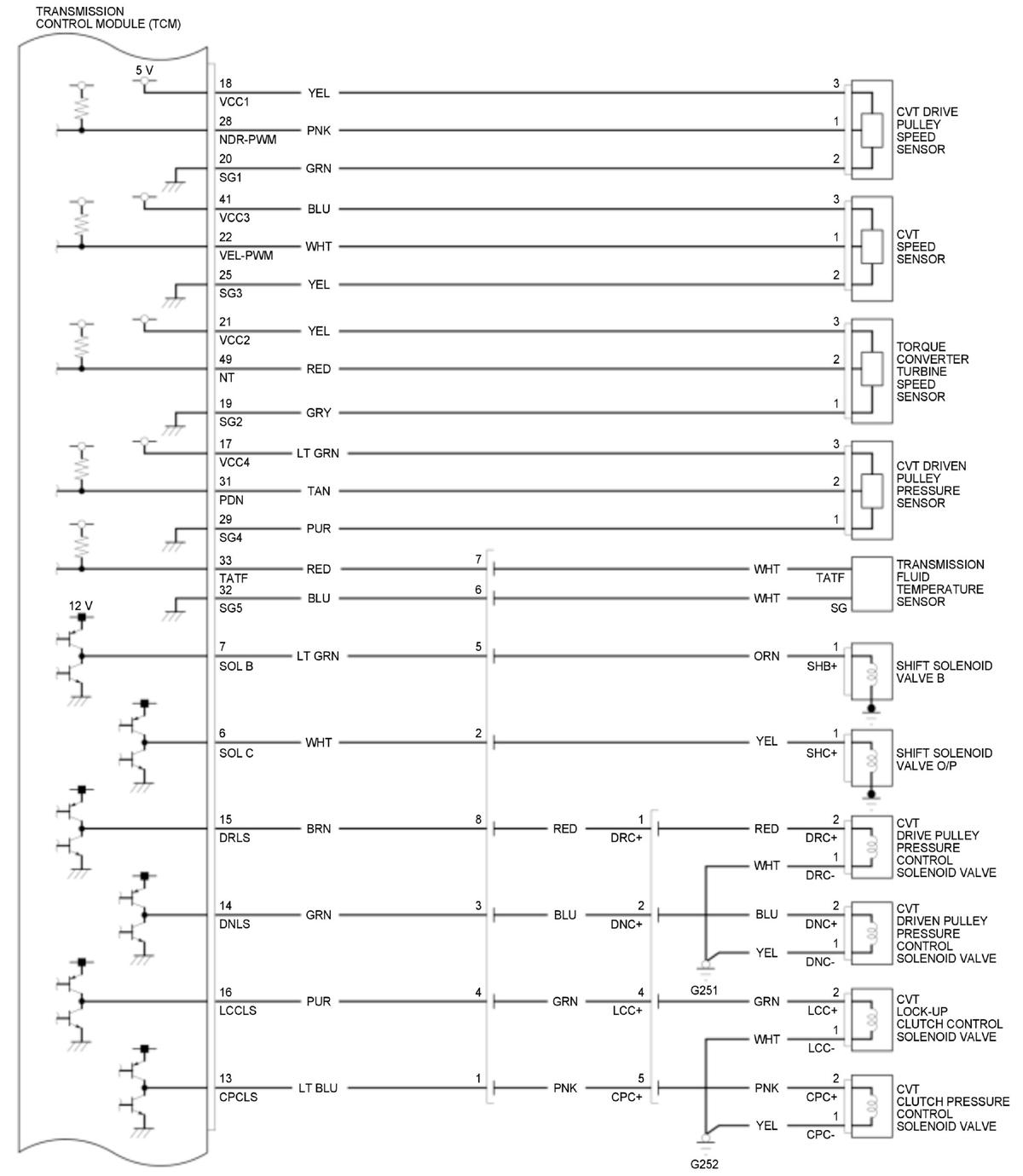

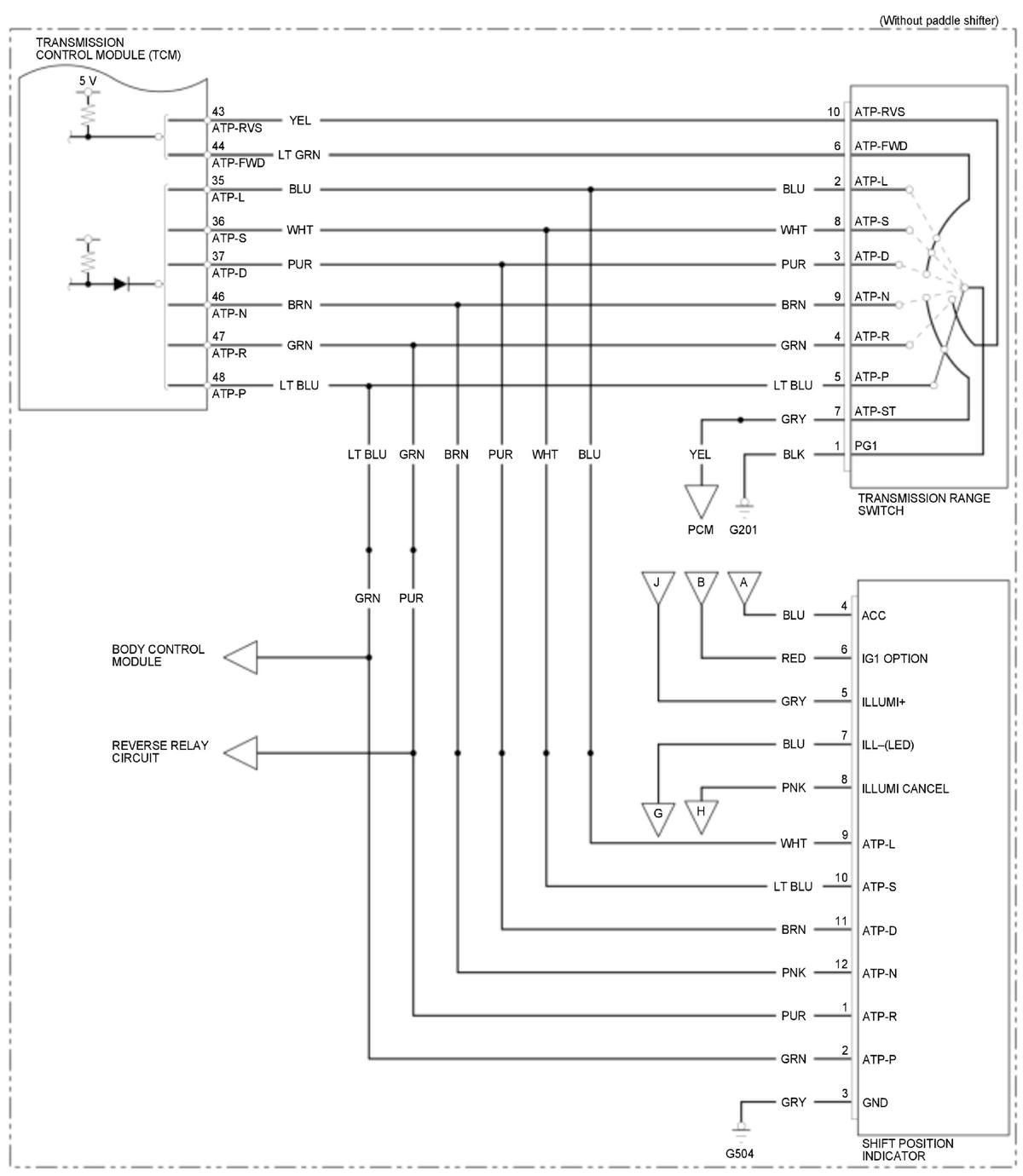

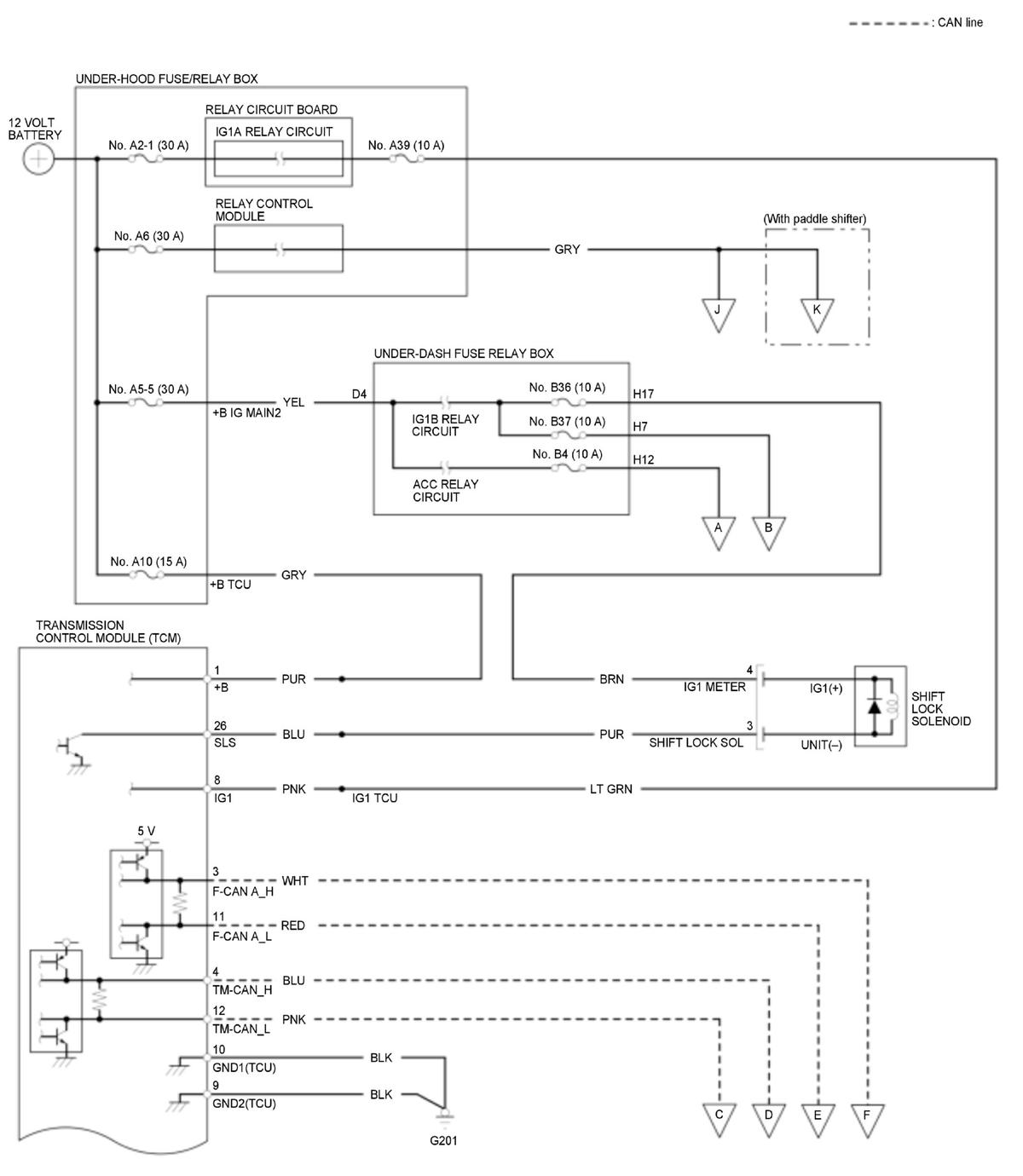

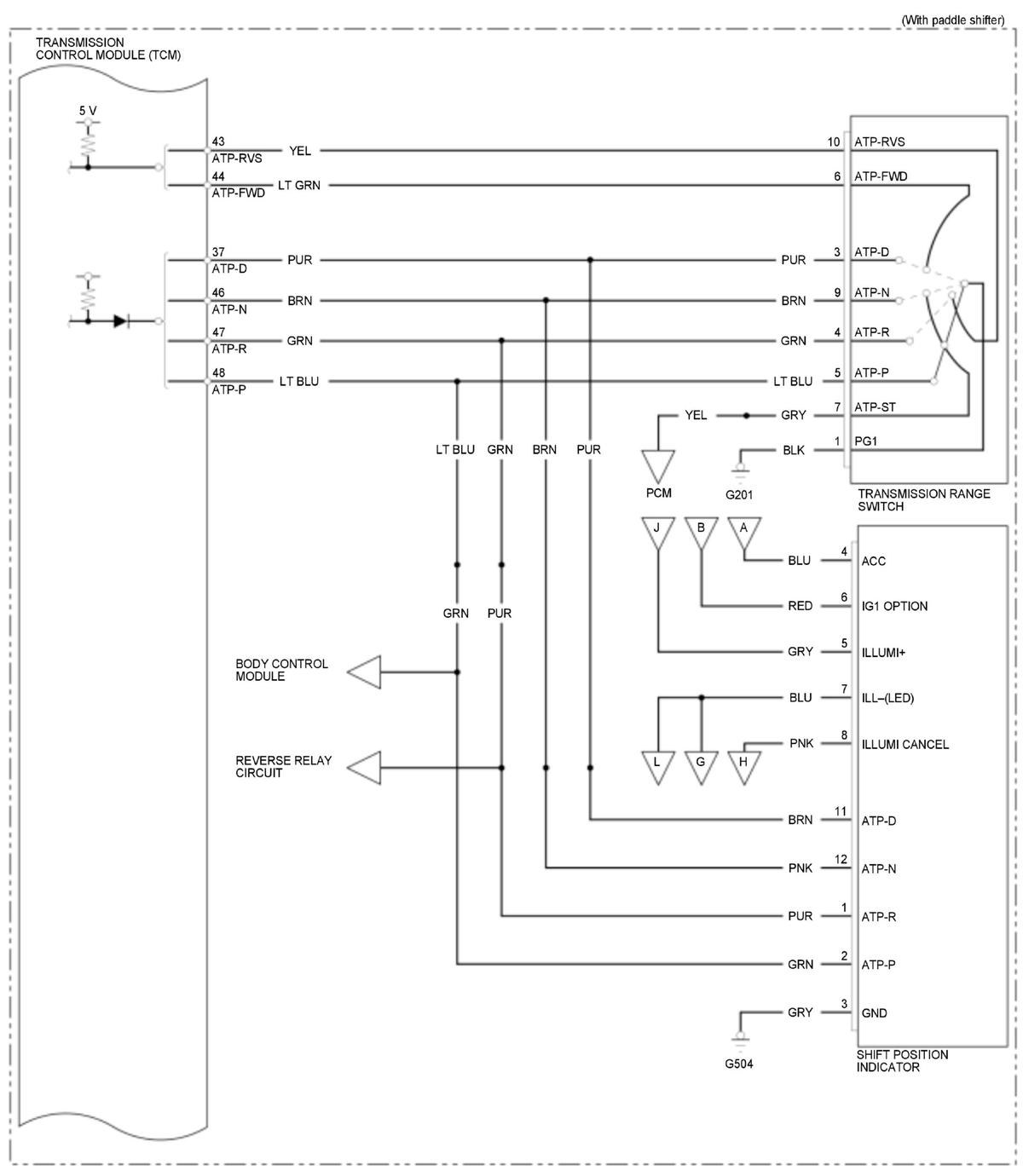

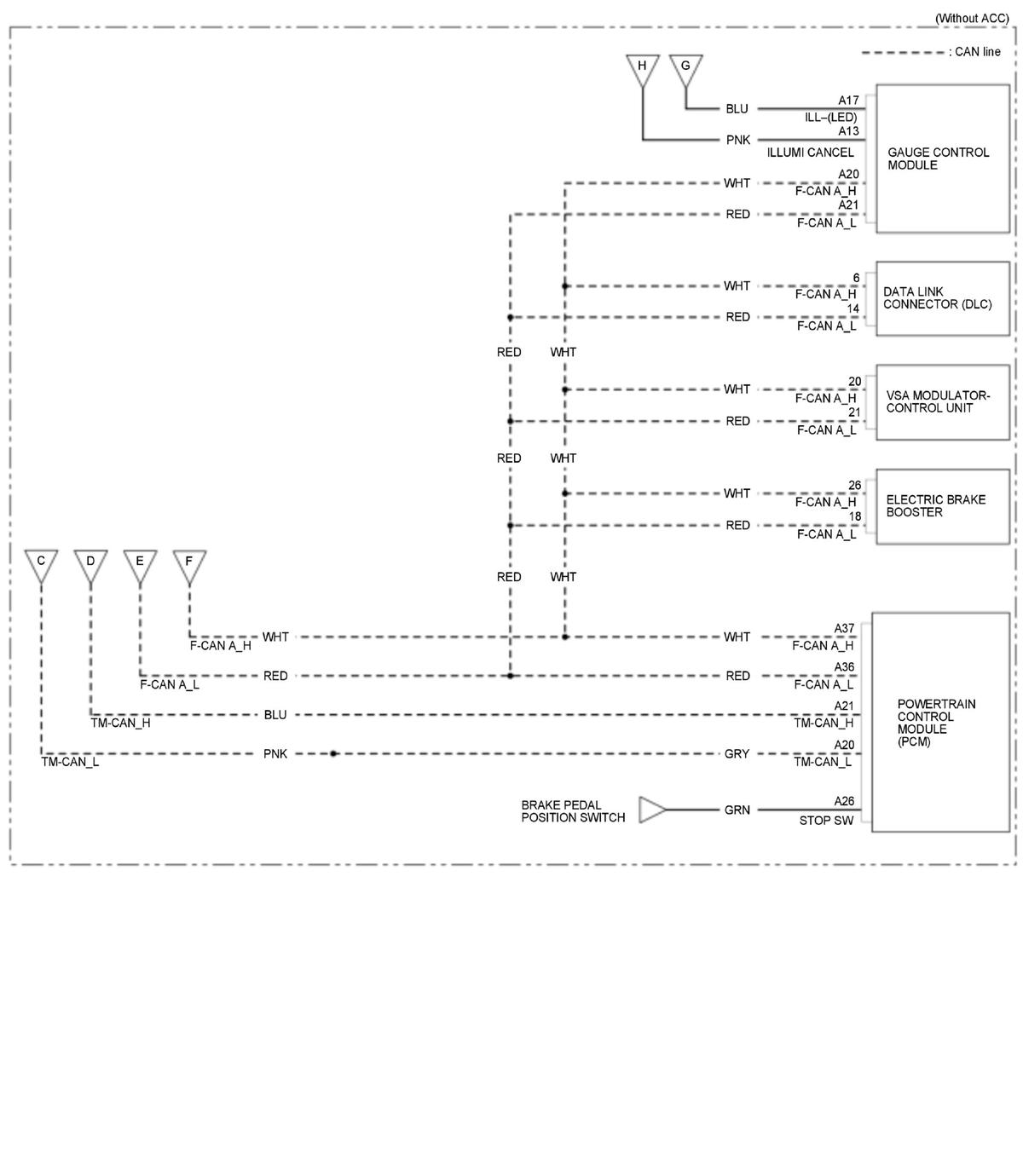

CVT Electronic Control System Circuit Diagram (CVT: Without Auto Idle Stop System)
WARNING: This page is about a different variant/trim than selected.
