Driven Pulley Shaft Thrust Clearance - Adjust

Courtesy of HONDA, U.S.A., INC.

1. Clean the cotter groove of the driven pulley shaft.

2. Install the cotters (A).

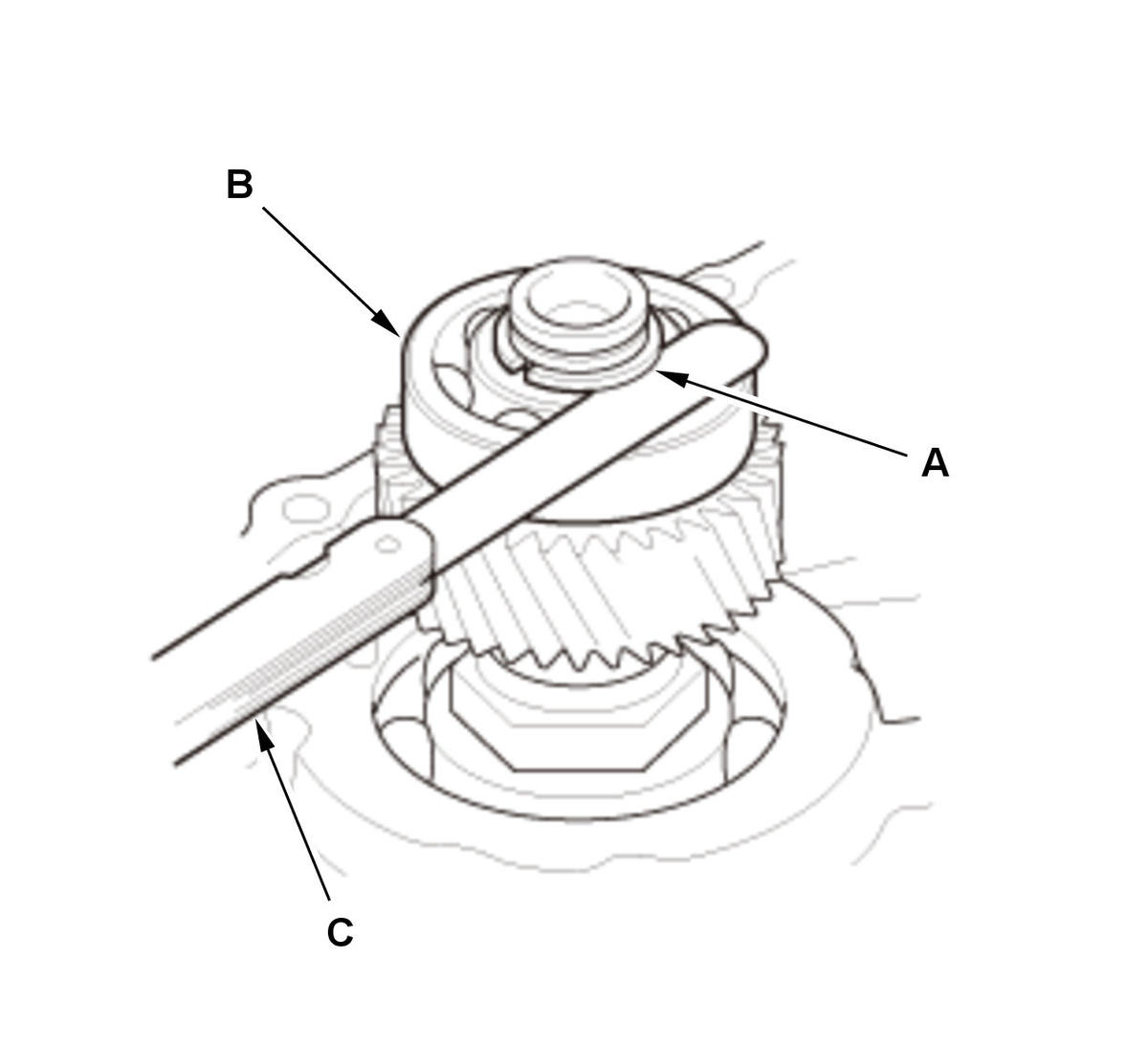

3. Measure the clearance between the cotters and the driven pulley shaft bearing (B) using a feeler gauge (C).

NOTE: Take measurements in at least three places, and use the average as the actual clearance.

4. If the clearance is out of the standard, remove the cotters, and measure its thickness.

5. Refer to the Parts catalog, then select appropriate cotters.

6. Install the selected cotters, then recheck the clearance.

Standard:

0-0.13 mm (0-0.005 in)
