Mainshaft Bearing Installation

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100

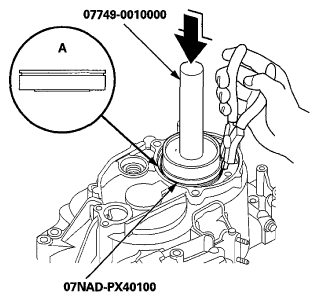

Install the bearing (A) in the direction shown.

Fig 1: Installing Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Expand the snap ring using snap ring pliers, and insert the bearing part-way into the transmission housing.
Release the snap ring pliers, then push the bearing down into transmission housing until the snap ring snaps in place around it using the driver handle and the 78 x 80 mm bearing driver attachment.
After installing the bearing, check that the snap ring (A) is seated in the bearing and housing groove, and that the snap ring end gap (B) is 0-7 mm (0-0.28 in).

Fig 2: Identifying Snap Ring End Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reverse idler gear (see REVERSE IDLER GEAR DISASSEMBLY/INSPECTION/REASSEMBLY ).
