Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
Remove the left front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the transmission fluid pressure switch B (3rd clutch) connector, and remove transmission fluid pressure switch B (3rd clutch).

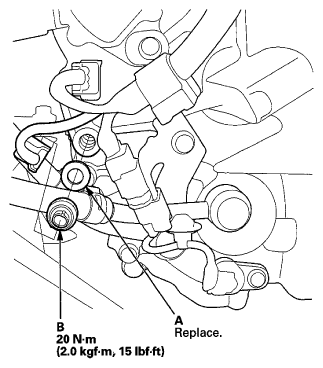

Fig 1: Transmission Fluid Pressure Switch B (3rd Clutch) And Sealing Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new transmission fluid pressure switch B (3rd clutch) with a new sealing washer (A), and tighten the switch.
Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
Install the left front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
