Differential Carrier and Final Driven Gear Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Inspect and adjust the carrier bearing preload whenever the differential carrier is replaced.
  1. If necessary, remove carrier bearing (A). See Carrier Bearing Replacement .

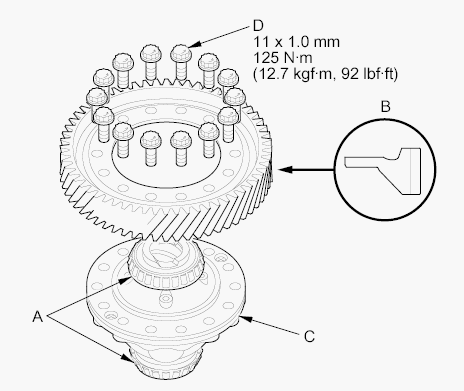

    Fig 1: Final Driven Gear, Differential Carrier And Final Driven Gear Bolts With Torque Specifications
    G00523671Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the final driven gear (B) from the differential carrier (C).
    NOTE: The final driven gear bolts (D) have left-hand threads.
  3. Replace the differential carrier or the final driven gear.
  4. Install the final driven gear on the differential carrier in the direction shown.
  5. Tighten the bolts to the specified torque in a crisscross pattern in at least two steps.
  6. If you removed the carrier bearing from the differential carrier, install the carrier bearings (see Carrier Bearing Replacement ): replace it if it is damaged.
