Carrier Bearing Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Installer Attachment, 45 x 55 mm 07MAD-PR90100

NOTE:

The carrier bearing and the outer race should be replaced as a set.
Inspect and adjust the carrier bearing preload whenever the bearing is replaced.
Check the carrier bearing for wear and rough rotation. If the bearing is OK, removal is not necessary.

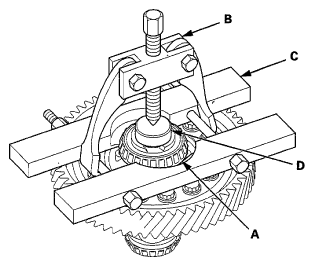

Remove the carrier bearing (A) with a commercially available bearing puller (B), a bearing separator (C), and a spacer (D).

Fig 1: Removing Carrier Bearing With Commercially Bearing Puller, Bearing Separator And Spacer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install new carrier bearings using the 45 x 55 mm installer attachment and a press.
NOTE:
- Press the bearing on until it bottoms.
- Use the small end of the 45x55 mm installer attachment to install the bearings.
- Press the bearing on securely so there is no clearance between the bearing and the differential carrier.

  Fig 2: Pressing Bearing
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
