A/T Clutch Pressure Control Solenoid Valve C Test

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

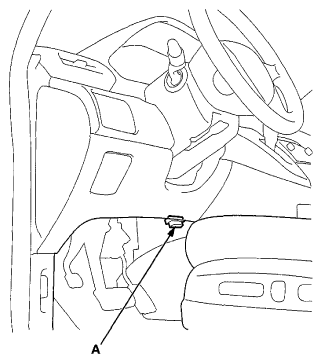

    Fig 1: Identifying Data Link Connector (DLC)
    G06966941Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II).

    Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).

  3. Select Clutch Pressure Control (Linear) Solenoid Valve C in the Miscellaneous Test Menu with the HDS.
  4. Test A/T clutch pressure control solenoid valve C with the HDS.
    • If the valve tests OK, the test is complete. Disconnect the HDS.
    • If the valve does not test OK, follow the instructions on the HDS.
    • If the valve does not test OK, and the HDS does not determine the cause, go to step 5.
  5. Remove the air intake scoop (see step  5 ).
  6. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  7. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  8. Remove the intake air duct (see step  10 ).
  9. Remove the main under-hood fuse box (see step  11 ).
  10. Remove the battery base (see step  12 ).
  11. Disconnect the A/T clutch pressure control solenoid valve C connector.
    Fig 2: Identifying A/T Clutch Pressure Control Solenoid Valve C Connector
    G06966942Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Measure the A/T clutch pressure control solenoid valve C resistance at the connector terminals.

    Standard: 3-10 Ω

  13. Connect a jumper wire from the negative battery terminal to A/T clutch pressure control solenoid valve C connector terminal No. 1, and connect another jumper wire from the positive battery terminal to connector terminal No. 2.
    • If a clicking sound is heard, the valve is OK, and the test is complete, then go to step  24.
    • If no clicking sound is heard, go to step 14.
  14. Remove A/T clutch pressure control solenoid valve C, the 8 x 53 mm ATF pipe (A), the 8 x 36 mm ATF pipe (B), the O-rings (D), the 8 x 25.2 ATF joint pipe (E), and the gasket (F).

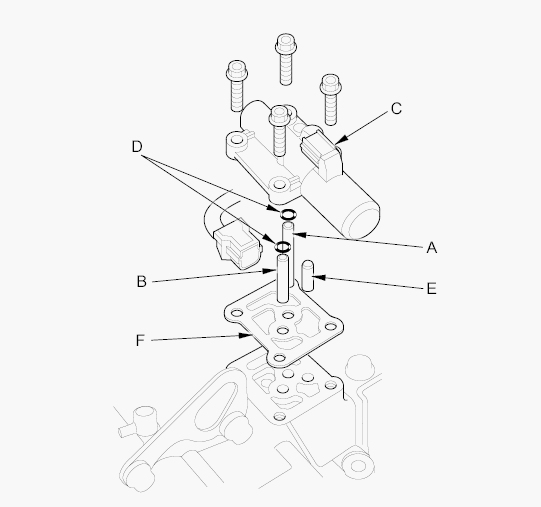

    Fig 3: Identifying A/T Clutch Pressure Control Solenoid Valve C, ATF Pipes, O-Rings, ATF Joint Pipe And Gasket
    G00522722Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Check the fluid passage of the A/T clutch pressure control solenoid valve for contamination.
  16. Connect a jumper wire from the negative battery terminal to A/T clutch pressure control solenoid valve C connector terminal No. 1, and connect another jumper wire from the positive battery terminal to connector terminal No. 2. Make sure A/T clutch pressure control solenoid valve C moves.
    Fig 4: Checking Valve Movement
    G06966944Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Disconnect the jumper wires, and check the valve movement (C) at the fluid passage. If the valve binds or moves sluggishly, or if the valve does not operate, replace A/T clutch pressure control solenoid valve C.
  18. Clean the mounting surfaces and the fluid passages of the A/T clutch pressure control solenoid valve body and the transmission housing.
  19. Install the 8 x 53 mm ATF pipe (A) with the filter end into its mounting hole (B).
    Fig 5: Identifying ATF Pipe And Mounting Hole
    G06966945Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Check the height (A) of the 8 x 53 mm ATF pipe (B) between the top (C) of the pipe and the solenoid valve body mounting surface (D). The height is about 7 mm (0.28 in). If the height is over 7 mm (0.28 in), push the pipe until it bottoms in the accumulator body.
    Fig 6: Checking Height Of ATF Pipe Between Top Of Pipe And Solenoid Valve Body Mounting Surface
    G06966946Courtesy of AMERICAN HONDA MOTOR CO., INC.
  21. Install a new gasket (A) on the transmission housing, and install the 8 x 36 mm ATF pipe (B) with the filter end into the transmission housing and the 8 x 25.2 mm ATF joint pipe (D).

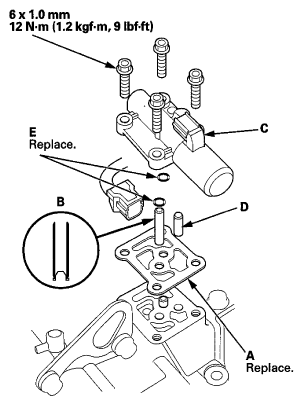

    Fig 7: Gasket, ATF Pipe, ATF Joint Pipe And O-Rings With Torque Specifications
    G06966947Courtesy of AMERICAN HONDA MOTOR CO., INC.
  22. Install new O-rings (E) over the ATF pipes.
  23. Install A/T clutch pressure control solenoid valve C.
  24. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  25. Install the battery base (see step  70 ).
  26. Install the main under-hood fuse box (see step  71 ).
  27. Install intake air duct (see step  72 ).
  28. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  29. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  30. Install the air intake scoop (see step  77 ).
