A/T Clutch Pressure Control Solenoid Valve C Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air intake scoop (see step  5 ).
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  4. Remove the intake air duct (see step  10 ).
  5. Remove the main under-hood fuse box (see step  11 ).
  6. Remove the battery base (see step  12 ).
  7. Disconnect the A/T clutch pressure control solenoid valve C connector (A).

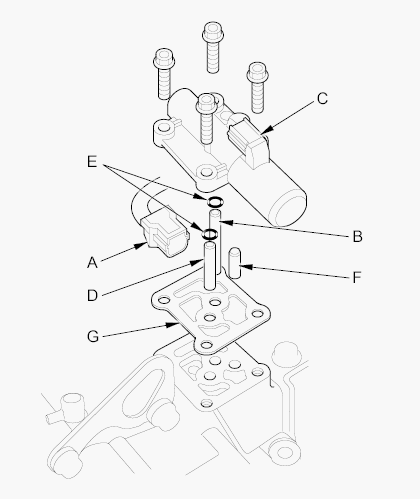

    Fig 1: Identifying A/T Clutch Pressure Control Solenoid Valve C Connector, ATF Pipes, O-Rings, ATF Joint Pipe And Gasket
    G00522723Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove A/T clutch pressure control solenoid valve C, the 8 x 53 mm ATF pipe (B), the 8 x 36 mm ATF pipe (D), the O-rings (E), the 8 x 25.2 mm ATF joint pipe (F), and the gasket (G).
  9. Clean the mounting surfaces and the fluid passages of the transmission housing.
  10. Install the 8 x 53 mm ATF pipe (A) with the filter end into its mounting hole (B).
    Fig 2: Identifying ATF Pipe And Mounting Hole
    G06966949Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Check the height (A) of the 8 x 53 mm ATF pipe (B) between the top (C) of the pipe and the solenoid valve body mounting surface (D). The height is about 7 mm (0.28 in). If the height is over 7 mm (0.28 in), push the pipe until it bottoms in the accumulator body.
    Fig 3: Checking Height Of ATF Pipe Between Top Of Pipe And Solenoid Valve Body Mounting Surface
    G06966950Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install a new gasket (A) on the transmission housing, and install the 8 x 36 mm ATF pipe (B) with the filter end into the transmission housing and the 8 x 25.2 mm ATF joint pipe (D).

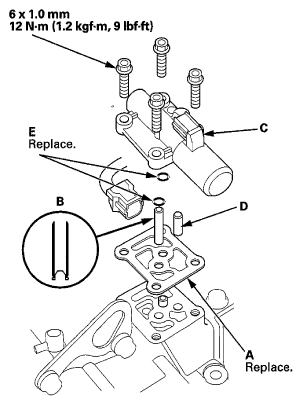

    Fig 4: Transmission Housing Gasket, ATF Pipe, O-Rings And ATF Joint Pipe With Torque Specifications
    G06966951Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install new O-rings (E) over the ATF pipes.
  14. Install a new A/T clutch pressure control solenoid valve C.
  15. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  16. Install the battery base (see step  70 ).
  17. Install the main under-hood fuse box (see step  71 ).
  18. Install the intake air duct (see step  72 ).
  19. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  20. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  21. Install air intake scoop (see step  77 ).
