Intake Air Resonator Removal/Installation

  1. Remove the air intake scoop (A).

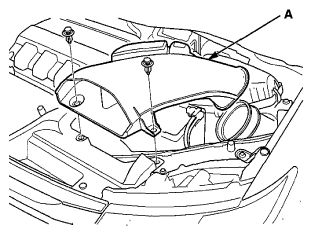

    Fig 1: Identifying Air Intake Scoop
    G06966531Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT  ).
  3. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  4. Remove the battery base (see step 10 on ENGINE REMOVAL ).
  5. Remove the intake air resonator (A).

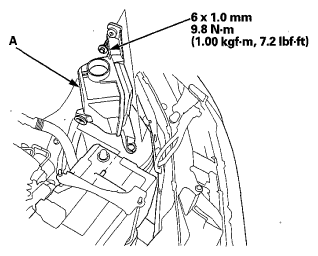

    Fig 2: Intake Air Resonator With Torque Specifications
    G06966532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the parts in the reverse order of removal.
