Radiator and Fan Replacement

NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damaging the wiring and terminals, unplug the wiring connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact any other wiring or hoses, or interfere with any other parts.
  1. Remove the front grille (see FRONT GRILLE REPLACEMENT ).
  2. Raise the vehicle on the lift.
  3. Drain the engine coolant (see COOLANT CHECK  ).
  4. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).

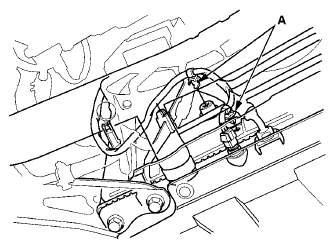

  5. Remove the harness clamp (A) from the radiator fan shroud.
    Fig 1: Identifying Harness Clamp Of Radiator Fan Shroud
    G08078921Courtesy of AMERICAN HONDA MOTOR CO., INC.

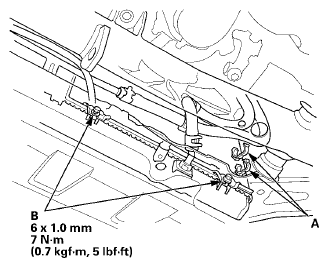

  6. 4WD model: Unclamp the ATF cooler hose clamps (A).
    Fig 2: ATF Cooler Hose Clamps And A/C Condenser Fan Shroud Mounting Bolts With Torque Specifications
    G08078922Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Loosen the A/C condenser fan shroud mounting bolts (B).
  8. Lower the vehicle on the lift.

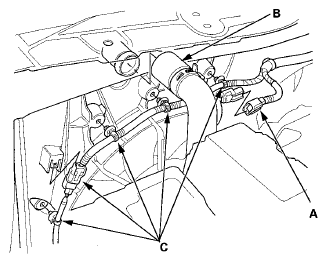

  9. Disconnect the radiator fan motor connector (A) and the radiator upper hose (B), then remove the harness clamps (C).
    Fig 3: Identifying Radiator Fan Motor Connector, Radiator Upper Hose And Harness Clamps
    G08078923Courtesy of AMERICAN HONDA MOTOR CO., INC.

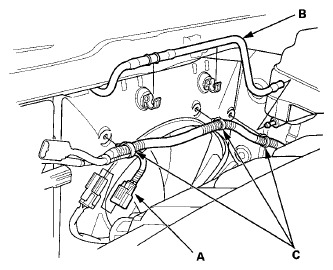

  10. Disconnect the A/C condenser fan motor connector (A) and the coolant reservoir hose (B), then remove the harness clamps (C).
    Fig 4: Identifying A/C Condenser Fan Motor Connector, Coolant Reservoir Hose And Harness Clamps
    G08078924Courtesy of AMERICAN HONDA MOTOR CO., INC.

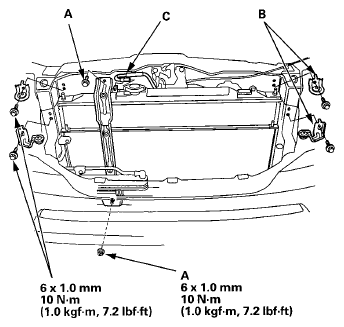

  11. Remove the bulkhead bracket mounting bolt/nut (A) and the upper brackets/cushions (B), then disconnect the coolant reservoir hose (C).
    Fig 5: Upper Brackets/Cushions, Coolant Reservoir Hose And Bulkhead Bracket Mounting Bolt/Nut With Torque Specifications
    G08078925Courtesy of AMERICAN HONDA MOTOR CO., INC.

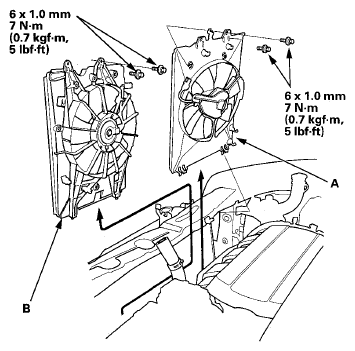

  12. Remove the A/C condenser fan shroud assembly (A), then remove the radiator fan shroud assembly (B).
    NOTE: Move the radiator fan shroud assembly toward the A/C compressor side of the vehicle to allow for enough space to lift it up and away from the A/C condenser fan shroud assembly.
    Fig 6: A/C Condenser And Radiator Fan Shroud Assembly With Torque Specifications
    G08078926Courtesy of AMERICAN HONDA MOTOR CO., INC.

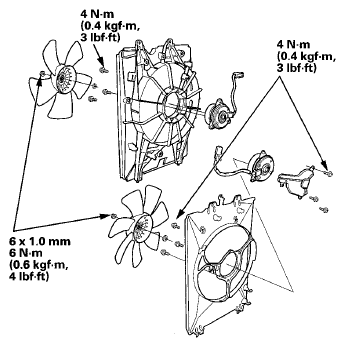

  13. Disassemble the fan shrouds.
    Fig 7: Disassembled Fan Shrouds With Torque Specifications
    G08078927Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Raise the vehicle on the lift.

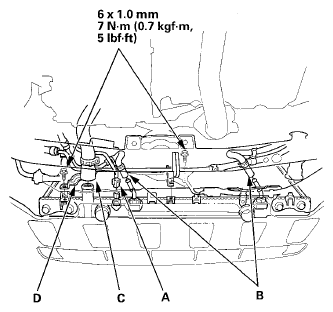

  15. Disconnect the ECT sensor 2 connector (A), the ATF cooler hoses (B), the lower radiator hose (C) and remove the ATF cooler hose brackets (D).
    Fig 8: ECT Sensor 2 Connector, ATF Cooler Hoses, Lower Radiator Hose And ATF Cooler Hose Brackets With Torque Specifications
    G08078928Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Lower the vehicle on the lift.
  17. Pull up the radiator assembly (A), then remove the lower mounting cushions (B).
    Fig 9: Radiator Assembly And Lower Mounting Cushions With Torque Specifications
    G08078929Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the related parts from the radiator.
  19. Install the radiator in the reverse order of removal. Make sure the upper and lower mounting cushions are set securely.
  20. Fill the radiator with engine coolant, and bleed the air from the cooling system (see step  8 under Coolant Replacement ).
  21. Clean up any spilled engine coolant.
  22. Inspect for engine coolant leaks.
