Splash Shield Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the bolts, and the clips (A, B, C), then remove the splash shield (D).
NOTE: To release the clips B, pry up on the center pin at the notch (E).

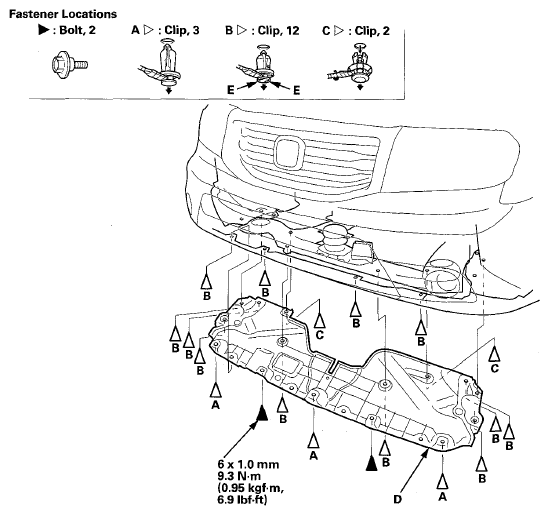

Fig 1: Splash Shield With Bolts And Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
