Transmission Range Switch Replace

  1. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the auxiliary under-hood fuse/relay box from its bracket, and remove the bracket from the battery base.
  3. Remove the intake air duct and the air cleaner housing.
  4. Remove the battery base and the battery base bracket.

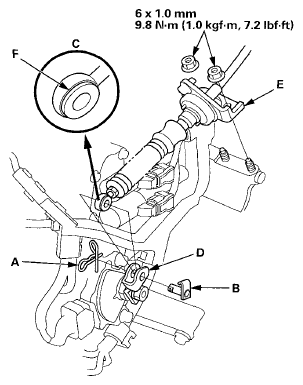

  5. Remove the spring clip (A) and the control pin (B), then separate the shift cable end (C) from the selector control lever (D).
    Fig 1: Spring Clip, Control Pin And Shift Cable End With Torque Specifications
    G08087392Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the nuts securing the shift cable bracket (E).
  7. Check the bushing (F) in the shift cable end for proper fit and wear. If the bushing is loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT  ).
  8. Disconnect the transmission range switch connector.
  9. Pry the lock tab of the lock washer (A) on the selector control lever (B), and remove the nut (C), the lock washer, the spring washer (D), and the selector control lever.
    Fig 2: Identifying Lock Washer, Selector Control Lever, Nut And Spring Washer
    G08087393Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Pry the lock tabs of the lock washer (E) on the transmission range switch (F), hold the selector control shaft (G) with a 6 mm wrench, and loosen the locknut (H).
  11. Remove the locknut and the lock washer, then remove the transmission range switch (two bolts).
  12. Set the transmission range switch (A) to the N position, by turning the selector control shaft hub (B) of the switch until it aligns with N position line (C).
    Fig 3: Identifying Transmission Range Switch, Selector Control Shaft Hub And Position Line
    G08087394Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. With a 6 mm wrench, turn the selector control shaft fully counterclockwise (viewed from the shaft end) to the P position. Then turn the selector control shaft clockwise two clicks to the N position.
    Fig 4: Turning Selector Control Shaft Fully Counterclockwise
    G08087395Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Install the transmission range switch (A) gently over the selector control shaft (B), and install the bolts loosely.
    Fig 5: Identifying Transmission Range Switch And Selector Control Shaft
    G08087396Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Install a new lock washer (A) over the selector control shaft (B) by aligning the indicator tab (C) of the lock washer with the N positioning line (D) on the transmission range switch (E). Then install the locknut (F).
    Fig 6: Identifying Lock Washer, Selector Control Shaft, Indicator Tab And N Positioning Line
    G08087397Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Push the locknut against the transmission housing to seat the transmission range switch into the selector control shaft, and tighten the locknut (A) to 18 N.m (1.8 kgf.m, 13 lbf.ft) while holding the selector control shaft (B) with a 6 mm wrench (C), then bend the lock tabs (D) of the lock washer against the locknut.
    Fig 7: Locknut, Selector Control Shaft, Wrench And Lock Tabs With Torque Specifications
    G08087398Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Tighten the bolts (E) securing the transmission range switch to 12 N.m (1.2 kgf.m, 8.7 lbf.ft).

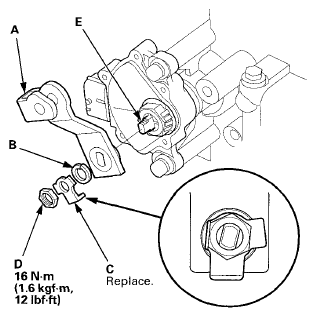

  18. Install the selector control lever (A), the spring washer (B), a new lock washer (C), and the locknut (D) on the control shaft (E). Bend the lock tab of the lock washer against the locknut.
    Fig 8: Selector Control Lever, Spring Washer, Lock Washer, Locknut And Control Shaft With Torque Specifications
    G08087399Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Check the connectors for rust, dirt, or oil. Clean if needed, then connect the connector securely.
  20. Apply molybdenum grease to the center of the bushing on the shift cable end. Attach the shift cable end to the selector control lever, then insert the control pin into the selector control lever hole through the shift cable end, and secure the control pin with the spring clip.
  21. Secure the shift cable bracket with the nuts.
  22. Install the battery base bracket and the battery base.
  23. Install the air cleaner housing and the intake air duct.
  24. Install the auxiliary under-hood fuse/relay box on the battery base, and install the fuse/relay box on its bracket.
  25. Do the battery installation procedure (see INSTALLATION ).
  26. Turn the ignition switch to ON (II). Move the shift lever through all positions, and check the transmission range switch synchronization with the A/T gear position indicator.
  27. Check that the engine starts in P and N, and does not start in any other shift lever position.
  28. Check that the back-up lights come on when the shift lever is in R.
  29. Allow all four wheels to rotate freely, then start the engine, and check the shift lever operation.
