Battery Removal and Installation: Installation

Install the battery (A), then install the battery setting plate (B).

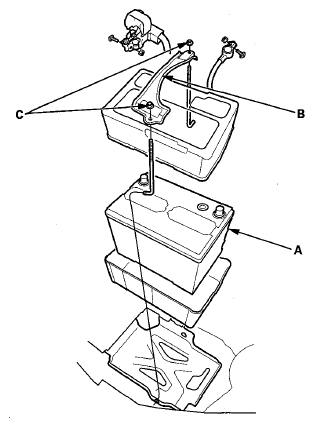

Fig 1: Identifying Battery, Setting Plate And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the two nuts (C) equally until the battery is stable.
NOTE: Do not deform the battery setting plate by tightening the nuts too much.
Do the battery terminal reconnection procedure (see RECONNECTION ).
NOTE: Make sure the battery is installed correctly, and the positive terminal and the negative terminal are not connected in reverse.
