Installation after a collision where the front passenger's airbag deployed

Insert the hooks (A) into the front passenger's airbag housing holes of the new dashboard upper panel.
NOTE:
- Make sure there are no objects between the airbag and the dashboard upper panel.
- Make sure the airbag is fully seated, and make sure the dashboard upper panel is not deformed or damaged after the airbag is in place.
- Make sure the hooks are set properly.

  Fig 1: Identifying Front Passenger's Airbag Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the other hooks (B) into the front passenger's airbag housing holes of the dashboard upper panel.
Install the dashboard upper panel (A) and the front passenger's airbag (B) assembly to the dashboard (C) (see COLUMN BLIND REMOVAL/INSTALLATION ).

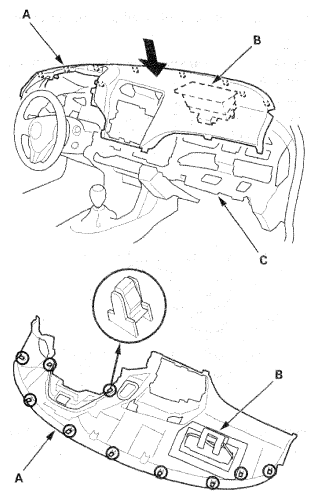

Fig 2: Installing Dashboard Upper Panel And Front Passenger's Airbag Assembly To Dashboard
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new mounting bolts (A), then tighten the bolts to the specified torque.

Fig 3: Front Passenger's Airbag Inflator 4P Connector And Mounting Bolts Wit Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the front passenger's airbag inflator 4P connector (B).
Reinstall the glove box (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Clear any DTCs with the HDS (see HOW TO CLEAR DTCS ).
After installing the front passenger's airbag, confirm proper system operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
