IMA Motor Rotor Position Sensor Removal/Installation

Remove the IMA motor housing (see DRAIN COVER REMOVAL/INSTALLATION ).
Remove the bolts (A, B) and the IMA motor rotor position sensor (C).

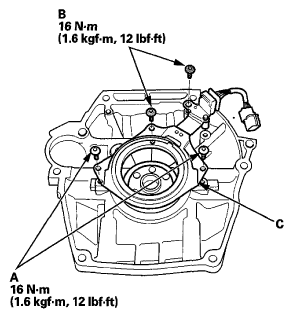

Fig 1: IMA Motor Rotor Position Sensor And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
NOTE: Tighten the side bolts (A) first, then tighten the upper bolts (B).
Do the IMA motor rotor position calibration procedure (see IMA MOTOR ROTOR POSITION CALIBRATION ).
