Drain Cover Removal/Installation

  1. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  2. Remove the drain cover (A).

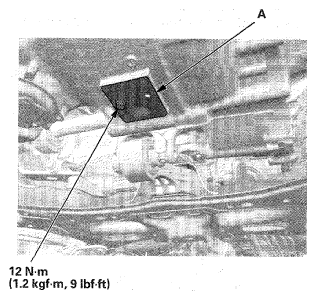

    Fig 1: Drain Cover With Torque Specifications
    G06950570Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal.
