IMA Motor Power Cable Terminal Removal/Installation

Remove the IMA motor housing (see DRAIN COVER REMOVAL/INSTALLATION ).
Remove the terminal cover (A) and the IMA motor power cable terminal (B).

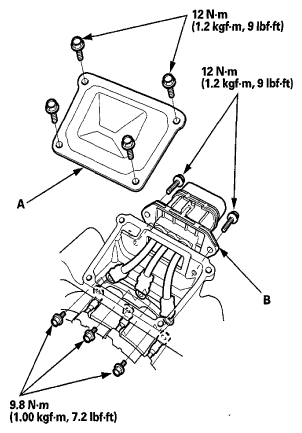

Fig 1: Terminal Cover And IMA Motor Power Terminal With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
Do the IMA motor rotor position calibration procedure (see IMA MOTOR ROTOR POSITION CALIBRATION ).
