Clutch Hose Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE:

Replace the clutch hose if it is twisted or cracked, or if it leaks.
Use fender covers to avoid damaging painted surfaces.
Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid does contact the paint or plastic, wash it off immediately water.

Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
Disconnect the clutch hose (C) from clutch line A and clutch line B.

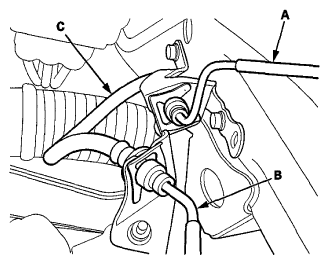

Fig 1: Identifying Clutch Hose Of Clutch Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove and discard the clutch hose clips (A) from the clutch hose (B).

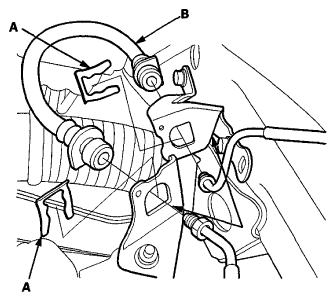

Fig 2: Identifying Clutch Hose Clips Of Clutch Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clutch hose from clutch hose brackets.
Install the clutch hose (A) with the new clutch hose clips (B).

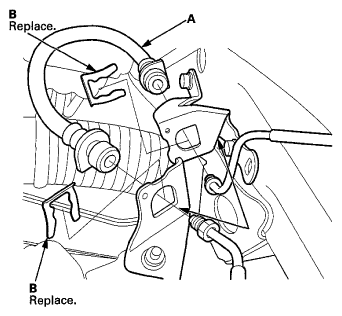

Fig 3: Identifying Clutch Hose With Clutch Hose Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect clutch line A and clutch line B to the clutch hose (C).

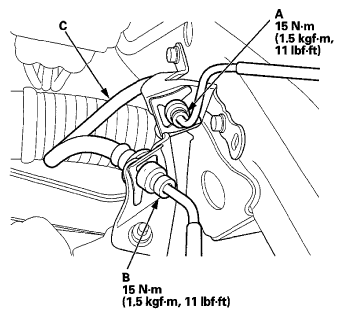

Fig 4: Clutch Line Of Clutch Hose With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Bleed the clutch hydraulic system (see CLUTCH HYDRAULIC SYSTEM BLEEDING ).
Do the following checks:
- Check the clutch hose and line joint for leaks, and tighten if necessary.
- Check the clutch hose for interference and twisting.
- Check the clutch operation.
Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
Test-drive the vehicle.
