Intake Manifold Chamber Removal and Installation: Removal

Remove the engine cover.

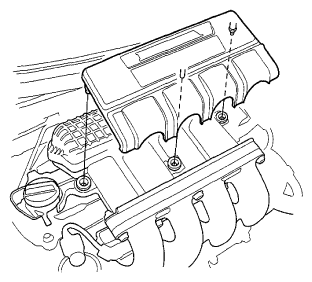

Fig 1: Identifying Engine With Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the engine wire harness connectors and wire harness clamps from the intake manifold chamber.
- Throttle actuator connector
- MAP sensor connector
Disconnect the Brake booster vacuum hose (A).

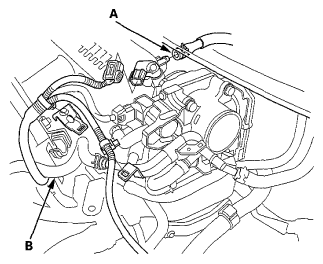

Fig 2: Identifying Brake Booster Vacuum Hose And Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the water bypass hose (B) from the clamp.
Remove the throttle body (A) without disconnecting the water bypass hoses.

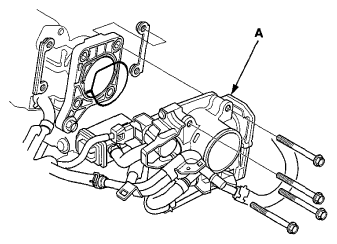

Fig 3: Identifying Throttle Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold bracket mounting bolts.

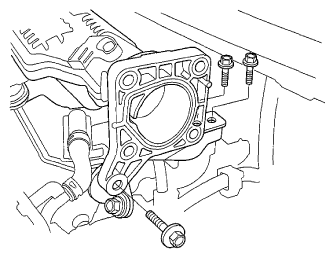

Fig 4: Identifying Intake Manifold Bracket Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold chamber (A) and the intake manifold flange plate (B).

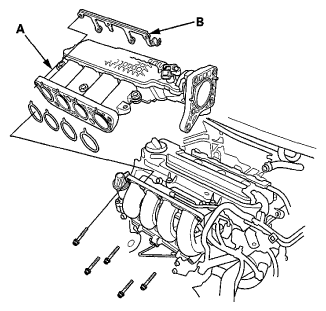

Fig 5: Identifying Intake Manifold Chamber And Intake Manifold Flange Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disassemble the intake manifold chamber.
NOTE: Refer to the EXPLODED VIEW if needed during this procedure.
