Thermostat Housing Removal and Installation: Removal

  1. Drain the engine coolant (see COOLANT REPLACEMENT  ).
  2. Remove the coolant reservoir.

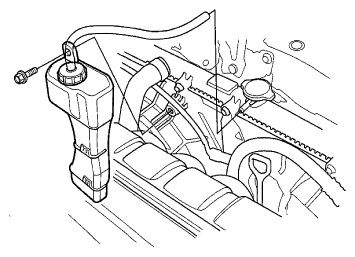

    Fig 1: Identifying Coolant Reservoir
    G06949652Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the harness holder.

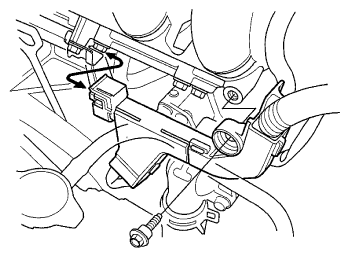

    Fig 2: Identifying Harness Holder
    G06949653Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the thermostat (see THERMOSTAT REPLACEMENT  )
  5. Disconnect the heater hose (A) and the water bypass hoses (B).

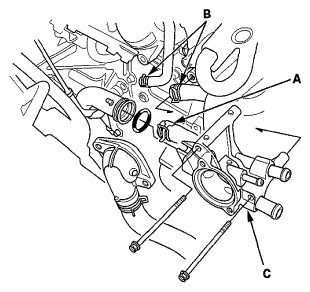

    Fig 3: Identifying Heater Hose And Water Bypass Hoses With Mounting Bolts
    G06949654Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the thermostat housing (C).
