Thermostat Replacement

  1. Drain the engine coolant (see COOLANT REPLACEMENT  ).
  2. Remove the thermostat cover (A), then remove the thermostat (B).

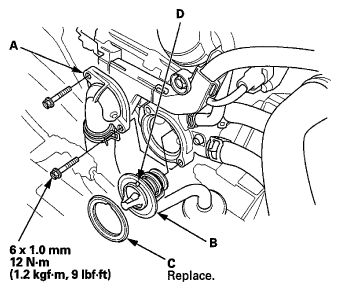

    Fig 1: Thermostat Cover, Thermostat, Rubber Seal And Pin With Torque Specifications
    G06949651Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new thermostat with a new rubber seal (C), then install the thermostat cover.
    NOTE: Install the thermostat with the pin (D) up.
  4. Refill the radiator with engine coolant, and bleed the air from the cooling system (see COOLANT REPLACEMENT  ).
  5. Clean up any spilled engine coolant.
